2017-2023 McLaren 720S Radiator Support Bracket: Collision Damage and Replacement Guide
This guide covers how to inspect, identify, and replace the front radiator support brackets on a McLaren 720S, a common repair after even a minor front-end impact.
- These brackets are almost always replaced due to collision damage, not from wear or age.
- The left (14M1011CP) and right (14M1012CP) brackets are different parts and are not interchangeable.
- Replacement is a complex job that requires the complete removal of the front bumper cover, making it a 4/5 difficulty task best left to professionals.
- When buying used, always verify the part number and inspect carefully for any cracks or warping, especially around the mounting holes.
Symptoms of a Damaged Radiator Support Bracket
Because radiator support brackets are structural, they don't 'fail' from wear and tear like a mechanical part. Instead, they are almost exclusively damaged in front-end collisions. Even a minor impact with a curb, parking block, or road debris can be enough to crack or bend these brackets.
Visible Damage After Impact

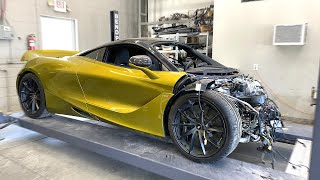

The most obvious symptom is visible damage to the bracket itself. After any front-end impact, no matter how small, you should inspect the area behind the bumper cover. 🎬 Watch: Inspecting a McLaren 720S for hidden front-end damage Look for cracks, bends, or warping in the brackets that hold the radiator assembly. On a McLaren, these parts are often made of a composite or specialized plastic that can show white stress marks or clean fractures.
Radiator or Bumper Misalignment
A damaged bracket can cause the radiator to sag or tilt. This may not be immediately obvious, but it can lead to other components, like the front bumper cover or undertray, appearing misaligned or having uneven panel gaps. If the front bumper doesn't seem to sit right, a bent radiator bracket could be the cause.
Coolant Leaks or Hose Strain
If a bracket fails, the radiator can shift, putting significant strain on the attached coolant hoses. This can cause leaks at the hose connections or, in extreme cases, cause a hose to pull off entirely. If you have an unexplained coolant leak after a minor front impact, a damaged radiator bracket is a likely culprit.
Warning: A damaged radiator support bracket can allow the radiator to vibrate or move excessively, which can lead to a sudden coolant hose failure and rapid overheating, potentially causing severe engine damage.
Known Issues, TSBs, and Recalls
As of mid-2024, there are no specific recalls or Technical Service Bulletins (TSBs) from McLaren or the NHTSA that directly address the front radiator support brackets (14M1011CP, 14M1012CP) for the 2017-2023 McLaren 720S. Recalls for this vehicle have focused on issues like the fuel tank, brake lines, and other mechanical components. Failure of these brackets is almost always the result of collision damage rather than a manufacturing defect.
Buying a Used Radiator Support Bracket
For a part like this, a used OEM bracket is an excellent choice. It provides the exact fit and material properties of a new part at a significantly lower cost. Since these parts don't wear out, a used bracket from an undamaged vehicle is functionally identical to a new one.
Inspection Checklist for Used Brackets:
- Check for Cracks: Carefully inspect the entire bracket, paying close attention to the mounting holes and corners. Even a hairline crack means the part should be rejected.
- Verify Flatness: Lay the bracket on a known flat surface to check for any warping or twisting. A bent bracket will not allow the radiator or bumper to align correctly.
- Confirm Part Numbers: The left and right side brackets are not interchangeable. Verify you are purchasing the correct part for your needs: 14M1011CP for the left (driver's) side and 14M1012CP for the right (passenger's) side.
- Inspect Mounting Points: Ensure all mounting holes are intact and show no signs of being stripped, elongated, or broken.
Pro Tip: Many online listings for used McLaren parts may use generic titles. An eBay listing for part number 14M1012CP was titled "Amplifier Bracket," while another for 14M1011CP was called a "Lower Dash Bracket". Always rely on the OEM part number for identification, not the listing title.
Replacement Overview & Difficulty

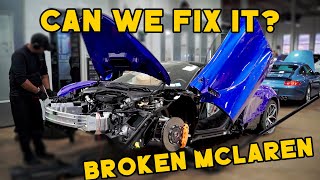

Replacing a radiator support bracket on a McLaren 720S is a complex task primarily because it requires the complete removal of the front bumper cover. 🎬 See this walkthrough of a crashed 720S front-end repair This is not a simple job for a beginner.
The general steps involve:
- Jacking the front of the vehicle and removing the front wheels.
- Removing the front wheel arch liners.
- Removing the front undertray and various access panels in the 'frunk' (front trunk).
- Carefully disconnecting numerous sensors, including parking sensors and ambient air temperature sensors.
- Unbolting the bumper cover from the fenders, chassis, and frunk area.
- Once the bumper is removed, the radiator support brackets are typically accessible and can be unbolted.
Due to the number of delicate and expensive carbon fiber and composite panels involved, the risk of causing cosmetic damage is high. This job is best left to technicians experienced with McLaren or similar exotic cars.
Cost Comparison
| Part/Service | Estimated Cost (USD) |
|---|---|
| New OEM Bracket (Each) | $250 - $450 |
| Used OEM Bracket (Each) | $100 - $200 |
| New Aftermarket | Not Available |
| Shop Labor (Bracket Install Only) | $750 - $1,500 |
Note: The labor cost is almost entirely for the removal and reinstallation of the front bumper cover, which can take 4-6 hours at a specialist shop. The actual time to swap the bracket itself is minimal once access is gained.
Frequently Asked Questions (FAQ)
Are the left and right radiator support brackets the same?
No, they are not. The brackets are mirror images of each other and have unique part numbers. The left (driver's side) is 14M1011CP, and the right (passenger's side) is 14M1012CP.
Do I need to replace these brackets after any front-end accident?
It is highly recommended. They are designed to absorb and distribute impact energy. Even if a bracket doesn't look broken, it may have micro-cracks or be slightly bent, which will compromise the fit of a new bumper and the safety of the radiator mounting.
Can I install this myself?
While technically possible for a very experienced DIY mechanic with the right tools, it is not recommended. Removing the front bumper of a 720S involves many hidden fasteners and delicate electronic connections. The risk of damaging the expensive bumper cover or other carbon fiber components is very high.
Is this the same as the main radiator support or core support?
No. These are smaller positioning brackets. The McLaren 720S is built around a central carbon fiber monocoque tub. The main structural elements that the front suspension and cooling systems mount to are part of a front subframe that bolts to this tub. These brackets are ancillary pieces that attach to that larger structure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 14M1011CP 14M1012CP
Material: Automotive-grade composite/plastic. Fitment: Specific to Left Hand (LH) and Right Hand (RH) sides.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
