2014-2021 Jaguar F-Type Radiator Support Bracket: Collision Damage, Alignment, and Replacement
Learn to spot hidden damage on this critical structural component and ensure your F-Type's front end is properly aligned after a collision.
- Failure is almost always caused by a front-end collision, not wear and tear.
- This is a side-specific part; ensure you order the correct bracket for the left or right side.
- When buying a used bracket, meticulously inspect for hairline cracks, bends, and any signs of prior repair.
- Replacement is a complex job requiring front bumper removal and is best left to a professional body shop.
What Do the Radiator Support Brackets Do?
The radiator support brackets on a 2014-2021 Jaguar F-Type are more than just simple holders for the radiator. They are crucial structural pieces that tie the front end of the car together. Bolted to the vehicle's frame, these brackets provide the primary mounting points for the entire cooling pack, which can include the engine radiator, A/C condenser, and supercharger intercoolers. By securing these components, they prevent damaging vibrations and ensure efficient airflow. Furthermore, they serve as a reference point for aligning the front bumper, headlights, and hood latch, making them critical for proper body panel gaps and function. Any damage to these brackets, typically from a front-end collision, can compromise both the cooling system and the vehicle's structural alignment.
Common Symptoms of a Damaged Radiator Support Bracket
Unlike parts that wear out over time, a radiator support bracket fails almost exclusively due to physical impact. 🎬 Watch a wrecked F-Type rebuild to see front-end damage repair. The symptoms are usually visual and structural. Look for these signs after any front-end collision, no matter how minor it seems.
- Poor Panel Gaps: The spaces between the hood, fenders, and front bumper may be uneven or wider than usual. This is a classic sign that the underlying structure has shifted.
- Misaligned Headlights: If the headlights seem to point too high, too low, or crooked, it could be because their mounting points on the support bracket are bent or broken.
- Difficulty Closing the Hood: A damaged support can misalign the hood latch, making the hood hard to open or close securely.
- Visible Cracks or Bends: Obvious physical damage to the bracket itself is a clear indicator for replacement. Check plastic and composite parts for hairline cracks, especially around bolt holes.
- Radiator Movement or Noise: A loose or vibrating radiator can create rattling or clunking sounds. This indicates the brackets are no longer holding it securely, which can lead to leaks from stressed hoses.
Warning: The Jaguar F-Type received a significant front-end facelift for the 2021 model year. Radiator support components from 2014-2020 models are NOT interchangeable with 2021 models. Always verify the model year before purchasing.
Known Issues, TSBs, and Recalls
As of mid-2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Jaguar or the NHTSA that directly address the radiator support brackets on the 2014-2021 F-Type. Recalls for this vehicle range have focused on issues like seat belt pretensioners, wiring, and ABS control modules. While there are no bulletins for the brackets themselves, it's important to note that the V6 and V8 F-Type models have well-documented issues with other cooling system components, such as brittle plastic coolant pipes and premature water pump failure. 🎬 See how to replace the water pump and coolant pipes. If you are replacing a radiator support bracket due to a collision, it is an ideal time to inspect these related plastic parts for age-related weakness or hidden damage.
Buying a Used Radiator Support Bracket: What to Inspect
A used OEM bracket is often the best choice for repair, as aftermarket options are rare and may not match the precise fitment required for the F-Type's aluminum body. A thorough inspection is critical to avoid installation headaches.
- Verify the Correct Side and Part Number: These brackets are side-specific. Ensure you are buying the correct one for the driver (left) or passenger (right) side. The right-side bracket is often based on part number EX53-16150 (or C2P25238), while the left is EX53-16151 (or C2P25239). Always match the part number from your damaged part if possible.
- Check for Straightness: Lay the bracket on a perfectly flat surface. It should sit flush with no rocking, twisting, or bowing. Even a minor bend can make aligning the headlights and bumper impossible.
- Inspect All Mounting Points: Carefully examine every bolt hole and tab. Look for hairline cracks, especially in plastic sections, and check for elongated or torn holes in the aluminum. These are signs of stress from an impact.
- Reject Any Repaired Parts: Do not purchase a bracket that shows signs of previous repairs like plastic welding, epoxy, glue, or metal patches. These repairs compromise the structural integrity and will not perform correctly in another impact.
- Look for Hidden Damage: Clean the part and inspect it under bright light. Small cracks can be difficult to see but represent a major weak point that will fail under stress.
Replacement Cost and Difficulty

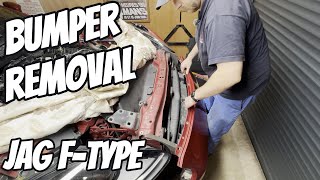

Replacing a radiator support bracket on a Jaguar F-Type is a labor-intensive job best suited for an experienced technician or a body shop. The process requires the complete removal of the front bumper cover, 🎬 Watch this step-by-step guide on removing the front bumper. undertray, and potentially the headlights and cooling pack.
Pro Tip: Since the front bumper must be removed, this is the perfect time to inspect and replace other items like the brittle plastic coolant pipes, water pump, or service the A/C condenser.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Bracket (Single) | $100 - $180 |
| New Aftermarket Bracket | Not commonly available |
| Used OEM Bracket (Single) | $50 - $90 |
| Shop Labor | $300 - $700 |
Cost estimates are based on market research in mid-2026 and can vary by location and supplier. Labor costs assume 2-4 hours of work at a typical independent shop rate.
Frequently Asked Questions (FAQ)
Can I drive with a broken radiator support bracket?
It is not recommended. A broken bracket can allow the radiator to move, potentially causing coolant leaks and overheating. More importantly, it compromises the structural integrity of the front end and can affect headlight aim, which is a safety issue.
Are the left and right radiator support brackets the same part?
No, they are not. The brackets are side-specific and have different part numbers. You must order the correct bracket for the driver's side (left) or passenger's side (right) of the vehicle.
Will a damaged bracket cause my car to overheat?
It can, indirectly. If the bracket is bent badly enough to push the radiator into the cooling fan or if it allows the radiator to shift and stress a coolant hose to the point of leaking, it can lead to a loss of coolant and subsequent overheating.
Is this part the same for all F-Type engines (V6, V8, 4-cylinder)?
While the main brackets are often the same across engine types for a given model year range (pre- or post-facelift), the entire radiator support assembly may have minor differences depending on the cooling requirements of the specific engine. Always verify fitment using a VIN or by matching part numbers from your original part.
Helpful Videos
Technical Specifications
OEM Part Numbers: EX53-16150 C2P25238 EX53-16151 C2P25239
Material: Typically a mix of aluminum and high-strength plastic/composite materials. Side-specific fitment.
