2014-2023 Jeep Cherokee Radiator Shutter: Fixing the U11E9 Code and Shutter Failures

Symptoms of a Failing Radiator Shutter Baffle

When the active grille shutter system on a 2014-2023 Jeep Cherokee has a problem, it will almost always let you know with a warning light on the dashboard. Here are the most common symptoms, from most to least likely.

• Check Engine Light: This is the most frequent symptom. A fault in the shutter system will trigger the Malfunction Indicator Lamp (MIL), also known as the check engine light.
• Diagnostic Trouble Codes (DTCs): Specific codes stored in the vehicle's computer point directly to the AGS system. The most common is U11E9 (Lost Communication with AGS), which usually indicates a wiring or connection problem. Other related codes include P059F (Active Grille Air Shutter Performance/Stuck) and P1D73 (Active Grill Shutter Performance).
• Cooling Fan Running Constantly at High Speed: If the shutters are stuck in the closed position, they block air from reaching the radiator. The vehicle's computer will try to compensate by running the electric cooling fan at full blast, which can sound like a jet engine, especially at idle.
• Engine Overheating or Running Hot: In situations that require maximum cooling, like driving in hot weather or in traffic, shutters that are stuck closed can cause the engine temperature to rise above normal.
• Reduced Fuel Economy: If the shutters are stuck open, the vehicle loses the aerodynamic benefit at highway speeds, which can lead to a noticeable decrease in MPG.
• Slower Engine Warm-Up: In cold weather, shutters stuck in the open position will prevent the engine from warming up quickly, which can also result in weaker performance from the cabin heater.

Known Issues, TSBs, and Recalls

While there are no formal safety recalls for the active grille shutter itself, the system is a well-documented source of issues, primarily related to its wiring.

The Real Problem: Wiring Harness and Connectors

The most common cause of the dreaded U11E9 code is not a failure of the shutter assembly itself, but a problem with the wiring harness that connects to it. The harness is located in a vulnerable position behind the front bumper, where it is exposed to road debris, snow, ice, and water spray. Over time, this can lead to:

• Corroded Connectors: Water intrusion can cause green or white crusty buildup on the connector pins, leading to a loss of communication.
• Pinched or Broken Wires: Impacts from curbs or road debris can damage the wiring. Sometimes the break in a wire is tiny and difficult to see without a close inspection.
• Damage During Service: The check engine light can be triggered if the front bumper was removed for other service and the AGS was not reconnected properly.

Buying a Used Radiator Shutter Baffle

Because the shutter assembly itself is fairly reliable and the wiring is the most common failure point, a used OEM shutter is an excellent, cost-effective option. Here’s what to look for when buying a recycled part.

1. Inspect for Physical Damage: The shutter assembly is often damaged in minor front-end collisions. Carefully check the plastic frame for any cracks. Look at the individual louvers (the horizontal flaps) to ensure none are broken, bent, or missing.
2. Check for Smooth Movement: Gently try to move the louvers by hand. They should all move together smoothly without binding or sticking. If they are jammed, the linkage or motor may be damaged.
3. Examine the Electrical Connector: Look closely at the electrical connector on the shutter assembly. The pins should be clean, straight, and free of any green or white corrosion. A corroded connector is a major red flag.
4. Verify Part Number Compatibility: Several Mopar part numbers exist for this generation of Cherokee. While they may look similar, there can be differences. Match the part number from your original shutter to the used part whenever possible.
5. Why Used OEM is a Smart Choice: A used OEM Mopar shutter is built to the original factory specifications. Given that the electronic motor and mechanical parts are generally robust, a good-condition used unit is likely to last as long as a new one, especially when paired with a verified or repaired wiring harness on your vehicle. It offers a significant cost saving over a new OEM part and often provides better quality and fitment than a cheap aftermarket alternative.

Cost Breakdown

The cost to fix a faulty active grille shutter can vary dramatically depending on whether the issue is the wiring or the assembly itself.

Replacement Overview & Difficulty

Replacing the radiator shutter baffle requires removing the front bumper cover. While it doesn't require highly specialized tools, it is a time-consuming process with many clips and bolts.

• Difficulty Rating: 3 out of 5
• Estimated Time: 2-3 hours for a DIY mechanic.
• General Steps:
  1. Remove plastic push clips and bolts from the top radiator cover.
  2. Remove screws and bolts inside both front wheel wells that secure the bumper to the fenders.
  3. Remove bolts and clips along the bottom edge of the bumper.
  4. Carefully pull the sides of the bumper cover away from the vehicle to release the clips holding it under the headlights.
  5. Before fully removing the bumper, disconnect the main wiring harness for the fog lights and any sensors.
  6. With the bumper removed, the shutter assembly is directly accessible. Unplug its electrical connector and remove the mounting screws (typically 7mm or 8mm).
  7. Installation is the reverse of removal. Getting the bumper cover aligned correctly can be the trickiest part.

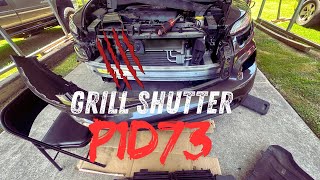

  🎬 Watch a full walkthrough on replacing the active grille shutter.
