2017-2024 Chrysler Pacifica Radiator Shutter: Decoding U11E9 & P059F Codes

Symptoms of a Failing Radiator Shutter Baffle

The most common sign of a problem with the active grille shutter is a Check Engine Light on your dashboard. You may not notice any difference in how the vehicle drives, but the onboard computer has detected a fault. Here are the specific symptoms and codes associated with a failure.

Check Engine Light and Diagnostic Trouble Codes (DTCs)

• Code U11E9 - Lost Communication With Active Grille Shutter: This is a very common code for the Pacifica and indicates an electrical problem. The vehicle's main computer can no longer communicate with the shutter's actuator motor. This is often caused by a corroded connector, a damaged wire, or a failed actuator.
• Code P059F - Active Grille Air Shutter “A” Performance/Stuck: This code means the shutters are not in the position the computer expects them to be. They may be stuck open, stuck closed, or something is preventing their movement.

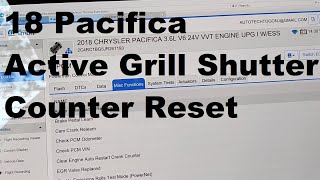

🎬 Watch: How to diagnose and fix a P059F performance code.
• Code P1D73: This is another performance-related code often associated with the active grille shutters.

Other Common Symptoms

• Engine Overheating: If the shutters fail in the closed position, they can block airflow to the radiator, causing the engine to run hot or overheat, especially in stop-and-go traffic.
• Poor Heater Performance: If the shutters get stuck open, the engine may take much longer to reach operating temperature in cold weather. This can lead to poor performance from your cabin heater.
• Radiator Fan Always On: As a fail-safe measure, when the computer detects a shutter fault, it may command the radiator cooling fans to run at full speed continuously to prevent overheating.
• Reduced Fuel Economy: Since a primary function of the shutters is to improve aerodynamics at speed, a malfunctioning unit can lead to a noticeable decrease in gas mileage.
• "Start/Stop Not Ready" Message: Any active Check Engine Light will typically disable the vehicle's Engine Start-Stop (ESS) feature, resulting in this message on the dash.

Known Issues for 2017-2024 Chrysler Pacifica

Several known issues can cause the active grille shutter to fail on these vehicles.

Wiring Harness and Connector Problems

The most frequent point of failure is not the shutter assembly itself, but the electrical connection to it. The connector's location at the front of the vehicle makes it vulnerable to water and road salt, leading to corrosion within the pins. Wires can also become chafed or damaged. Technicians often find that replacing or repairing the wiring pigtail connector is necessary.

Ice and Debris

In cold climates, snow and ice can build up on the shutters and freeze them in place. When the system performs its self-test, it may detect the blockage and set a fault code. Chrysler released a software update for some model years to change the self-test parameters in cold weather to reduce these false errors. Road debris can also physically block or damage the shutter vanes.

Physical Damage

The shutter assembly is made of plastic and can be fragile. Minor front-end impacts or even scraping the front bumper on a steep driveway can crack the frame or break the individual louvers, causing them to jam.

Technical Service Bulletins (TSBs)

Chrysler has issued several TSBs related to this part. TSB 08-071-16 specifically addresses the U11E9 code on 2017 models. Other bulletins address issues with binding shutters on some 2018 models and software updates to prevent false codes in winter conditions.

Buying a Used Radiator Shutter Baffle

A used OEM shutter assembly can be a cost-effective solution, but careful inspection is critical. Given the high failure rate of cheap aftermarket alternatives, a quality used OEM part is often a better choice.

What to Inspect Before Buying

• Check for Physical Damage: Carefully inspect the entire plastic frame for any cracks, especially around the mounting points. Check each individual shutter louver to ensure it is present and not cracked or broken.
• Test the Louver Movement: Gently try to move the louvers by hand. They should all move together smoothly and without binding. If they are stiff, misaligned, or one moves independently of the others, the internal linkage is likely broken.
• Inspect the Actuator and Connector: Look at the actuator motor for any signs of cracking or damage. Most importantly, inspect the electrical connector pins on the actuator. They should be clean, straight, and free of any green or white corrosion.
• Verify Compatibility: Due to the wiring pinout change during the 2018 model year, it is crucial to match the part to your vehicle's year. A part from a 2019+ vehicle will likely require wiring modification to work on a 2017 or early 2018 model. When possible, get the part from a vehicle with the same model year as yours.

Replacement and Cost

Replacing the active grille shutter requires removing the front bumper cover to access the part. While this sounds intimidating, it is a manageable job for a DIYer 🎬 Watch this step-by-step guide on replacing the shutter assembly. with basic tools and patience.

After installation, the system should perform a self-calibration test when the vehicle is started. In some cases, a scan tool may be needed to perform a reset procedure and clear the fault codes.
