2020-2026 Corvette Radiator Shutter: Decoding P059F and the Stingray vs. Z06 Trap
Your definitive guide to diagnosing active grille shutter faults, inspecting a used assembly, and avoiding costly compatibility mistakes on C8 Corvettes.
- Compatibility is the biggest trap: Shutter assemblies for the standard Stingray are NOT interchangeable with the wider Z06 and E-Ray models.
- The most common sign of failure is a Check Engine Light with code P059F, often caused by physical obstruction (like ice) or impact damage.
- Replacement is an advanced job that requires the complete removal of the front bumper cover, a process that takes 2-4 hours.
- When buying a used assembly, prioritize parts with no cracks, intact mounting tabs, and a smoothly operating linkage.
Symptoms of a Failing Radiator Shutter Baffle
A problem with the C8 Corvette's active grille shutter will almost always let you know with a warning on the dashboard. Because the system is actively monitored by the Engine Control Module (ECM), any malfunction is flagged immediately.
- Check Engine Light: This is the most common symptom. The system will store a Diagnostic Trouble Code (DTC), most frequently P059F - Active Grille Air Shutter Performance/Stuck Off. You may also see communication codes like U0284 or U0285.
- Shutters Visibly Stuck: A visual inspection may show the shutter vanes are stuck in either the open or closed position and do not move during the vehicle's startup sequence.
- Engine Overheating at Low Speeds: If the shutters fail in the closed position, they can restrict airflow to the radiators. This can cause the engine to run hotter than normal or overheat in stop-and-go traffic.
- Clicking or Grinding Noises: You might hear mechanical sounds from the front of the car as the actuator motor struggles to move a damaged or obstructed shutter assembly.
- Reduced Fuel Economy: If the shutters are stuck permanently open, the car's aerodynamics are slightly compromised at highway speeds, which may lead to a small decrease in fuel efficiency.
Pro Tip: In cold climates, snow and ice buildup can freeze the shutter vanes in place and trigger a P059F code. Before assuming the part has failed, try parking the car in a warm garage for a few hours to melt any potential obstructions. Clear the code and see if it returns.
Buying a Used C8 Corvette Shutter Baffle: What to Inspect
Collision damage is the most common reason for these assemblies to be replaced. Buying a used OEM unit is often the only practical choice, as complex aftermarket versions are not widely available. Careful inspection is key to getting a good part.
Warning: The front bodywork of the standard Corvette Stingray is a different width than the wider Z06 and E-Ray models. The front bumper fascias, and therefore the shutter baffle assemblies that fit behind them, are NOT INTERCHANGEABLE between a standard Stingray and a Z06/E-Ray. Always verify the exact model the part was removed from before purchasing.
Physical Inspection Checklist
- Check for Cracks and Impact Damage: Look over the entire plastic frame for any signs of cracks, stress marks (white-colored lines in the plastic), or deep scrapes from a front-end collision.
- Inspect All Mounting Tabs: Carefully check every mounting point and clip. These are critical for a secure, rattle-free installation. A used part with broken tabs should be avoided.
- Examine the Shutter Vanes and Linkage: Ensure all the horizontal vanes (louvers) are present and straight. Gently try to move one; the others should move with it smoothly. If they are disconnected, binding, or one is missing, the part is faulty.
- Inspect the Actuator Motor: Look at the small electric motor that drives the shutters. Check its plastic housing for cracks and ensure the electrical connector pins are straight and free of corrosion. The wiring pigtail should be intact with no cuts or exposed wires.
- Verify the Part Number: If possible, match the part number on the used assembly to the number required for your specific vehicle trim and year.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of mid-2026, there are no specific recalls or Technical Service Bulletins (TSBs) issued by General Motors that directly address failures of the active grille shutter assembly on the 2020-2026 C8 Corvette. Most issues are related to physical damage, obstruction, or isolated component failure. Other recalls for the C8 platform, such as for turn signal software or fuel spillage on Z06 models, do not pertain to this part.
Replacement Difficulty and Cost

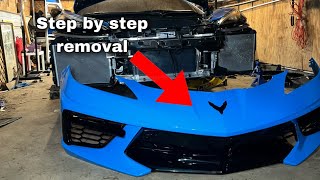

Replacing the radiator shutter baffle is an advanced DIY job primarily because it requires the complete removal of the front bumper fascia. 🎬 Watch: Step-by-step C8 Corvette front bumper removal guide While not technically complex, the process is labor-intensive and requires great care to avoid scratching paint or breaking plastic clips.
- Installation Difficulty: 4 out of 5 (Advanced)
- Estimated Time: 2-4 hours
- DIY Feasible: Yes, for experienced individuals comfortable with body panel removal.
The process involves jacking up the front of the car, removing dozens of T15 Torx and 7mm bolts from the wheel wells and undertray, disconnecting sensor wiring, and carefully unclipping the bumper cover from the fenders and headlights. Having a second person to help lift the bumper off and guide it back on is highly recommended to prevent damage.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $300 - $500 |
| New Aftermarket | Rare / Not Widely Available |
| Used OEM | $150 - $300 |
| Shop Labor | $300 - $550 |
Frequently Asked Questions (FAQ)
Can I drive my Corvette with a broken radiator shutter?
Yes, but it's not recommended long-term. If the shutter is stuck closed, you risk overheating in traffic. If it's stuck open, it's less of an immediate risk but will leave a persistent Check Engine Light on, which will cause you to fail an emissions inspection.
Will a broken active grille shutter cause my car to overheat?
It can. If the shutters are stuck in the closed position, they block crucial airflow to the radiators. While you may be fine at highway speeds where air is forced in, you are at a higher risk of overheating in slow-moving or stop-and-go traffic.
Do I need to program the car after replacing the shutter assembly?
In most cases, it is a plug-and-play replacement. However, some owners have reported that a Powertrain Control Module (PCM) re-flash or calibration may be required after installing a new actuator to clear communication codes. It is best to clear all codes after installation and see if any return before seeking a re-flash.
What's the main difference between the Stingray and Z06/E-Ray shutter baffles?
The primary difference is size and mounting points. The Z06 and E-Ray models are wider than the standard Stingray and have a different front fascia design. The shutter assemblies are shaped specifically to fit behind these unique bumpers and are not cross-compatible.
OEM Part Numbers
The following part numbers are associated with the front-end components of the 2020-2026 Corvette. Note that some of these numbers refer to the bumper fascia or fenders, not the shutter assembly itself. It is critical to verify the exact part number for the Active Grille Shutter that matches your vehicle's specific model (Stingray, Z06, E-Ray) and year before ordering.
| Part Number | Known As |
|---|---|
| 84824879 | Front Fender Assembly |
| 84824880 | Front Fender Assembly |
| 84824882 | Front Fender Assembly |
| 84925599 | Front Bumper Fascia |
| 84986961 | Front Bumper Fascia Assembly |
| 84986963 | Front Bumper Fascia Assembly |
| 87865980 | Front Bumper Fascia |
Helpful Videos
Technical Specifications
OEM Part Numbers: 84824879 84824880 84824882 84925599 84986961 84986963 87865980
Electronically controlled by a 12V actuator motor via LIN-Bus communication with the Engine Control Module (ECM).
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
