Pathfinder, QX60, Frontier & Xterra Radiator Guide (2011-2025): Leaks, SMOD & Cooling Fan Failures

Symptoms of a Failing Radiator

A bad radiator can cause a range of symptoms, from subtle noises to catastrophic engine failure. Knowing the signs can help you prevent expensive damage.

Engine Overheating

The most obvious sign is your engine's temperature gauge climbing into the red zone. This means the cooling system can no longer manage the engine's heat. You might also see a dashboard warning light, notice steam or smoke from under the hood, experience poor acceleration, or smell a burning odor. Overheating, even once, can cause permanent engine damage like a warped cylinder head.

Visible Coolant Leaks

If you see bright green, pink, or orange fluid pooling under the front of your vehicle, you likely have a coolant leak. Coolant has a distinctively sweet smell. Leaks can come from cracks in the radiator's plastic end tanks, corroded aluminum core, or loose hose connections. Sometimes a slow leak will evaporate before it hits the ground, leaving behind crusty, pastel-colored deposits on the radiator itself.

Discolored or Sludgy Coolant

Healthy coolant should be a bright, translucent color. If you check the coolant overflow reservoir and the fluid looks rusty, oily, or thick like sludge, it's a sign of internal corrosion or contamination. In the Nissan Frontier, Xterra, and older Pathfinders, this can be a sign of the dreaded "Strawberry Milkshake of Death" (SMOD), where transmission fluid has mixed with the coolant.

Unusual Noises

Gurgling or bubbling sounds from the front of the engine can indicate air pockets in the cooling system, often caused by a leak or an improper coolant fill. A hissing sound can be caused by steam escaping a small crack. For the Pathfinder and QX60, a loud whirring, grinding, or rattling noise is a classic symptom of a failing radiator cooling fan motor, not the radiator itself, but it leads to overheating.

Vehicle-Specific Known Issues & Recalls

While these vehicles share parts, they suffer from two very different common failures. It is critical to understand which issue applies to your vehicle.

Frontier (2011-2019), Xterra (2011-2015) & Pathfinder (2011-2012)

• Affected Years: The SMOD defect was a widespread, well-documented problem primarily affecting 2005-2010 models.
• 2011+ Models: The risk for models from 2011 onward is considered extremely low. Nissan introduced a redesigned radiator to fix the problem. Forum communities and TSB archives indicate that radiator part number 21460-9CA0E, used in 2011-2015 models, has no known SMOD cases. While some owners of 2011 models express concern, reports of SMOD in these years are virtually nonexistent, and those that do appear are often traced back to an older, faulty radiator being installed as a replacement part.
• Recalls/TSBs: Nissan never issued a formal recall. They did offer a warranty extension for the 2005-2010 models, but that has since expired.

Pathfinder (2013-2025), INFINITI JX35 (2013) & QX60 (2014-2025)

• Symptoms: A loud whirring, grinding, rattling, or clacking sound from the front of the engine that is present when the fans are supposed to be running. You may also notice the A/C blows warm air when the vehicle is not moving.
• Affected Years: This is a very common failure on 2013-2017 Pathfinders and 2014-2017 QX60s. A class-action lawsuit was filed alleging Nissan knew of the defect. While less common, the issue can still occur on later models.
• Recalls/TSBs: No recall has been issued for the fan assembly. However, a voluntary service campaign (TSB NTB18-066) was issued for some 2017 Pathfinders to drain and refill the engine coolant due to a separate issue. Additionally, some 2022 Pathfinders were part of a campaign (PC899) for a potential A/C condenser pipe leak.

Buying a Used Radiator: What to Inspect

A used OEM radiator can be a reliable, cost-effective alternative to expensive new parts, especially when compared to cheap, poor-fitting aftermarket units. However, careful inspection is essential.

• Check the Part Number (Crucial for Frontier/Xterra): If buying for a Frontier, Xterra, or 2011-2012 Pathfinder, verify the part number on the sticker on top of the radiator. Ensure it is a revised, "safe" part number like 21460-9CA0E to avoid installing a SMOD-prone unit. Do not buy a used radiator from a 2005-2010 model unless you plan to bypass the internal cooler.

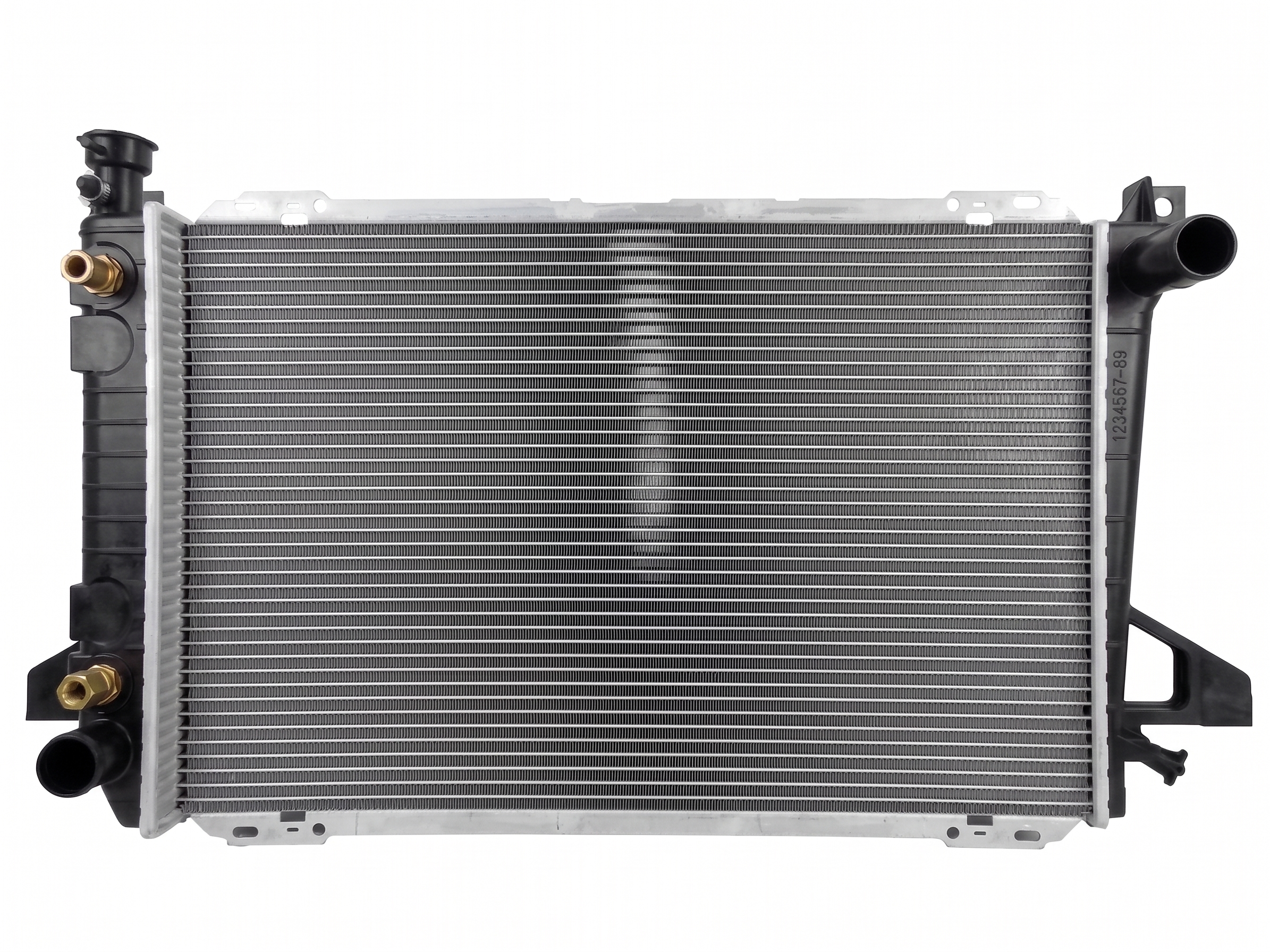

• Inspect Plastic End Tanks: The black plastic tanks on the sides (or top and bottom) are the most common failure point. Look for hairline cracks, spiderwebbing, or any signs of plastic fatigue. Pay close attention to the areas where the hoses connect and where the tanks are crimped to the aluminum core.
• Examine the Core and Fins: Look for white, crusty residue, which indicates a past leak. Check for significant physical damage or large areas of bent cooling fins. While a few bent fins are normal, major damage can restrict airflow and reduce cooling efficiency.
• Look Inside the Ports: Peer into the inlet and outlet ports. Look for heavy corrosion, rust-colored buildup, or an oily, sludgy film. A clean interior suggests a well-maintained cooling system.
• Check Cooler Fittings: On radiators with integrated transmission coolers, inspect the threaded fittings. Ensure they are not stripped, cross-threaded, or cracked.
• Mileage vs. Condition: For a radiator, physical condition is more important than mileage. A radiator from a 100,000-mile vehicle that used proper coolant can be in better shape than one from a 50,000-mile vehicle that was neglected or in a front-end collision. Avoid parts with visible signs of aging like brittle-looking plastic, regardless of mileage.

Replacement Overview & Related Parts

Replacing the radiator is a moderately difficult job that can be done by a skilled DIYer on the Frontier and Xterra. However, on the Pathfinder, JX35, and QX60, the procedure is more complex.

Related Parts to Replace

It is highly recommended to replace these items at the same time as the radiator:

• Radiator Hoses: The upper and lower radiator hoses can become soft, brittle, or swollen over time. Replacing them is inexpensive and easy to do while the system is drained.
• Thermostat: This is another critical and inexpensive cooling system component. Replacing it while the radiator is out is wise preventative maintenance.
• Coolant: Always refill the system with fresh, new coolant that meets Nissan/Infiniti specifications (typically Nissan Long Life Blue Antifreeze/Coolant). Never reuse old coolant.
• Radiator Cap: A new cap ensures the system holds pressure correctly. It's a cheap and critical part.
