2003-2016 Mitsubishi Outlander Quarter Panel: Rust, Recalls, and Replacement Guide

Symptoms of Quarter Panel Failure

Quarter panels don't have mechanical or electrical functions, so their failure is purely physical. The most common symptoms are related to corrosion or collision damage.

• Visible Rust or Bubbling Paint: This is the most common sign of failure. Rust often starts in the wheel arch lip, where moisture and salt collect, or around trim mounting holes. You may see small bubbles under the paint, which eventually break to reveal rust.
• Dents and Creases: Damage from collisions, parking lot incidents, or impacts from road debris will be visually obvious.
• Panel Misalignment: Poor gaps between the quarter panel and the trunk, taillight, or rear door can indicate previous low-quality repair work or underlying structural damage.
• Water Leaks in Trunk: If rust creates a hole through the panel or a seam sealer fails, water can leak into the trunk area, leading to mold, mildew, and further corrosion.
• Wind Noise: In severe cases of damage or rust, the panel may separate slightly from its mounting points, creating noise at highway speeds.

Critical: Identifying Your Outlander Generation

The 2003-2016 model years span three distinct generations of the Mitsubishi Outlander. Body panels are not interchangeable between them. Using a part from the wrong generation will result in incorrect fitment. Before purchasing, positively identify your vehicle.

First Generation: 2003–2006

Based on the Mitsubishi Airtrek, this generation is a smaller, more wagon-like SUV. It features a distinct split grille and more rounded styling compared to later models. These early models are particularly susceptible to rust in regions where road salt is used.

Second Generation: 2007–2013

This generation marked a significant redesign with a larger body and more aggressive, angular styling. It introduced a V6 engine option and an available third-row seat. These models are also noted in a major corrosion-related recall.

Third Generation: 2014–2016

The third generation features a more streamlined and modern design. Crucially, Mitsubishi performed a major facelift for the 2016 model year, which significantly changed the front and rear styling. This means a quarter panel for a 2014 or 2015 Outlander will likely not fit a 2016 facelift model, and vice-versa. You must verify which version of the 2016 you own before ordering.

Buying a Used Quarter Panel for Your Outlander: A Checklist

A used OEM quarter panel is often a better choice than a new aftermarket one due to superior metal thickness, better fit, and correct stamping. However, careful inspection is key.

1. Confirm the Generation and Year: Double-check that the donor vehicle's year and generation match yours. Pay special attention to the 2016 pre-facelift and facelift split.
2. Inspect for Rust Thoroughly: The most important check. Look for any paint bubbling on the outer surface. Pay close attention to the inner wheel arch lip, the bottom edge behind the bumper, and any areas where trim was mounted. Run your hand along the inside lip to feel for roughness or flaking metal.
3. Check for Previous Repairs: Look for signs of body filler (Bondo). A small magnet can help; it won't stick to areas with thick filler. Check the back side of the panel for any non-factory welds, grinder marks, or uneven texture that indicates a past repair.
4. Verify Sunroof Option (2007-2013): On second-generation models, the quarter panel structure can differ between vehicles with and without a factory sunroof. Part number 5301B853, for example, is specifically for models without a sunroof. Confirm the donor vehicle had the same roof configuration as yours.
5. Check for Fender Flare Holes: If your Outlander has factory fender flares, you need a quarter panel with the correct mounting holes. A panel from a non-flare model will not have these holes, requiring drilling that can compromise rust proofing if not done correctly.
6. Assess the Overall Condition: Look for any dents, dings, or deep scratches. While the panel will be repainted, significant damage may be a sign of a harder impact that could have stressed the metal.

Known Issues, Recalls, and Service Bulletins

While there are no recalls specifically for the quarter panels, several major corrosion recalls point to a high risk of rust on the underbody and structure of first and second-generation Outlanders, especially in the "Salt Belt" states.

• NHTSA Recall 16V-458 (SR-16-003): This critical safety recall affects 2003-2006 Outlanders and 2007-2013 V6 Outlanders. The front crossmember can corrode due to road salt, potentially leading to the detachment of a lower control arm and loss of vehicle control. The existence of this recall indicates that vehicles from these years, particularly from northern climates, are highly prone to structural rust. A buyer of a used quarter panel from one of these vehicles should be extremely cautious about overall body corrosion.
• NHTSA Recall 20V-279: This recall expands upon the previous one, covering front suspension crossmember corrosion on 2008-2013 Outlanders.
• NHTSA Recall for Liftgate Struts: Affecting 2014-2020 Outlanders, this recall is for corroding liftgate gas springs that can fail. While not the quarter panel, it shows that even the third generation can have corrosion-related component failures.

Quarter Panel Replacement: Cost and Difficulty

Installation Overview & Difficulty

Replacing a quarter panel is a major auto body procedure and is not a DIY-friendly task. It is rated 5 out of 5 on the difficulty scale.

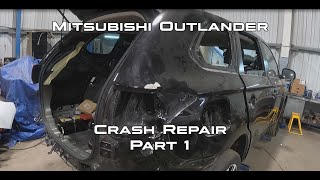

The process involves precisely drilling out dozens of factory spot welds, cutting the panel along structural pillars (like the C-pillar and rocker panel), and removing the old panel without damaging the underlying structure. The new panel must then be fitted, clamped, and welded into place using both spot welds and stitch welds. Finally, the welded seams are ground down, sealed, and the entire panel is prepped, primed, and painted to match the vehicle. This requires specialized tools like spot weld cutters, 🎬 Watch: Professional quarter panel replacement and crash repair MIG welders, and professional painting equipment.

Cost Breakdown

The cost can vary significantly based on labor rates and the extent of any hidden rust repair needed. Labor is the largest expense, often involving 10-20 hours of work.

OEM Part Numbers

This list includes known OEM part numbers. The same part may be sold under different numbers over time. Always verify fitment with the seller using your vehicle's VIN.

• First Generation (2003-2006): MN133436, MN133594
• Second Generation (2007-2013): 5301B853 (Left, without sunroof), 5301B854, 5301B855, 5301B856
• Third Generation (2014-2020): 5301G844 (Right, fits 2015-2020, replaces 5301G458), 5301G843 (Left), 5301H593 (Lower Pillar Extension)
