2004-2005 GMC Envoy XUV Quarter Panel: Fitment, Rust, and Replacement Facts
This guide covers the unique challenges of sourcing and replacing the quarter panel on the rare 2004-2005 GMC Envoy XUV, including the critical frame rust issue you must check for.
- This quarter panel fits ONLY the 2004-2005 GMC Envoy XUV. Parts from a standard Envoy or Envoy XL will not fit.
- Before buying or repairing an Envoy XUV, you MUST inspect the frame for severe rust at the rear control arm mounts, a common and critical safety issue for this platform.
- Replacement is a major bodywork job requiring cutting and welding; it is not a DIY project for most people.
- New OEM and aftermarket panels are generally unavailable, making a used OEM panel from a salvage yard the only viable option.
Symptoms of a Damaged Quarter Panel
As a static body panel, a quarter panel does not 'fail' like a mechanical part. Instead, symptoms are always visual and related to physical damage or corrosion. You should inspect your quarter panel if you notice any of the following:
- Rust and Corrosion: This is the most common issue on older vehicles. Look for bubbling paint, brown or orange patches, or outright holes in the metal. Pay close attention to the wheel arch lip and the bottom edge of the panel where moisture and road salt collect.
- Dents and Dings: Damage from minor impacts like parking lot bumps, shopping carts, or sideswipes. While cosmetic, large dents can break the paint and lead to rust.
- Collision Damage: More severe damage from an accident, such as crumpled metal, deep scratches, or misalignment of the panel. This can affect the vehicle's structural integrity and the alignment of the tailgate or rear doors.

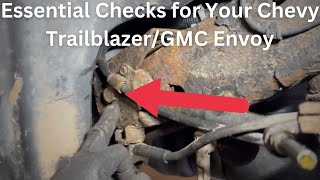

Critical Warning: Check for Frame Rust Before All Else. All 2002-2009 Envoy and Trailblazer platform vehicles are highly susceptible to severe frame rust, especially where the rear control arms mount to the frame. This can cause the rear axle to become unstable, creating a critical safety hazard. Before buying an Envoy XUV or investing in body repairs, you MUST have the frame inspected by a professional. 🎬 Watch: Essential frame and safety checks for your Envoy A rusted-out frame can make the vehicle unsafe to drive and not worth repairing.
Buying a Used 2004-2005 Envoy XUV Quarter Panel
Due to the low production numbers of the Envoy XUV, new OEM panels are generally discontinued and aftermarket options are virtually nonexistent. This makes finding a clean, used OEM panel from a salvage vehicle the only practical option.
Compatibility is Everything: XUV ONLY
This is the most important rule: A quarter panel from a standard GMC Envoy or an Envoy XL will NOT fit your Envoy XUV. The body structure of the XUV is completely different from the rear doors back to accommodate the retractable roof and mid-gate. You must source a panel specifically from a 2004 or 2005 GMC Envoy XUV.
Physical Inspection Checklist
When evaluating a used quarter panel, perform these checks:
- Check for Hidden Filler (Bondo): Bring a small magnet and slide it over the entire surface of the panel. 🎬 See how to detect hidden Bondo using a magnet If the magnet fails to stick in certain areas, it indicates the presence of thick body filler from a previous repair. A small amount of filler is acceptable for minor dings, but large areas of filler can crack and fail over time.
- Inspect for Rust: Check the front and back of the panel. Pay special attention to the inner wheel well lip and the bottom edge, as this is where rust starts. Surface rust can be treated, but avoid any panels with holes or deep, flaky rust.
- Look for Dents and Creases: Minor dings can be repaired, but deep creases in the metal are difficult to fix properly. A panel with severe creases may have stretched, weakened metal.
- Verify Intact Edges: Ensure the edges where the panel was cut from the donor vehicle are as long as possible. This gives the body shop more material to work with when fitting it to your vehicle.
Pro Tip: If possible, buy a panel that is the same color as your vehicle. Even though the panel will need professional blending, starting with the same color can sometimes simplify the painting process and reduce the final cost.
Replacement Overview and Difficulty
Replacing a quarter panel is a major undertaking and should not be attempted by a DIY mechanic without significant bodywork and welding experience. It is rated 5 out of 5 on a difficulty scale.
The process involves:
- Disassembly: Removing the rear bumper, tail light, interior trim panels, and sometimes the quarter glass.
- Cutting: The old, damaged panel must be cut off the vehicle's body. This requires specialized cutting tools to avoid damaging the underlying structure.
- Drilling Spot Welds: The panel is attached with dozens of factory spot welds along the door jamb, roof line, and tailgate opening. Each of these must be drilled out.
- Fitting and Welding: The new panel is carefully fitted, clamped into place, and then welded to the vehicle's structure using a combination of spot welds and stitch welds.
- Finishing: The welded seams are ground smooth, a thin layer of body filler is applied to perfect the surface, and the entire area is primed, sealed, painted, and clear-coated to match the rest of the vehicle.
This is a job for a professional auto body shop. Improper replacement can compromise the vehicle's structural integrity, lead to rust, and result in poor panel alignment.
Cost to Replace an Envoy XUV Quarter Panel
Costs can vary significantly by location and the extent of any underlying damage. Since new and aftermarket parts are not readily available, the part cost is determined by the used market.
| Item | Estimated Cost |
|---|---|
| New OEM Part | Discontinued / Not Available |
| New Aftermarket Part | Not Available |
| Used OEM Part | $250 - $500 (Part only, from salvage) |
| Shop Labor & Materials | $1,000 - $2,500+ (Includes welding, finishing, and painting) |
| Total Estimated Cost | $1,250 - $3,000+ |
Frequently Asked Questions (FAQ)
Will a quarter panel from a regular 2004 GMC Envoy fit my Envoy XUV?
No, absolutely not. The Envoy XUV has a unique body structure from the rear doors backward. You must use a quarter panel specifically from a 2004-2005 Envoy XUV.
Is replacing a quarter panel a good DIY project?
No. This is a professional-level job that requires specialized tools for cutting, welding, and painting. An improper installation can lead to serious structural and safety issues. We rate it a 5/5 for difficulty.
Can I just repair a small rusted area instead of replacing the whole panel?
For small, localized rust spots, it is possible for a body shop to cut out the bad metal and weld in a small patch panel. 🎬 Watch: How to install a quarter panel patch However, if the rust is widespread, especially along the wheel arch, replacement is often the better long-term solution.
My quarter panel is fine, but I was warned about frame rust. What should I do?

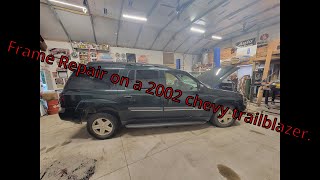

Immediately have your vehicle inspected by a trusted mechanic, specifically asking them to check the frame at the rear upper and lower control arm mounts. If significant rust is found, you will need to get a quote for repair, which often involves welding in reinforcement kits. This is a critical safety issue that should not be ignored.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10355896 88980236 15113942
Material: Steel. Fitment: Welded-on. Note: Part numbers are for reference and may be discontinued; verification by VIN and model (Envoy XUV) is essential.
