2017-2025 Mazda CX-5 Quarter Glass: Wind Noise, Leaks, and Replacement Guide
This guide covers the common failure symptoms, replacement costs, and what to look for when buying a used quarter glass for your 2017-2025 Mazda CX-5.
- There are no common factory defects, recalls, or TSBs related to the quarter glass on the 2017-2025 Mazda CX-5.
- When buying a used quarter glass, the most important checks are for chips along the edges and ensuring the factory tint matches your vehicle.
- Failures are almost always due to impact or a deteriorating seal, leading to wind noise and water leaks.
- Professional installation is recommended to ensure a proper, leak-proof seal, as DIY errors can lead to bigger problems.
Symptoms of Quarter Glass Failure
Failure of the quarter glass on a Mazda CX-5 is typically easy to spot. Unlike mechanical parts, the symptoms are almost always visual or audible. The most common issues stem from either direct impact or a failure of the adhesive seal around the glass.
1. Visible Damage
The most obvious symptom is physical damage to the glass itself. This can range from small chips or cracks to complete shattering. This is almost always caused by an external impact from road debris, an accident, or vandalism. Even a small chip can spread over time due to temperature changes and vibrations from driving.
2. Wind Noise
A whistling, humming, or roaring sound coming from the rear of the vehicle at higher speeds is a strong indicator that the seal around the quarter glass has failed. When the adhesive bond weakens, it creates small gaps that allow air to be forced through, creating noise that can be very noticeable inside the cabin.
3. Water Leaks
If you notice moisture, water stains, or a musty smell on the interior trim panel below the quarter glass or in the cargo area, a failed seal is the likely culprit. A compromised seal allows rainwater and moisture from car washes to seep into the vehicle, potentially leading to mold growth or damage to interior components over time.
Buying a Used 2017-2025 CX-5 Quarter Glass
Purchasing a used OEM quarter glass is an excellent way to save money without sacrificing quality, as factory glass is made to a higher standard than many aftermarket alternatives. However, a careful inspection is essential to ensure you get a good part.
What to Check Before You Buy
- Inspect for Scratches and Chips: Carefully examine the entire surface of the glass for any scratches, chips, or cracks. Pay special attention to the edges, as this is where small chips can occur during removal from the donor vehicle. Even minor damage can compromise the glass's integrity.
- Verify the Tint: Mazda CX-5 models often come with factory privacy tint on the rear windows. Hold the used glass up to a light source and compare it to the existing glass on your vehicle to ensure the tint level is a perfect match.
- Check for the OEM Logo: Look for the small Mazda logo and other manufacturer markings etched into a corner of the glass. This confirms you are buying a genuine factory part that will fit correctly and match the quality of your other windows.
- Examine the Attached Molding: While the main adhesive will be new, sometimes the glass comes with attached rubber or plastic trim. Inspect this for any signs of dry rot, cracking, or tearing. A damaged trim piece can complicate installation or lead to a poor seal.
- Ask About the Donor Vehicle: If possible, find out if the donor vehicle was involved in a major accident. Glass from a vehicle with heavy rear-end damage could have hidden stress fractures that are not visible to the naked eye.
Pro Tip: Most quarter glass is made of tempered glass, which is designed to shatter into small, granular pieces upon a significant impact. If you are buying from a salvage yard, avoid any glass that shows signs of stress fractures (thin, spiderweb-like lines) near the edges.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) issued by Mazda or the National Highway Traffic Safety Administration (NHTSA) for the quarter glass on the 2017-2025 Mazda CX-5. While the vehicle has been subject to recalls for other components like the fuel pump and powertrain software, the body glass has proven to be reliable with no known common defects.
Replacement Cost and Difficulty
Replacing the quarter glass is a moderately difficult job that requires precision and the right materials to avoid future leaks.
Installation Difficulty: 3/5
The process involves removing interior trim panels, carefully cutting the old glass out of the body, cleaning the frame of all old adhesive, applying a special primer, and then using automotive urethane to bond the new glass in place. The biggest risks for a DIYer are scratching the paint while cutting the old glass out or creating an incomplete seal that leads to wind noise and water leaks.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $115 - $165 |
| New Aftermarket | $70 - $120 (Varies) |
| Used OEM | $35 - $75 |
| Shop Labor | $150 - $250 |
Frequently Asked Questions (FAQ)
Is the left and right quarter glass the same?
No, the left (driver-side) and right (passenger-side) quarter glass panels are specific to their side and are not interchangeable.
Can I replace the quarter glass myself?
While it is possible for an experienced DIY mechanic, it is generally recommended to have auto glass professionally installed. A proper seal is critical to prevent leaks and wind noise. The cost of professional installation is often worth the peace of mind.
Does the quarter glass require any calibration?
No. Unlike the front windshield on models with advanced driver-assistance systems (ADAS), the quarter glass contains no sensors or cameras and does not require any electronic calibration after replacement.
Is it safe to drive with a broken quarter glass?
It is not recommended. A broken or missing quarter glass exposes your vehicle's interior to the elements and makes it an easy target for theft. It can also be a safety hazard, as shattered tempered glass can leave small, hard-to-see pieces in the vehicle.
Technical Specifications

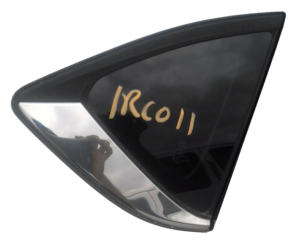

OEM Part Numbers: KB7W-62-950A KB7W62950A
Tempered safety glass, available with factory privacy tint.
