Jeep Wrangler (2019-2024) ABS Wheel Speed Sensor Replacement Guide
Seeing ABS, Traction Control, and Service 4WD lights? Your wheel speed sensor is the likely culprit.
- Multiple warning lights (ABS, ESC, Traction Control) often point to a single bad wheel speed sensor.
- Before replacing, inspect the sensor's wiring harness for damage, a common issue on lifted or off-roaded Wranglers.
- Replacement is easier for rear sensors than front sensors, which require removing the brake caliper and rotor.
- An OBD-II scanner that reads ABS codes is the best way to confirm which wheel sensor has failed.
Is Your Jeep's Dashboard Lit Up?
A failing ABS wheel speed sensor is one of the most common electronic issues on the 2019-2024 Jeep Wrangler (JL). Because this one sensor feeds data to multiple safety systems, a single failure can trigger a cascade of warning lights. The symptoms are hard to miss and often appear suddenly, sometimes after hitting a bump or driving on rough roads.
Symptoms of a Bad ABS Wheel Speed Sensor
- Warning Lights: The most common sign is the illumination of the ABS, Electronic Stability Control (ESC), and/or Traction Control (TCS) lights on your dashboard. You may also see a "Service 4WD" message. 🎬 Watch what happens when this sensor triggers a 4WD warning.
- Brake Problems: You might feel a pulsing or shuddering in the brake pedal, as if the ABS is activating for no reason. In other cases, the brake pedal may feel harder to press.
- Disabled Safety Features: With the warning lights on, your ABS, traction control, and stability control systems are disabled. Your standard brakes will still work, but these important safety aids will not.
Pro Tip: Check Your Wires First
Before you buy a new sensor, take a close look at the wiring harness that runs to it. On a Wrangler, especially one that's been lifted or used off-road, this wire can get stretched, pinched, or damaged by debris. A broken wire can cause the exact same symptoms as a failed sensor. Following the wire from the sensor up into the frame is a quick check that could save you money.
Choosing the Right Aftermarket Sensor
While some owners prefer to stick with OEM Mopar parts, high-quality aftermarket ABS sensors offer a reliable and more affordable alternative. For a part like this, the brand and its reputation for quality control matter. Here’s a look at the available options.

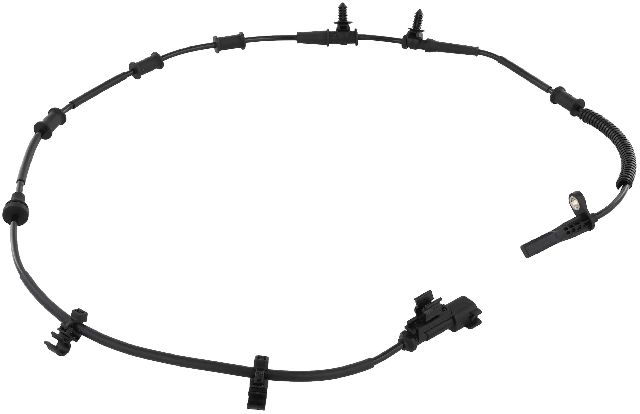

- Delphi: Often considered a top-tier aftermarket brand, Delphi sometimes manufactures original equipment parts for carmakers. They are known for robust testing and sometimes even improve on the original design, for example by using plated connectors to resist corrosion. This is a strong choice for OEM-level quality.
- Standard Ignition (SMP): A large, reputable manufacturer in the aftermarket world. Standard offers a wide range of sensors and is generally seen as a reliable choice for daily drivers and off-road use.

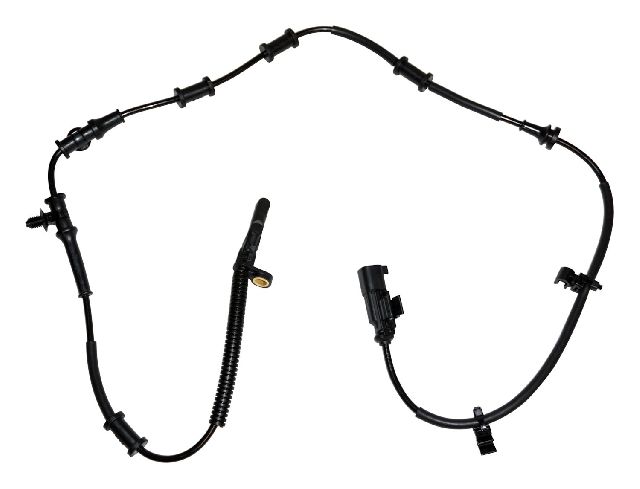

- Crown Automotive: As a specialist in Jeep replacement parts, Crown is a popular choice in the Jeep community. They offer direct-fit parts that meet OE specifications, making them a solid, vehicle-specific option.

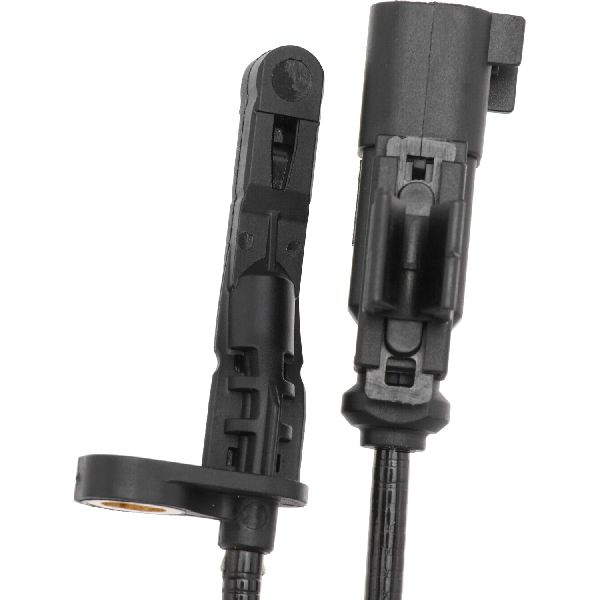

- Holstein: This brand produces a wide variety of automotive sensors and is a known player in the aftermarket, providing a budget-friendly alternative.
Cost of Replacing a Wrangler ABS Sensor
| Part Type | Price Range |
|---|---|
| New OEM (Mopar) | $65 - $90 |
| New Aftermarket | $46.59 - $82.39 |
| Shop Labor | $120 - $250 |
Cost estimates are based on national averages and may vary by location and vehicle specifics.
Known Issues & TSBs
While there are no direct recalls for the sensor itself, Jeep has issued Technical Service Bulletins (TSBs) related to the ABS system. TSB 0809923 (April 2023) addresses an ABS module software update for MIL illumination. TSB 9004311 (Oct 2020) specifically calls out fault codes for the rear wheel speed sensor on 2020-2021 models. This indicates that sensor issues are a known problem.
Frequently Asked Questions (FAQ)
Is it hard to replace a Jeep Wrangler ABS sensor?
It's a DIY-friendly job. The rear sensors are very easy, held in by a single 8mm bolt. 🎬 See how easy it is to swap a rear sensor. The front sensors are more involved because you need to remove the brake caliper and rotor to get access, but it's still manageable for a home mechanic. 🎬 Watch this step-by-step guide for replacing a front ABS sensor. The most common challenge is the sensor being stuck in the wheel hub due to rust or corrosion.
Do I need a special tool to diagnose the problem?
Yes, to be certain which sensor is bad, you need an OBD-II scanner that can read ABS codes. A basic code reader may not show ABS-specific faults. These scanners will point you to the exact wheel (e.g., "Left Front Wheel Speed Sensor Circuit") that has the problem.
Are the front and rear sensors the same part?
No, the front and rear sensors have different part numbers and are not interchangeable. The front sensors are also the same for the driver and passenger side. Always verify the part number for the correct location on your vehicle.
Do I need to reset the computer after replacing the sensor?
Usually, the warning lights will turn off on their own after a short drive once the new sensor is installed. You can also use an OBD-II scanner to clear the codes immediately after the repair.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68394210AG (Front) 68627496AA (Rear)
The ABS wheel speed sensor is a magnetic sensor that reads a tone ring on the wheel hub assembly to determine wheel rotation speed. It uses a 2-pin connector.
