2017-2022 BMW X3 Ambient Air Temperature Sensor Guide
Is your X3's temperature display wrong or is the A/C acting up? Your ambient air temp sensor might be the problem.
- A faulty sensor primarily affects your A/C, heating, and the temperature display on the dash.
- The most common symptom is an obviously incorrect temperature reading.
- Replacement is a simple DIY task for most owners, located behind the passenger-side front wheel well liner.
- A quality aftermarket brand like Standard Ignition offers a reliable, cost-effective alternative to the more expensive OEM part.
Is Your BMW X3's A/C or Temperature Gauge Acting Strange?
If you own a 2017-2022 BMW X3 (G01 generation) and notice that the outside temperature reading on your dashboard is way off, or your automatic climate control isn't working as it should, a faulty ambient air temperature sensor is a likely culprit. This small sensor plays a big role in your comfort and can cause confusing issues when it fails. While it's a simple part, its failure can make your drive uncomfortable, especially in very hot or cold weather.
Symptoms of a Failing Ambient Air Temperature Sensor
When this sensor goes bad, your BMW will give you a few clear signs. The most common is an incorrect temperature reading on the instrument cluster. For example, it might show 35°F on a 65°F day. This incorrect reading directly impacts the automatic climate control, which may fail to cool or heat the cabin properly because it's receiving bad data. In some cases, a failing sensor can also trigger a Check Engine Light.
Common Ordering Mistakes
Be careful not to confuse the ambient air temperature sensor (located outside) with the cabin air temperature sensor (located inside the vehicle's HVAC system). They perform different functions. The correct part for this issue is the one that reads the outdoor temperature, typically mounted in the front of the vehicle.
Choosing the Right Aftermarket Sensor
When replacing this sensor, you have a choice between an original equipment (OEM) part from a BMW dealer and an aftermarket part. The OEM sensor for the X3 is reliable but comes at a higher price.
Reputable aftermarket brands like Standard Ignition offer a quality alternative at a more affordable price. Standard Ignition (also known as SMP) is a well-established manufacturer that produces parts meeting or exceeding OEM specifications. For a simple electronic sensor like this, an aftermarket part from a trusted brand provides excellent value without a noticeable difference in performance or longevity for most owners.
Installation Location and Tips
On the 2017-2022 BMW X3 (G01), the ambient air temperature sensor is located in the front bumper area, specifically behind the front right (passenger side) wheel housing liner. Accessing it requires removing a few screws to pull back the plastic liner. The sensor itself is a small, probe-like component that plugs into a wiring harness. Replacement is a straightforward job that most DIYers can complete in under 30 minutes with basic tools.

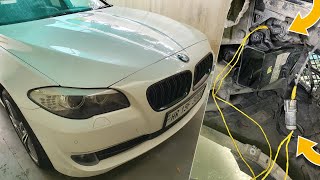

🎬 Watch: Step-by-step guide to replacing your BMW temperature sensor.Pro Tip: When replacing the sensor, inspect the wiring and connector for any signs of corrosion or damage, which is common due to its location. Sometimes the wiring itself is the problem, 🎬 See how to diagnose sensor wiring and short-to-positive faults. not the sensor.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $55 - $75 |
| New Aftermarket (Standard Ignition) | $57.72 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the ambient air temperature sensor located on a 2017-2022 BMW X3?
The sensor is located behind the front bumper on the passenger side. You can access it by removing a few fasteners on the wheel well liner and pulling it back to reach the sensor and its connector.
Can I drive my BMW X3 with a bad ambient air temperature sensor?
Yes, you can still drive the vehicle. However, the automatic climate control will not function correctly, which can be uncomfortable in hot or cold weather. Your windshield defogger may also be less effective.
What happens if I don't replace the sensor?
You will have to live with an incorrect outside temperature display and a climate control system that only works properly in manual mode. It won't cause any mechanical damage, but it will affect your comfort.
Is an aftermarket sensor as good as the BMW OEM part?
For this specific part, a quality aftermarket sensor from a brand like Standard Ignition is a reliable and cost-effective choice. It performs the same simple function as the OEM part, and you are unlikely to notice any difference in performance or longevity.
Are there any recalls for the ambient air temperature sensor on the BMW X3?
As of early 2026, there are no specific recalls issued by the NHTSA for the ambient air temperature sensor on the 2017-2022 BMW X3. However, there is a BMW Technical Service Bulletin (TSB) B62 12 15 that addresses implausible temperature readings and lists potential causes, including sensor or wiring faults. Other recalls for the X3 have been for issues like starter motors.
Helpful Videos
Technical Specifications
OEM Part Numbers: 65816936953 65816905133 65810141199
2-pin male connector plug-in sensor.
