A Comprehensive Guide to the 2016-2023 GMC Yukon A/C Evaporator Core
Is your Yukon's A/C blowing warm? Here’s what you need to know about fixing it right.
- Evaporator replacement is a major, labor-intensive job requiring full dashboard removal; labor is the biggest expense.
- Confirm whether the front or rear evaporator has failed; the rear unit is much easier to replace.
- Always check for leaks at the A/C condenser first, as this is a very common failure point on 2015-2017 models.
- Always replace the receiver/drier and expansion valve with the evaporator to ensure system longevity and warranty compliance.
Is Your Yukon's A/C Failing? Signs of a Bad Evaporator Core
When an A/C evaporator core fails, the symptoms are hard to ignore, especially in warm weather. Because it's buried in the dash, a leak here is not something you can easily see.
- Warm Air from Vents: This is the most common sign. If the evaporator is leaking refrigerant, it can't get cold enough to cool the air.
- A/C System Won't Hold a Charge: If you or a shop adds refrigerant and it only stays cold for a short time, you likely have a leak. The evaporator is a common, hard-to-find source for these leaks.
- Musty or Sweet Smell: A leaking evaporator can cause a strange smell inside the cabin. Sometimes, mold can grow on the evaporator, causing a musty odor when you turn on the fan.
- A/C Compressor Clutch Doesn't Engage: The A/C system has pressure sensors. If a leak in the evaporator causes the refrigerant level to drop too low, the system will prevent the compressor from turning on to protect it from damage.
Front or Rear A/C System?

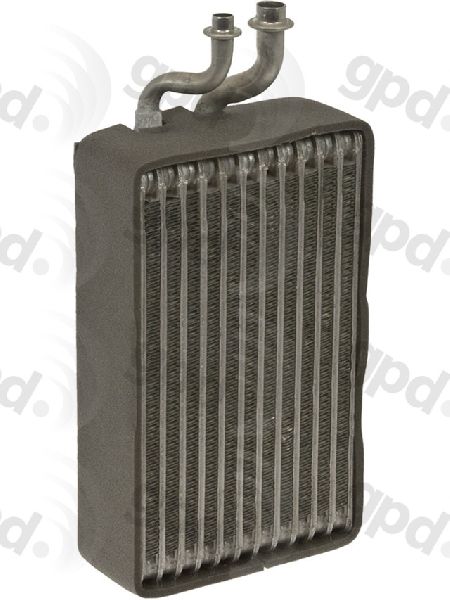

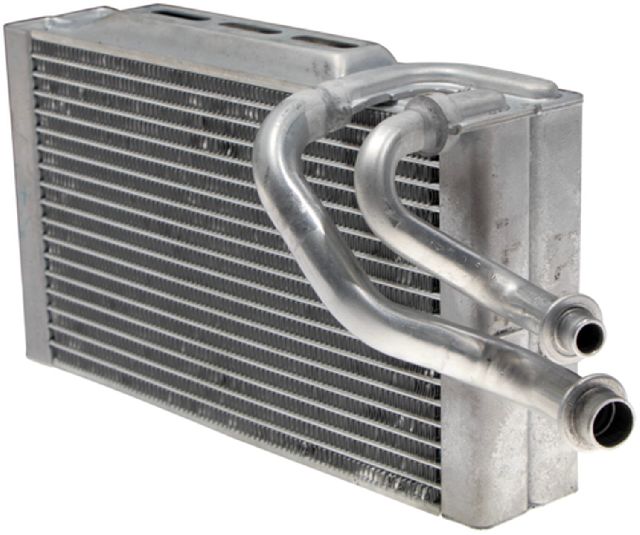

Many 2016-2023 GMC Yukons, especially XL models, have a separate rear A/C system. This system has its own evaporator core located in the passenger-side rear quarter panel. It is crucial to diagnose which unit has failed. The rear evaporator is much easier and cheaper to replace than the front one.
Choosing the Right Aftermarket Evaporator Core
Replacing the front evaporator is one of the most labor-intensive repairs on your Yukon, requiring the entire dashboard to be removed. Because of the high labor cost, choosing a quality part is critical to avoid doing the job twice. Here’s an honest look at your options.
OEM vs. Aftermarket Quality
For a part this difficult to access, many professional mechanics recommend using an OEM part to minimize the risk of premature failure. However, the original evaporators can and do fail. Quality aftermarket parts can be a reliable, cost-effective alternative. The key is to choose a reputable brand.
Aftermarket Brand Tiers
- Tier 1 (Premium Aftermarket): ACDelco, Four Seasons

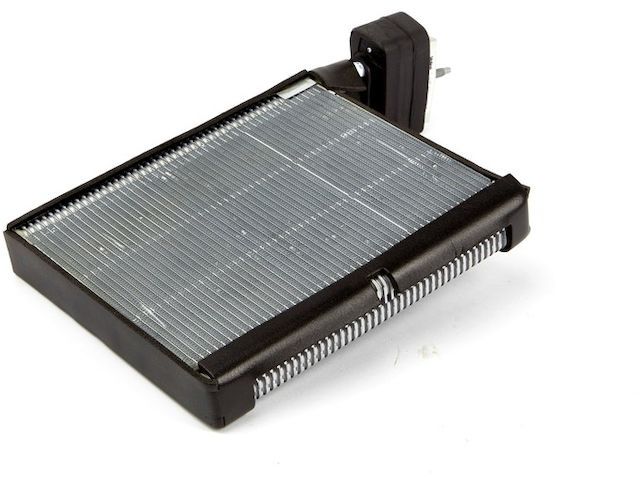

ACDelco is GM's official parts brand, but they offer different lines. Their "GM Genuine" or "OEM" parts are the same as what the factory installed. Their "Gold" (formerly "Professional") line is a high-quality aftermarket alternative. Four Seasons is a well-known aftermarket A/C parts manufacturer with a reputation for decent quality and fitment. For a job this big, sticking to these top-tier brands is a smart investment. - Tier 2 (Standard Aftermarket): Spectra, Global Parts (GPD)
Spectra Premium is another established brand that generally offers good quality parts that are comparable to Four Seasons. GPD is also a common choice in shops. These brands can offer good value but may have a slightly higher risk of defects compared to OEM.
Check the Condenser First!

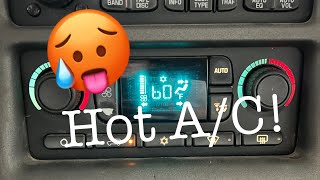

Before you assume the evaporator is bad, check the A/C condenser. On 2015-2017 Yukons, the condenser is famous for developing leaks. GM even issued a special warranty extension for it (Special Coverage 17336 🎬 Watch this troubleshooting guide to save money on A/C repairs.). A slow leak from the condenser is a very common reason for A/C failure on these trucks. Look for oily residue on the condenser, which is located in front of the radiator.
Cost to Replace the GMC Yukon A/C Evaporator
The cost is dominated by labor. Accessing the front evaporator requires a technician to remove the entire dashboard assembly, a job that can take 10-20 hours.

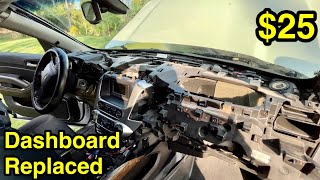

🎬 Watch a walkthrough of the front evaporator replacement process.| Item | Estimated Cost |
|---|---|
| New Aftermarket Evaporator Part | $75 - $385 |
| New OEM Evaporator Part | $470 - $520 |
| Shop Labor | $1,260 - $1,850 |
| Total Professional Replacement | $1,730 - $2,370 |
Costs are estimates and will vary by location and repair shop. The total cost includes the part, labor for replacement, and recharging the A/C system.
Frequently Asked Questions
Is there a recall on the A/C evaporator for the 2016-2023 Yukon?
No, there are no active safety recalls for the A/C evaporator core on these vehicles. There was a Special Coverage program (17336) for a known leaking A/C condenser on 2015-2017 models, which is a separate part. There is also a Technical Service Bulletin (TSB 18-NA-156) for potential leaks at the receiver/drier plug on 2017-2018 models.
Can I replace the front A/C evaporator myself?
This is not recommended for a DIY mechanic. The job requires removing the entire instrument panel, steering column, and dashboard assembly. It also requires specialized equipment to safely recover and recharge the A/C system's refrigerant. One mistake can lead to more expensive damage. This job is best left to an experienced professional.
Should I replace any other parts at the same time?
Yes. Any time the A/C system is opened for a major repair, you must replace the A/C receiver/drier (also called an accumulator). This part absorbs moisture from the refrigerant, and a new one is essential for the health of the new components. It is also wise to replace the A/C expansion valve, as it is connected directly to the evaporator. Most warranties for new A/C parts require these items to be replaced.
My A/C has a musty smell but still blows cold. Is the evaporator bad?
Not necessarily. A musty smell is often caused by microbial growth on the surface of the evaporator core due to moisture. GM has a procedure (TSB 99-01-39-004D) for cleaning the evaporator and enabling an "afterblow" feature in the vehicle's computer. This feature runs the blower fan for a short time after the vehicle is shut off to dry the evaporator and prevent future growth.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84340800 84104355 84835413 84689023

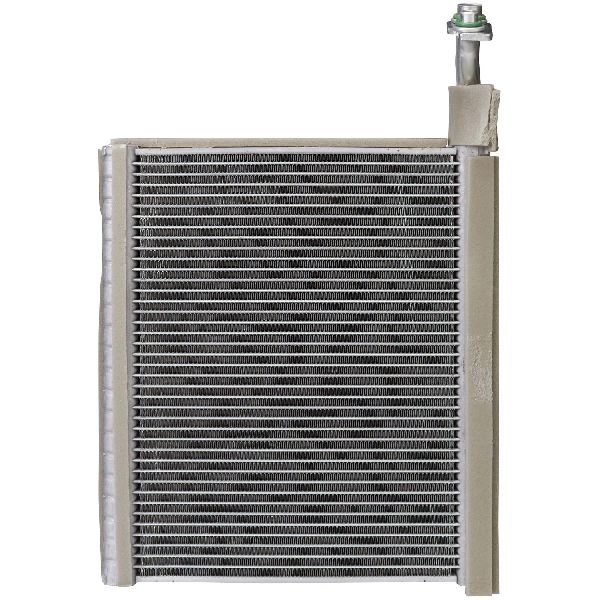

The GMC Yukon uses two separate evaporators for front and rear A/C systems. The front unit is a plate-fin or channel-plate style core located inside the main HVAC housing under the dashboard. The rear unit is located in the passenger side rear cargo area trim panel.
