A Guide to Replacing the Starter on Your 2016-2018 Chevrolet LCF 3500
Don't get stranded by a bad starter; understand the symptoms and your best aftermarket replacement options.
- A clicking sound when turning the key is the most common sign of a failing starter on your LCF 3500.
- For a commercial work truck, choosing a premium aftermarket brand like ACDelco is recommended for reliability.
- Be aware of TSB 19-NA-212: if your engine cranks but won't start, the issue might be a sheared camshaft pin, not the starter.
- The starter is specific to the 6.0L V8 gas engine found in most 2016-2018 LCF 3500 models.
Is Your LCF 3500 Starter Failing?
A failing starter can leave your work truck dead in the water. The most common reasons for a Chevrolet LCF 3500 to not start are a dead battery, a bad alternator, or a failed starter. If you've checked your battery and it's good, the starter is the next likely culprit. Knowing the signs of a weak starter can help you replace it before it fails completely.
Common Symptoms of a Bad Starter:
- Clicking Sound: A single, loud click when you turn the key is a classic sign of a bad starter solenoid or motor.
- No Sound at All: If the lights on your dash come on but you hear nothing when you turn the key, the starter may have completely failed.
- Engine Cranks Slowly: If the engine turns over very slowly, like the battery is weak, it could be a sign that the starter motor is drawing too much power.
- Grinding Noise: A grinding sound during or after starting can mean the starter gear is not engaging or disengaging properly with the engine's flywheel.
- Intermittent Starting: The truck starts fine sometimes, but other times it just clicks or does nothing. This often points to a developing electrical issue inside the starter.
Could It Be Something Else?
There is a Technical Service Bulletin (TSB 19-NA-212) for 2016-2019 LCF models with a "cranks but doesn't start" issue. This specific problem is caused by a sheared camshaft sprocket pin, not the starter. If your engine is turning over but not firing up, this TSB might be relevant and requires a different diagnosis.
Choosing the Right Aftermarket Starter
For the 2016-2018 LCF 3500, most models are equipped with the 6.0L V8 gasoline engine, and starter motors are specific to this engine. When buying an aftermarket part, you have a few quality tiers to consider.
| Brand Tier | Brands | Quality & Performance Assessment |
|---|---|---|
| Premium Aftermarket / OEM Equivalent | ACDelco | ACDelco is General Motors' own parts brand. Their Gold line parts are made with all new components and are manufactured to high-quality standards, ensuring a proper fit and long life. For a commercial truck where reliability is key, this is a top choice that offers performance equivalent to the original factory part. |
| Standard Aftermarket | MPA (Motor Parts of America) | MPA is a large manufacturer of both new and remanufactured starters. They emphasize their testing process to ensure reliability. These are solid, mid-tier options that provide a balance of cost and quality for getting a vehicle back on the road. |
| Specialty / Performance | Proform | Proform specializes in high-torque, mini-starters for performance and classic car applications, not standard commercial trucks. While their name might appear in a parts search, their products are not designed as a direct replacement for the LCF 3500 and may have fitment or reliability issues in this application. It is best to choose a brand that specializes in direct-fit OEM-style parts for this vehicle. |
New vs. Remanufactured
A "new" aftermarket starter is made with 100% new components. A "remanufactured" starter has been completely disassembled, cleaned, and had its worn-out internal parts replaced and tested. For a work truck like the LCF 3500, a high-quality new starter from a brand like ACDelco is often the most reliable long-term choice.
Frequently Asked Questions (FAQ)
How much does a new starter cost for a 2016-2018 LCF 3500?
The cost for the part itself varies by brand. New aftermarket starters typically range from about $146 to $285. An OEM-equivalent brand like ACDelco is usually in the higher end of that range, around $185.
What is the cost to have a mechanic replace the starter?
Shop labor costs for a starter replacement can range from $200 to $400 or more, depending on the shop's hourly rate. The job typically takes 1.5 to 2.5 hours. The total cost for a professional replacement will likely be between $350 and $700, including the part and labor.
Can I replace the LCF 3500 starter myself?
If you have moderate mechanical skill and the right tools, this is a DIY-feasible job. It typically involves safely lifting the vehicle, disconnecting the battery, removing a wheel and splash shield for access, and then unbolting the starter and its electrical connections. The cab-over design of the LCF may present different access challenges than a standard pickup truck.
Is a clicking sound always a bad starter?
Not always, but it's the most common cause. A single, loud click usually means the starter solenoid is engaging but the motor isn't turning. This can be caused by the starter itself or sometimes by a weak battery that doesn't have enough power to turn the motor, or a poor electrical connection at the battery or starter.
Technical Specifications
OEM Part Numbers: 12721722 12670255

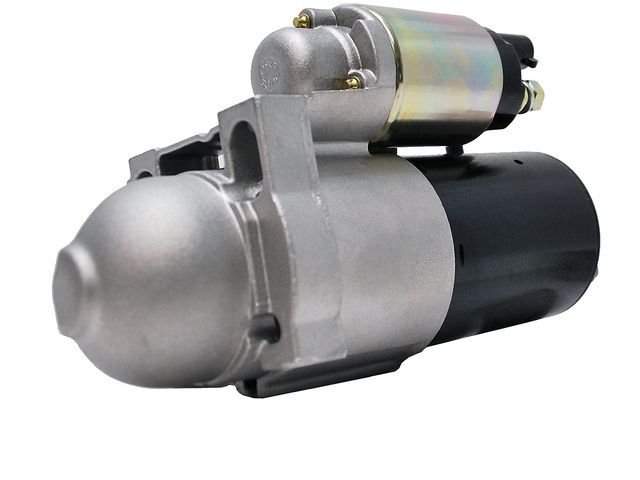

Fits the 6.0L V8 gasoline engine. The starter is a 12V, clockwise rotation, permanent magnet gear reduction (PMGR) type with 11 teeth and a power rating of approximately 1.4 kW.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
