Guide to the Engine Valve Cover Gasket Set for 2015-2024 Mazda 3
Here is what you need to know if you see oil leaking from the top of your Mazda 3's Skyactiv engine.
- A burning oil smell is the most common symptom of a failing valve cover gasket on a Mazda 3.
- Check the small Oil Control Valve (OCV) seal, as it's a frequent leak point that is often mistaken for the main gasket.
- Replacement is a feasible DIY project; ensure surfaces are clean and bolts are torqued correctly to prevent new leaks.
- Quality aftermarket gaskets from brands like Beck Arnley can provide OEM-level performance for less money.
Is Your Mazda 3 Leaking Oil? Signs of a Bad Valve Cover Gasket
The valve cover gasket on the Skyactiv engines used in the 2015-2024 Mazda 3 is a common wear item. Over time, constant heat from the engine causes the rubber gasket to become hard, brittle, and shrink. When this happens, it can no longer create a tight seal, and oil begins to seep out. Here are the most common symptoms to watch for:
- Burning Oil Smell: This is often the first sign. Leaking oil drips onto the hot exhaust manifold, where it burns off and creates a noticeable, sharp smell that can enter the cabin.
- Visible Oil and Grime: You may see wet, dark areas of oil on the valve cover or the side of the engine block. This oil leak will attract dirt and dust, creating a layer of greasy grime.
- Oil in Spark Plug Wells: The gasket set includes seals for the spark plug tubes. If these fail, oil can pool around your spark plugs. This can lead to engine misfires, a rough idle, and a check engine light.
- Low Engine Oil: A small leak may not cause a noticeable drop in oil level, but a more significant leak will. It's important to check your oil level regularly if you suspect a leak.
A Common Misdiagnosis
On Skyactiv engines, the small, round seal for the Oil Control Valve (OCV) is a very common source of leaks. This seal is located on the valve cover, and a leak from it can look very similar to a valve cover gasket leak. It's wise to inspect this seal closely, as it is an inexpensive and easy part to replace. Many replacement videos recommend changing this seal at the same time as the valve cover gasket.
Choosing a New Aftermarket Gasket: OEM vs. Aftermarket
When it's time to replace the gasket, you have a choice between the original equipment (OEM) part from Mazda and an aftermarket part. For a part like a valve cover gasket, a quality aftermarket brand can offer the same performance as OEM for a better price.
Brands like Beck Arnley have a reputation for sourcing parts from OEM manufacturers and repackaging them. This means you can often get a part with the same fit, form, and function as the original without paying dealership prices. The key is the quality of the material. A good aftermarket gasket will be made from premium materials designed to withstand high engine temperatures and provide a durable, long-lasting seal.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New OEM Gasket Set | $33 - $46 |
| New Aftermarket Gasket Set | $27 - $34 |
| Shop Labor | $120 - $200 |
Known Issues, Recalls, or TSBs
Searches for recalls and technical service bulletins (TSBs) did not find any specific issues related to the valve cover gasket itself for the 2015-2024 Mazda 3. Most failures are due to normal wear and tear over time and mileage. There are recalls for the 2024-2025 models related to the airbag system, but these are not related to the engine. A TSB for some 2019-2021 2.5L Turbo engines mentions excessive oil consumption due to valve stem seals, which is a different and more serious issue than a valve cover gasket leak.
Pro Tip: Get it Right the First Time
When replacing the gasket, proper installation is key to preventing future leaks. The mating surfaces on both the cylinder head and the valve cover must be perfectly clean. A plastic scraper should be used to avoid scratching the metal surfaces. A small amount of RTV sealant is required at the corners where the timing cover meets the cylinder head. Finally, the valve cover bolts must be tightened to a very low torque specification (around 40-89 in-lbs) in a specific sequence to ensure even pressure.
Frequently Asked Questions (FAQ)
Is an OEM gasket better than aftermarket for my Mazda 3?
Not necessarily. For a simple part like a gasket, a quality aftermarket brand like Beck Arnley often provides OEM-equivalent quality at a lower cost. The most important factors are the material quality and proper installation.
How often does the valve cover gasket need to be replaced?
There is no set interval. Gaskets typically fail due to age and heat cycles, often after 100,000 miles or more. However, a failure was reported on one vehicle at just over 50,000 miles, so it can vary.
Can I reuse my old valve cover gasket?
No. Once a gasket has been compressed and heat-cycled, it will not seal properly if reinstalled. The part is designed for one-time use. Gasket sets are inexpensive, so it is always best to use a new one.
What else should I replace at the same time?
It is highly recommended to also replace the small, round Oil Control Valve (OCV) seal, as it is a frequent leak point. If your spark plugs are due for a change, this is a perfect time to do them since you will have easy access once the ignition coils are removed. If oil has leaked into the spark plug tubes, the plugs and ignition coil boots should be cleaned or replaced.

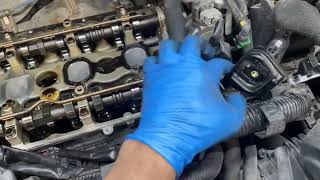

Helpful Videos
Technical Specifications
OEM Part Numbers: PE01-10-235 PE7W-10-235
Fits 2.0L and 2.5L Skyactiv-G engines. Set typically includes the main perimeter gasket and four spark plug tube seals. Made from high-temperature resistant rubber or silicone materials.
