A Mechanic's Guide to the 2014-2022 Toyota Corolla Engine Timing Chain Kit
If you hear a rattling noise from your engine, this guide is for you.
- The timing chain in your Corolla should last the life of the engine; failure is not common.
- A rattling noise on startup is the number one warning sign of a potential issue.
- Regular oil changes with the correct oil are the best way to prevent timing chain problems.
- If replacement is needed, use a complete kit from a reputable brand like Cloyes, Gates, or INA; do not use cheap, unbranded parts.
Is Your Corolla's Timing Chain Failing?
The timing chain on the 2014-2022 Toyota Corolla is a reliable part, but it's not invincible. Failures are rare but can happen, especially at high mileage or if oil changes have been neglected. Ignoring the warning signs can lead to catastrophic engine damage. Listen carefully to your engine, especially when you first start it.
Key Failure Symptoms

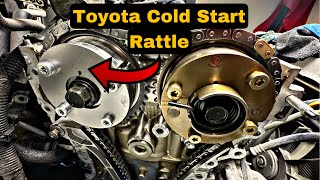

- Rattling Noise on Startup: The most common sign is a rattling or clattering sound coming from the engine for a few seconds after a cold start. 🎬 Watch: Hear what a typical Toyota cold start rattle sounds like. This often points to a worn timing chain tensioner or stretched chain.
- Check Engine Light: If the chain stretches, it can affect the engine's timing correlation, triggering the check engine light. You may see diagnostic trouble codes (DTCs) like P0016 or P0017.
- Rough Idle and Poor Performance: As the timing becomes more erratic, you may notice the engine idling roughly, hesitating during acceleration, or a general lack of power.
- Metal Shavings in Oil: In severe cases, pieces of the chain guides or the chain itself can break off and end up in the engine oil. This is a sign of a critical failure.
Known Issues, Recalls, and Service Bulletins
There are no major recalls or Technical Service Bulletins (TSBs) specifically for timing chain failure on the 2014-2022 Toyota Corolla. This indicates that premature failure is not a widespread factory defect. Most issues are linked to high mileage or lack of maintenance, particularly infrequent oil changes.
Choosing the Right Aftermarket Timing Kit
When your mechanic confirms you need a new timing chain kit, you have a choice between Original Equipment Manufacturer (OEM) and aftermarket parts. For a critical component like this, quality is paramount.
OEM vs. Aftermarket Quality
An OEM kit from a Toyota dealer is the safest choice, guaranteeing a perfect fit and original quality, but it comes at a higher price. High-quality aftermarket kits from reputable brands can offer the same level of performance and durability for less money. The key is to choose a trusted brand. Avoid cheap, unbranded kits, as their poor materials and manufacturing can lead to premature failure and repeat the costly repair job.
Recommended Aftermarket Brands:
Based on mechanic and owner feedback, these brands are solid choices for your Corolla:
- Cloyes: Often considered a top-tier aftermarket brand for timing components. They have a long-standing reputation for quality and are used by many professional mechanics.
- Gates: While famous for belts, Gates also produces reliable timing chain kits that are a trusted alternative to OEM.
- INA: As part of the Schaeffler Group, a major OEM supplier, INA kits are known for their high quality and engineering, making them a safe and dependable choice.
Pro Tip: Replace Everything in the Kit
A timing chain kit includes more than just the chain. It contains crucial components like guides, tensioners, and sometimes sprockets. The labor to access the timing chain is extensive, so it is critical to replace all the components in the kit at the same time. A worn guide or tensioner can cause a brand new chain to fail.
Cost to Replace a 2014-2022 Corolla Timing Chain Kit
This is a labor-intensive job that requires a skilled mechanic. 🎬 See this full walkthrough of the timing chain replacement process. Labor will be the largest part of the bill.
| Item | Estimated Cost |
|---|---|
| New OEM Kit | $300 - $450 |
| New Aftermarket Kit (Reputable Brand) | $125 - $181 |
| Shop Labor | $800 - $1,500+ |
| Total Estimated Cost | $925 - $1,950+ |
Cost estimates are for reference only and will vary based on your location, the specific shop, and the parts chosen.
Frequently Asked Questions
Is there a recall for the timing chain on the 2014-2022 Corolla?
No, there are no specific safety recalls for the timing chain on these models. Failures are typically related to wear and maintenance rather than a manufacturing defect.
How long is the timing chain supposed to last?
The timing chain is designed to last the lifetime of the engine. With regular, on-time oil changes using the correct oil, many Corollas will never need a timing chain replacement.
What are the P0016 and P0017 codes?
These codes indicate a problem with the correlation between the crankshaft and camshaft positions. Essentially, the engine's computer has detected that the valve timing is out of sync, which is often caused by a stretched timing chain.
🎬 Watch: Understanding P0016 codes and how to diagnose timing issues.Can I replace just the tensioner?
While a failing tensioner is often the root cause, the labor involved to access it is nearly the same as replacing the entire kit. Given the high cost of labor, it is strongly recommended to replace the chain, guides, and tensioner all at once to prevent having to do the job again in the near future.
Helpful Videos
Technical Specifications
OEM Part Numbers: 13506-0T020 13506-37010 13506-F2010
Fits 2014-2022 Toyota Corolla models equipped with the 1.8L 2ZR-FE and 2.0L M20A-FKS engines. Kits should include the primary timing chain, chain tensioner, and all necessary guides. Sprockets may be sold separately or included in more comprehensive kits.
