A Guide to Replacing the Door Lock Actuator on Your 2013-2018 Toyota RAV4
If your RAV4's door locks are acting up, this guide explains the common symptoms and how to choose the right replacement part.
- Failure is very common on this RAV4 generation, but it is not an official safety recall.
- Symptoms are usually isolated to one door and include failure to lock/unlock electronically and strange noises from the door.
- The replacement is a feasible DIY job for those comfortable with removing a door panel, taking about 1-2 hours.
- You must verify if your RAV4 has a standard key or a push-button Smart Key system before ordering, as the parts are different.
Is Your RAV4 Door Lock Actuator Failing?
A failing door lock actuator is a very common problem for the 2013-2018 Toyota RAV4. Usually, the failure is limited to a single door, because each door has its own actuator motor. If all your locks stop working at once, the problem is more likely a fuse or a central computer issue. Watch for these signs of a failing actuator:
- One Door Won't Lock or Unlock: The most common symptom is when one door doesn't respond to the key fob or interior lock switch, while the others work fine.
- Strange Noises: You might hear a buzzing, grinding, or clicking sound from inside the door when you try to use the power locks. This is the sound of the small electric motor inside the actuator struggling to work.
- Erratic Operation: The door lock might work sometimes but not others. In some cases, it might even lock or unlock by itself.
- Slow or Weak Locking: The lock may seem sluggish when it moves. This can be an early sign that the motor is wearing out.
Known Issue: Widespread Failures and Lawsuit
While there is no official safety recall from Toyota or the NHTSA for the door lock actuators on the 2013-2018 RAV4, their failure is a widely known issue. A class-action lawsuit has been filed alleging that these parts fail prematurely on many Toyota models, including the RAV4. The lawsuit claims the problem can be a safety risk if a door fails to unlock in an emergency or fails to lock, leaving the vehicle vulnerable.
Choosing the Right Aftermarket Door Lock Actuator
When replacing the door lock actuator, you have a choice between original equipment (OEM) and aftermarket parts. For a vehicle like the RAV4 where this is a common failure, even with original parts, a quality aftermarket part can be a smart, cost-effective choice. Here’s a look at the brands available:
- Standard Ignition (SMP): Standard is a well-known and respected brand in the automotive aftermarket. They manufacture a huge range of parts and are generally considered a reliable choice for components like actuators.
- Ackoja: Ackoja is a brand specializing in parts for Korean and Japanese vehicles, positioning itself as an OEM-quality alternative. They focus on using high-quality materials and certified production processes.
- URO Parts: URO Parts is often seen as a budget-friendly option. They manufacture a wide variety of replacement parts and can be a good value, though some forum users have mixed experiences with budget brands in general.
- Replacement: This is often a private-label or generic brand. These parts offer the lowest price point but may not have the same level of quality control or longevity as more established brands.
Pro Tip: Check Your Key System
Before ordering, you must know if your RAV4 has a traditional metal key ignition or the push-button Smart Key system. The door lock actuators for these two systems are different and are not interchangeable. Make sure you order the part that matches your vehicle's specific system.
🎬 Watch this tip to ensure your key works after installation.Cost of Replacing a Toyota RAV4 Door Lock Actuator
The cost can vary depending on whether you do the job yourself or take it to a repair shop. The part itself is affordable, but labor can add a significant amount to the total cost.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Actuator | $52.86 - $350.39 |
| New OEM Actuator | $379 - $455 |
| Shop Labor | $114 - $167 |
| Total Shop Visit (Aftermarket Part) | $167 - $517 |
| Total Shop Visit (OEM Part) | $493 - $622 |
Frequently Asked Questions
Can I drive my RAV4 with a bad door lock actuator?
Yes, you can still drive the vehicle. However, the security of your car is compromised if a door will not lock. You will have to manually lock and unlock the affected door, which can be an inconvenience and a security risk.
Is this a difficult DIY repair?
For a moderately experienced DIYer, this is a manageable job that takes 1-2 hours. It involves removing the interior door panel, carefully peeling back the weather barrier, and accessing the actuator inside the door. You will need basic hand tools, a trim removal tool, and a Torx T30 screwdriver.

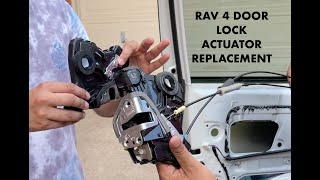

🎬 See a step-by-step walkthrough for driver and passenger door repairs.Do I have to replace all the actuators at once?
No. Failures are almost always isolated to a single actuator, so you only need to replace the one that has failed. However, since they are a common failure item, it's not unusual for another one to fail later on.
How can I be sure it's the actuator and not the switch?
A simple test is to listen carefully at the affected door while someone presses the lock or unlock button. If you hear any sound (a click, buzz, or hum), the switch is sending power and the actuator motor is the likely culprit. 🎬 Watch this video to diagnose and replace your RAV4 actuator. If you hear complete silence, the problem could be the switch, a fuse, or the wiring.
Helpful Videos
![2013-2018 Toyota RAV4 Driver and Passenger Door Actuator Replacement [E148]](https://img.youtube.com/vi/RGfc-1LMfe8/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 69040-0C050 69030-0C050 69050-06100
The complete assembly includes the mechanical latch and the integrated electronic actuator motor. Different part numbers are used for front/rear, left/right, and for vehicles with or without the Smart Key system.
