Ford E-450 Super Duty (2012-2023) Exhaust Manifold Hardware Replacement Guide
Dealing with a ticking exhaust leak? Here’s what you need to know about replacing the manifold hardware on your V8 or V10 E-450.
- A ticking noise when cold is the primary symptom of a broken exhaust manifold stud on the E-450.
- This is a very difficult repair due to the high likelihood of studs breaking flush with the cylinder head, requiring extraction.
- Always replace all studs and nuts on a manifold at the same time, not just the broken one.
- Consider using higher-quality aftermarket stainless steel hardware for better longevity compared to the original parts.
Is Your E-450 Ticking? Understanding Exhaust Hardware Failure
A common issue on Ford E-450 Super Duty vans, especially those with the 6.8L V10 or 5.4L V8 Triton engines, is the failure of the exhaust manifold hardware. The most frequent symptom is a distinct "ticking" noise when 🎬 Listen to the specific ticking sound of a manifold leak. the engine is cold, which may quiet down as the engine warms up and the metal expands to temporarily seal the leak. This is almost always caused by one or more broken exhaust manifold studs. The original factory studs are known to corrode and weaken over thousands of heat cycles, eventually snapping under the stress. The studs at the rear of the manifold are often the first to break due to higher heat concentration.
Why This Repair is Difficult

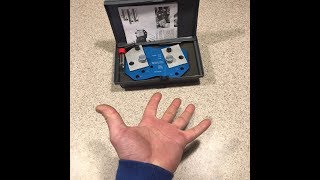

Replacing the exhaust manifold hardware is not a simple bolt-off, bolt-on job. The main challenge is that studs often break off flush with the cylinder head, requiring them to be drilled out and extracted. This process is labor-intensive, requires special tools like right-angle drills or stud extraction kits, and carries the risk of damaging the aluminum cylinder head if not done correctly. Access is also tight in the E-Series engine bay.

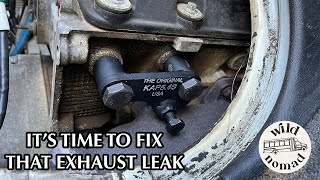

🎬 Watch a full repair walkthrough on an E-Series shuttle bus.Choosing the Right Aftermarket Hardware Kit
When replacing your exhaust manifold hardware, it is critical to use all new studs and nuts; never reuse the old ones. Aftermarket companies have developed solutions that are often considered an improvement over the original factory parts.
- Dorman / Motormite: Dorman is a very common aftermarket choice and offers various kits, sometimes including improved designs or materials to resist corrosion and breakage. They are widely available and provide a reliable, standard replacement solution. Motormite is a brand under the Dorman umbrella.
- Fel-Pro: While best known for gaskets, Fel-Pro also offers hardware kits. These are a solid choice, especially if you are already replacing your manifold gaskets with Fel-Pro products, ensuring compatibility and quality.
Many professional mechanics and experienced owners recommend using aftermarket stainless steel hardware, as it offers better resistance to the rust and corrosion that causes the original studs to fail. When comparing brands, focus on the material (stainless steel is often preferred) and whether the kit includes all necessary components for one or both sides of the engine.
Frequently Asked Questions (FAQ)
Why did my original Ford E-450 exhaust studs break?
The original studs fail due to a combination of factors: constant heat cycling (expansion and contraction) weakens the metal, and corrosion from moisture and road salt causes them to rust and seize. This combination of stress and degradation eventually causes the studs to snap, most commonly at the rear of the cylinder head.
Can I just replace the one broken stud?
It is strongly recommended to replace all the studs and nuts on the affected manifold at the same time. If one stud has failed, the others have been subjected to the same stress and are likely to fail soon. Replacing them all at once saves you from having to repeat this difficult repair in the near future.
Do I need special tools for this job?
Yes, most likely. If any studs break off inside the cylinder head, you will need a stud extractor kit, a right-angle drill, and potentially a welder to attach a nut to the broken stud for removal. 🎬 See how to remove broken studs using the welding method. Due to the high probability of broken studs, it's best to be prepared with these tools before you begin.
Should I use anti-seize on the new studs?
Yes. Applying a high-temperature anti-seize compound to the threads of the new studs before installation can help prevent them from seizing in the cylinder head, which will make future repairs much easier. However, always follow the torque specifications provided with your new hardware, as anti-seize can affect torque readings.
Helpful Videos
Technical Specifications
OEM Part Numbers: W701706-S440
Hardware kits typically include M8-1.25 x 56mm studs and corresponding M8-1.25 nuts. Always verify the fitment for your specific engine (V8 or V10) and model year.
