Audi Q7 (2012-2022) Secondary Air Injection Pump Guide
Understanding the common check engine light causes and replacement options for your Q7's secondary air injection pump.
- Codes P0491/P0492 are more often caused by clogged air passages than a bad pump; proper diagnosis is essential.
- If replacing the pump due to water damage, you must also replace the combi (check) valve to prevent the new pump from failing.
- Driving with a failed pump is safe and won't harm the engine, but it will cause an automatic emissions test failure.
- An aftermarket pump from a brand like Hella or Vemo can offer OEM-like quality for a significantly lower price.
Is a Bad Secondary Air Pump a Serious Problem?
When the secondary air injection pump fails on your Audi Q7, the most common and immediate symptom is the check engine light. You might also hear a loud noise, like a vacuum cleaner or a small jet engine, for the first minute after starting the car cold. This noise is the pump's motor failing. While the engine itself will run fine with no loss of power, a bad pump will cause your vehicle to automatically fail an emissions test.
The Real Issue: Carbon Buildup

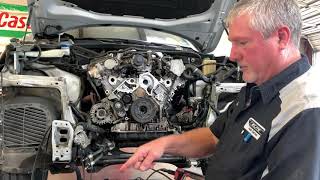

For many 2012-2022 Audi Q7 models, the check engine light codes P0491 and P0492 (Insufficient Flow) are often caused by carbon-clogged air passages inside the cylinder heads, not a failed pump. Audi has a Technical Service Bulletin (TSB) describing this exact issue. If the passages are blocked, replacing the pump will not fix the problem and the check engine light will return. It is critical to diagnose the system properly before buying parts. 🎬 Watch Edge Motors diagnose Audi secondary air flow codes A mechanic can test the pump and check for blockages.
Choosing the Right Aftermarket Pump
When shopping for a replacement secondary air pump, you'll find several aftermarket options. Since the OEM part can be very expensive, a quality aftermarket unit is a smart choice for many owners. Here’s a look at the common brands available:
- Hella: Hella is often an Original Equipment Manufacturer (OEM) for German brands like Audi. Choosing a Hella pump is as close to buying the dealer part as you can get, without the high price tag. Quality and fit are generally considered excellent.
- Vemo: Vemo is another well-regarded German aftermarket brand that specializes in electronic components and engine management parts. They are known for producing quality parts that are a reliable alternative to OEM.
- Dorman: Dorman is a widely available brand that produces a vast range of aftermarket parts. While their quality can sometimes be inconsistent depending on the specific part, they offer a direct-fit replacement that meets original design specifications and often comes at a lower price point.
Pro Tip: Check the Relay and Valve
The most common reason these pumps fail is due to moisture getting inside from a faulty check valve (also called a combi valve). If you find water in the old pump or its hoses, you must replace the check valve too. Otherwise, your new pump will fail quickly for the same reason. Also, it's wise to check the pump's fuse and relay, as these are simple, inexpensive fixes that can sometimes be the root of the problem.
Cost of Replacing an Audi Q7 Secondary Air Pump
The cost to replace the pump can vary significantly. An independent shop will be much more affordable than the dealer. The biggest factor is whether you are just replacing the pump or if the mechanic needs to perform the extensive carbon cleaning service described in the TSB.
| Part / Service | Estimated Cost |
|---|---|
| New OEM Pump | $840 - $1005 |
| New Aftermarket Pump | $352 - $699 |
| Shop Labor (Pump Only) | $150 - $250 |
| Shop Labor (Carbon Cleaning) | $1700 - $3000+ |
Frequently Asked Questions
Where is the secondary air pump located on the Audi Q7?
The secondary air injection pump on the Audi Q7 (3.0T engine) is located on the front passenger side of the vehicle. It is typically accessed by removing the front passenger wheel and the wheel well liner.
What are the main symptoms of a bad secondary air pump?
The most common symptoms are an illuminated Check Engine Light with codes like P0411, P0491, or P0492, and a loud whining or roaring sound from the engine bay for about a minute on cold starts. 🎬 Watch this overview of bad air pump symptoms and costs In some rare cases, it can cause a brief rough idle right after starting.
Can I replace the Audi Q7 air pump myself?
Yes, for a skilled DIY mechanic, this is a feasible job. It requires jacking up the car, removing the passenger wheel and liner, and potentially loosening the corner of the front bumper for clearance. However, if the problem is carbon buildup, that cleaning procedure is very intensive and best left to a professional shop.
🎬 See this step-by-step Audi 3.0T air pump replacement videoIs there a recall for the Audi Q7 secondary air injection pump?
No, there are no specific safety recalls for the secondary air injection pump on these vehicles. However, Audi has issued a Technical Service Bulletin (TSB) acknowledging the common problem with carbon buildup in the air passages, which causes similar symptoms.
Helpful Videos
Technical Specifications

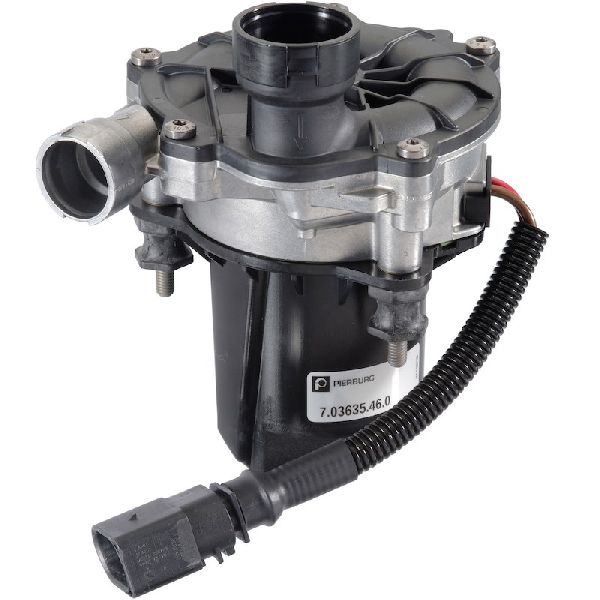

OEM Part Numbers: 06A959253B 06A959253E
Electric air pump for emissions system. Operates only on cold start. Located in the front passenger side wheel well.
