Kia Forte5 Transmission Pan Guide for Model Years 2012-2016
Everything you need to know about replacing the transmission pan on your 2012-2016 Kia Forte5.
- The most common failure is a leak from physical damage or corrosion.
- An aftermarket pan is a cost-effective and reliable alternative to the more expensive OEM part.
- Always use a new gasket when replacing the pan to ensure a proper seal.
- While driving with a minor seep may be possible for a short time, a steady drip requires immediate attention to avoid transmission damage.
Is Your Forte5's Transmission Pan Failing?
The most common reason to replace a transmission pan is due to a leak. These leaks are usually caused by physical damage from road debris, like rocks or deep potholes, or from rust and corrosion over time. A faulty pan gasket can also cause leaks, but if the pan itself is bent, corroded, or cracked, a new gasket won't solve the problem. You might see reddish fluid spots on your driveway or notice your transmission behaving strangely due to low fluid levels.
Symptoms of a Bad Transmission Pan
- Visible Fluid Leaks: The most obvious sign is red or brownish fluid puddles under the front of your car.
- Low Fluid Level: If you check your transmission fluid and it's consistently low without any other explanation, you likely have a leak.
- Shifting Problems: Low fluid can cause delayed or harsh gear shifts, and you might feel the transmission slipping.
- Burning Smell: Leaking fluid can drip onto hot exhaust parts, creating a distinct burning smell.
- Visible Damage: You might be able to see dents, cracks, or heavy rust on the pan itself.
Choosing a New Aftermarket Pan
For the 2012-2016 Kia Forte5, the original equipment (OEM) pan is typically made of stamped steel or plastic. Aftermarket brands like "Replacement" offer a direct-fit alternative that meets original specifications. The primary difference often comes down to cost. An aftermarket pan provides a cost-effective solution that performs the same basic function as the OEM part. Since the transmission pan is not a complex performance part, a standard aftermarket replacement is a reliable and budget-friendly choice for most owners. Some aftermarket pans may even offer benefits like a built-in drain plug, which makes future fluid changes much easier.
Cost Comparison: 2012-2016 Kia Forte5 Transmission Pan
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (e.g., Replacement) | $50 - $75 |
| New OEM (Genuine Kia) | $75 - $125 |
| Shop Labor | $100 - $200 |
Known Issues, Recalls, and Service Bulletins
Searches for the 2012-2016 Kia Forte and Forte5 did not reveal any specific recalls or Technical Service Bulletins (TSBs) directly related to the transmission pan itself. However, there was a recall (SC129) for some Kia models concerning a potentially leaky transmission cooler hose, which could also cause a loss of transmission fluid. It's always a good practice to have a dealer check your VIN for any open recalls.
Frequently Asked Questions (FAQ)
Can I replace just the gasket instead of the whole pan?
You can if the pan itself is not damaged. If the pan is dented, warped, cracked, or severely rusted, a new gasket alone will not create a proper seal, and the leak will continue. The pan must be in good condition for a gasket-only replacement to be effective.
Do I need special tools to replace my transmission pan?
You will need a good socket set, a drain pan for the old fluid, a scraper for the old gasket material, and a torque wrench to tighten the bolts to the correct specification. For the Forte5, you may also need to remove other components like the battery and air intake to get enough access. It's a manageable DIY job for someone with some mechanical experience.

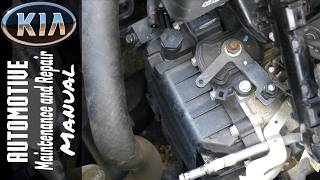

🎬 Watch a step-by-step guide on Kia Forte trans-axle service.Does this aftermarket pan come with a new gasket and bolts?
Some aftermarket kits include a new gasket and even a drain plug, while others do not. It is highly recommended to use a new gasket during installation. Reusing the old gasket is not advised. Always check the product description to see what is included.
Is an aftermarket pan as good as the original Kia part?
For a part like a transmission pan, a quality aftermarket version is a perfectly acceptable replacement. Brands like Replacement, Dorman, and others produce pans that are designed to be direct-fit replacements and offer similar durability to the original for containing fluid. The main advantage is often a lower price.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4528023800 4528023001 482802H000 452803B821
Material: Stamped Steel or Plastic. Bolt Holes: 19. Gasket Type: One Piece.
