Ram 1500 A/C Evaporator Core Guide for 2011-2024 Models
Is your Ram 1500's A/C blowing warm? Here's what you need to know about replacing the evaporator core.
- Evaporator replacement is a very labor-intensive job requiring complete dashboard removal, making labor the most expensive part of the repair.
- Due to the high labor cost, using a high-quality Mopar or top-tier aftermarket part is strongly recommended to avoid having to do the job twice.
- While the dash is removed, it is best practice to also replace the heater core, expansion valve, and blend door actuators to save on future labor costs.
- For 2019-2020 models, a TSB exists for poor A/C performance that involves replacing the HVAC housing and evaporator.
Symptoms of a Failing A/C Evaporator Core
When an evaporator core fails in your Ram 1500, the signs are usually hard to ignore. The most common failure is a leak, which lets refrigerant escape. Since the part is inside the cabin, you might notice symptoms inside the truck first.
- Warm Air From Vents: This is the most obvious symptom. If the refrigerant has leaked out, there's nothing to cool the air.
- Sweet or Chemical Smell: Refrigerant has a distinct, slightly sweet smell. If you notice this inside your truck, it's a strong sign of an evaporator leak.
- Musty or Moldy Odor: A smell like dirty socks can mean mold is growing on the evaporator. This happens when condensation doesn't drain properly.
- A/C Compressor Doesn't Turn On: Your A/C system has pressure switches that prevent the compressor from running if the refrigerant level is too low. This is to protect the compressor from damage.
- Fog or Mist from Vents: In cases of a large leak, you might see a mist of refrigerant coming from the vents 🎬 Watch: Professional tips for diagnosing a leaking evaporator core when you first turn on the A/C.
- Water on Passenger Floor: The evaporator drain can get clogged, causing water to back up and leak into the passenger footwell.
Known Issues and TSBs
For 2019-2020 Ram 1500 models, Chrysler issued Technical Service Bulletin (TSB) 24-001-20 🎬 Watch: 2020 Ram 1500 heater core and HVAC housing guide for poor A/C performance, like slow cool-down times or the left vents blowing warmer than the right. This TSB involves a redesigned HVAC housing that includes a new evaporator. While no specific recalls exist for evaporator failure across the 2011-2024 range, several recalls for the HVAC system have been issued for issues like non-functioning defrost systems.
Choosing the Right Aftermarket Evaporator Core

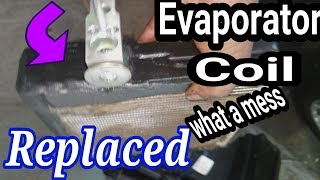

Replacing the evaporator core is a huge job because the entire dashboard has to be removed. 🎬 See this step-by-step DIY evaporator and heater core replacement Because the labor is so expensive, choosing a quality part is critical to avoid doing the job twice. Here's a breakdown of the available brands.
Brand Tiers

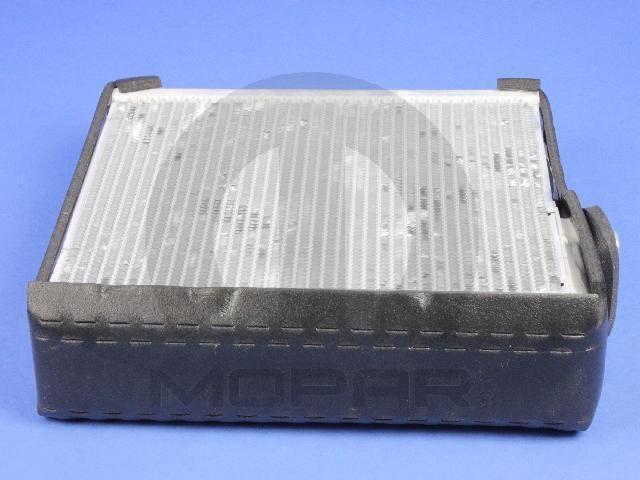

- Tier 1: Mopar (OEM)
Mopar is the original equipment manufacturer. It offers the best guarantee of fit, performance, and longevity. Mechanics often recommend sticking with the OEM part for a job this difficult, as aftermarket parts may not fit perfectly in the HVAC box, requiring modifications with foam to seal gaps. While it's the most expensive option, it provides peace of mind. - Tier 2: Spectra Premium
Spectra is often considered a higher-quality aftermarket brand. While significantly cheaper than Mopar, they generally have a decent reputation for fit and function. If you're trying to save money compared to the dealer, Spectra is a common choice. - Tier 3: Four Seasons & Global Parts (GPD)
Four Seasons and GPD are popular budget-friendly brands. Some users report good experiences, finding they fit well and cool effectively. However, with any budget part, there's a higher risk of inconsistent quality control. Given the 8-12 hours of labor involved, saving a little on the part can be a big gamble.
Pro Tip: Replace More Than Just the Evaporator
Since the entire dashboard will be out, it is highly recommended to replace other components inside the HVAC box at the same time. This includes the heater core, expansion valve, and all the blend door actuators. The cost of these extra parts is small compared to the labor cost of accessing them again if they fail later.
Cost to Replace Ram 1500 A/C Evaporator
| Item | Estimated Cost |
|---|---|
| New Aftermarket Evaporator Core | $87 - $447 |
| New OEM (Mopar) Evaporator Core | $325 - $584 |
| Shop Labor | $848 - $1,500+ |
| Total Estimated Cost | $1,293 - $1,899+ |
Note: Prices are estimates and can vary based on location, vehicle year, and the specific parts used. The total cost includes the part, labor for installation, and recharging the A/C system.
Frequently Asked Questions
Why is replacing an evaporator core so expensive?
The high cost is almost entirely due to labor. The evaporator is located inside the HVAC housing, which is buried deep behind the dashboard. To access it, a mechanic must remove the steering column, center console, and the entire instrument panel assembly. This process can take 8-12 hours, making labor the biggest part of the bill.
Can I drive my Ram 1500 with a bad evaporator core?
Yes, you can drive the truck, but you won't have working air conditioning. If the defrost system is affected, it could be a safety issue in cold or humid weather due to poor visibility.
Is a musty smell from my vents always a bad evaporator?
Not always, but it's a common cause. The smell comes from mold and mildew growing on the damp core. Sometimes, the problem is just a clogged evaporator drain tube, which prevents condensation from escaping. Cleaning the drain tube is a much easier first step before assuming the core itself is bad.
Should I use an A/C stop-leak product?
Most professional mechanics advise against using stop-leak products. While they might offer a temporary fix for a very small leak, they can also clog other critical and expensive components of your A/C system, like the expansion valve or receiver/drier, leading to more costly repairs down the road.
Helpful Videos
Technical Specifications

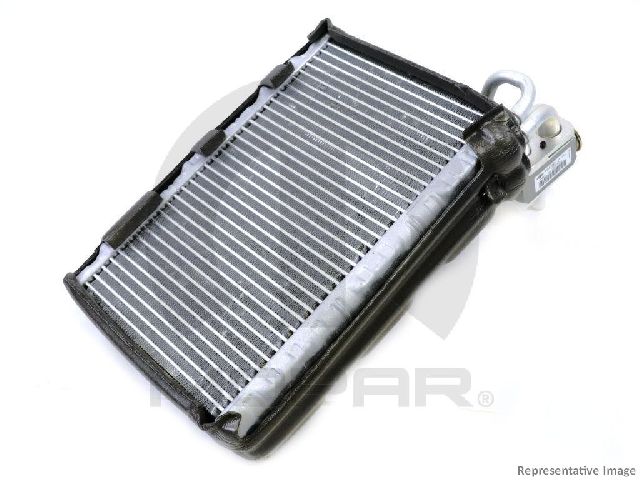

OEM Part Numbers: 68138270AB 68138270AA 68004242AA
Material: Aluminum. Inlet/Outlet Type: Block Fitting. Core dimensions vary by specific part number and year.
