Ram 2500 Speed Sensor Guide: Diagnosing Failures from 2011-2020
Erratic shifting or a dead speedometer on your Ram 2500 often points to a simple speed sensor failure.
- Speedometer and shifting problems usually indicate a faulty Vehicle Speed Sensor (VSS) on the transmission or differential.
- ABS and traction control lights are the most common symptom of a failed wheel speed sensor.
- Using an OBD-II scanner is the most effective way to identify which specific sensor has failed.
- For this part, a new aftermarket sensor offers a significant cost saving and is a reliable option for a DIY repair.
Understanding Speed Sensor Problems on Your Ram
When a speed sensor fails on your 2011-2020 Ram 2500, the symptoms can be confusing. Your truck might seem to have a major transmission problem or a serious brake issue, but the root cause is often a faulty sensor sending bad information. There are two main types of speed sensors to be aware of: the transmission or rear differential Vehicle Speed Sensor (VSS) and the individual wheel speed sensors (ABS sensors). Identifying which one has failed is key to a quick and affordable repair.
Common Symptoms of a Bad Speed Sensor
The symptoms your truck exhibits are the best clue to which sensor is failing. A problem with the main VSS will typically affect the powertrain, while a bad wheel speed sensor will trigger brake system warnings.
- Harsh or Erratic Shifting: If the transmission control module doesn't get a correct speed signal, it can't time shifts properly. This can feel like the transmission is failing, with hard shifts, delayed shifting, or getting stuck in one gear.
- Speedometer Not Working: A speedometer that reads zero, jumps around, or is clearly incorrect is a classic sign of a VSS failure.
- ABS and Traction Control Lights On: If the ABS, ESC, or traction control warning lights are illuminated on your dash, it almost always points to a problem with one of the wheel speed sensors or the related wiring.
- Cruise Control Inoperative: The cruise control system relies on a steady speed signal to function. If the signal is erratic or missing, the cruise control will not engage.
Known Issues: TSB for Rear Wheel Speed Sensors
Ram issued Technical Service Bulletin (TSB) 05-004-24 for some 2019-2024 models that may also be relevant to earlier years. It notes that driving over rumble strips could cause the ABS and ESC lights to come on, setting error codes C003A-2F or C0037-2F due to an erratic rear wheel speed sensor signal. The fix is to replace the faulty rear wheel speed sensor(s). A TSB is not a recall, but an instruction from the manufacturer to dealers on how to fix a known problem.
Choosing the Right Aftermarket Speed Sensor
When replacing a speed sensor, you don't necessarily need to buy the expensive OEM part. For a component like this, a quality aftermarket sensor provides a reliable and cost-effective solution. Brands in the 'Replacement' tier are designed to meet original specifications for fit and function, offering a dependable repair without the high cost of dealer parts. Since these are simple electronic components, the key is to ensure you are buying the correct sensor for your truck's specific location (e.g., front wheel, rear differential, or transmission) and configuration (2WD vs 4WD).
| Part Type | Price Range |
|---|---|
| New OEM | $60 - $110 |
| New Aftermarket (Replacement) | $26.67 - $31.71 |
| Shop Labor | $100 - $200 |
Replacing Your Ram 2500 Speed Sensor
This is a job that a confident DIYer can handle. There are two common locations, each with a slightly different procedure.
- Transmission Output Speed Sensor: This sensor is typically found on the driver's side of the transmission towards the rear. It is usually held in by a single 8mm bolt. The process involves safely raising the vehicle, unplugging the electrical connector, removing the bolt, and pulling the old sensor out.
- Wheel Speed (ABS) Sensor: These are located at each wheel hub. The front sensor is held by a 5mm Allen bolt. Access requires removing the wheel. The sensor wire is routed along the frame and needs to be unclipped before the sensor can be fully removed. These sensors can sometimes seize in the hub and require gentle persuasion to remove.
Pro Tip: Before installing the new sensor, clean the mounting surface thoroughly to ensure it sits correctly. For sensors with an O-ring, applying a small amount of clean transmission fluid to the ring can make installation easier and prevent damage.
Frequently Asked Questions
How many speed sensors are on a 2011-2020 Ram 2500?
A Ram 2500 has multiple speed sensors. There is one wheel speed sensor at each of the four wheels, and at least one vehicle speed sensor on the transmission or rear differential, depending on the specific year and drivetrain configuration.
What's the difference between a wheel speed sensor and a vehicle speed sensor?
A wheel speed sensor (or ABS sensor) measures the rotation speed of an individual wheel for the ABS and stability control systems. A vehicle speed sensor (VSS) measures the overall speed of the truck, typically from the transmission output shaft or differential, for the speedometer and transmission control.
How do I know which sensor is bad?
The best way is to use an OBD-II scanner that can read ABS and transmission codes. A code like P0500 points to the main VSS, while codes starting with 'C' (like C0037) point to a specific wheel speed sensor. The symptoms are also a strong clue: shifting problems point to the VSS, while ABS lights point to a wheel sensor.
Are any special tools required for replacement?
No, replacement typically requires only basic hand tools like a socket set, ratchets, and possibly a set of Allen wrenches. A floor jack and jack stands are necessary for safely accessing the sensors. Penetrating oil can be helpful if a sensor is stuck.

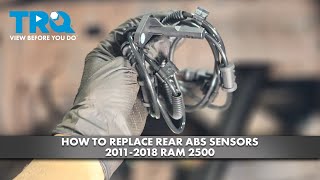

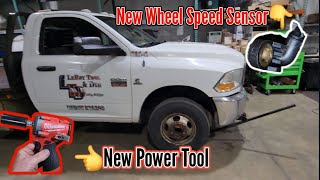

Helpful Videos
Technical Specifications
Sensors vary based on location (front wheel hub, rear differential, transmission) and drivetrain (2WD vs 4WD). Always verify fitment for your specific vehicle configuration before ordering.
