Ford Fiesta Washer Pump Replacement Guide (2011-2019)
If your windshield washers aren't spraying, this guide explains the common causes and how to fix it.
- The 2011-2019 Fiesta uses a single, reversible pump for both front and rear washers.
- Before replacing the pump, always check Fuse F15 behind the glove box.
- Failure is common, but replacement is an easy DIY job accessed through the passenger-side wheel well.
- Weak spray is often caused by a clogged pump filter from mixing washer fluid types, not a failed pump.
Is Your Windshield Washer Pump Failing?
A non-working windshield washer can be a safety issue, especially in bad weather. For the 2011-2019 Ford Fiesta, the cause is usually a simple failure of the pump itself or a clog in the system. Here are the common signs that your washer pump has problems.
Symptoms of a Bad Washer Pump
- No Fluid Spray: The most obvious symptom. When you activate the washer switch, nothing comes out of the nozzles for either the front or rear windows.
- No Pump Sound: You should hear a distinct humming sound from the front passenger side of the car when the washer is activated. If it's silent, the pump motor has likely failed or isn't getting power.
- Pump Runs, But Spray is Weak: If you hear the pump hum but the spray is weak or absent, the pump's inlet filter is likely clogged. This often happens when different brands or types of washer fluid are mixed, creating a gel-like slime that blocks the system.
- Fluid Leaking: You might find a puddle of washer fluid under the front passenger side of the car. The pump's seals can fail over time, or the housing can crack, causing leaks.
- Strange Electrical Behavior: A common issue reported by Fiesta owners is that the wipers will cycle when the pump is electrically disconnected, but nothing happens when it's plugged in. This often indicates a shorted or failed pump is confusing the vehicle's computer (BCM).
Check the Fuse First

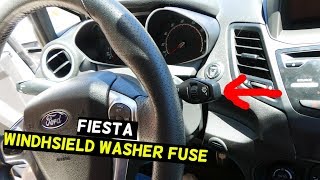

Before you buy a new pump, always check the fuse. A blown fuse is a simple and cheap fix. For the 2011-2019 Fiesta, the washer pump fuse is typically Fuse F15 (a 15-amp fuse) located in the fuse panel behind the glove box.
🎬 See exactly where to find the washer pump fuse.Known Issues, Recalls, and TSBs
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the windshield washer pump on the 2011-2019 Ford Fiesta. While other Ford models have had recalls related to wiper motors or contaminated fluid, these do not apply to this generation of Fiesta.
Choosing a New Aftermarket Washer Pump
For a straightforward component like a washer pump, an aftermarket part is a reliable and budget-friendly choice for your Fiesta. The original Ford (Motorcraft) part works well, but you are not sacrificing quality by choosing a good aftermarket option. Brands like Trico and ACI are well-known in the industry and produce direct-fit replacement pumps that install without any modifications. Aftermarket "Replacement" branded parts offer a cost-effective solution that meets original equipment specifications for fit and function.
DIY Replacement Guide
Replacing the washer pump on a 2011-2019 Fiesta is a simple job that most DIYers can do at home in under an hour with basic tools.
- Access the Pump: The pump is located at the bottom of the washer fluid reservoir, which is inside the front passenger-side wheel well.
- Lift the Vehicle: Safely jack up the front passenger side of the car and secure it with a jack stand.
- Remove Wheel & Liner: Remove the front passenger wheel. Then, remove the screws or clips holding the plastic fender liner and pull it back to expose the washer reservoir and pump.
- Replace the Pump: Place a bucket underneath to catch any remaining fluid. Disconnect the electrical connector and the washer hoses from the old pump. The pump is press-fit into a rubber grommet; simply pull it straight out of the reservoir.
- Install New Pump: Clean the area and press the new pump firmly into the rubber grommet. Reconnect the hoses and electrical plug, refill the reservoir, and test the front and rear washers before reassembling the fender liner and wheel. 🎬 Watch this step-by-step walkthrough of the pump replacement process.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Ford/Motorcraft) | $50 - $80 |
| New Aftermarket | $25 - $40 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Is the front and rear washer pump the same on a Ford Fiesta?
Yes, the 2011-2019 Ford Fiesta uses a single pump for both the front and rear washers. The motor reverses direction to send fluid to the correct nozzles.
Where is the washer pump located on my Fiesta?
The pump is press-fit into the bottom of the washer fluid reservoir. You can access it by removing the front passenger-side wheel and pulling back the plastic fender liner.
Can I replace the washer pump myself?
Yes, this is considered an easy DIY job for most people. It requires basic hand tools, a jack, and jack stands, and typically takes less than one hour.
Why do I hear the pump but no fluid comes out?
This is a classic sign of a clogged inlet filter at the base of the pump. This can happen from debris or from mixing different types of washer fluid, which can form a gel. The fix is to remove the pump and clean the small filter screen.
🎬 Watch how to diagnose and repair a clogged washer system.Helpful Videos
Technical Specifications
OEM Part Numbers: 8A61-17K624-AA 1514079 1698640
Dual-outlet, reversible 12V pump with a 2-pin connector. Mounts to the washer fluid reservoir via a rubber grommet.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
