Dodge Durango ABS Wheel Speed Sensor: A Guide for 2011-2016 Models
If your Durango's dashboard is lit up with ABS and traction control warnings, a bad wheel speed sensor is the most likely cause.
- An illuminated ABS and traction control light is the number one sign of a failed wheel speed sensor.
- A diagnostic scan is required to identify which specific wheel sensor has failed.
- Quality aftermarket brands like Delphi, Dorman, and Standard Ignition offer a reliable, cost-effective alternative to OEM parts.
- Replacement is a manageable DIY job, but be prepared for the old sensor to be seized in the hub due to rust.
Is Your Durango Showing ABS and Traction Control Lights?
When you see the ABS and traction control (sometimes shown as ESP or a car with squiggly lines) warning lights on your 2011-2016 Dodge Durango's dashboard, it's a clear sign that the safety systems have detected a problem. More often than not, the culprit is a failed ABS wheel speed sensor. While the vehicle's main brakes will still work, the anti-lock and stability control features will be disabled until the issue is fixed.
Common Symptoms of a Failing ABS Sensor
A bad wheel speed sensor will give you clear warning signs. Look out for:
- ABS Warning Light: This is the most common and direct symptom.
- Traction/Stability Control Light: Because this system uses the same sensors, this light will almost always come on with the ABS light.
- Service AWD Light: On all-wheel-drive models, a sensor failure can also trigger this warning.
- Brakes Locking Up: During a hard or sudden stop, you may feel the wheels lock and skid, as the anti-lock function is not working.
- Pulsating Brake Pedal (at the wrong times): The ABS system might activate incorrectly at low speeds, causing a vibration in the pedal.
- Cruise Control Not Working: Many vehicles disable cruise control when an ABS fault is detected.
Known Issues: Sensor vs. Module
While searches show several ABS-related recalls for the Dodge Durango, they primarily concern the main ABS control module for model years outside the 2011-2016 range (like 2018-2019 and 2022). There are no widespread recalls specifically for the wheel speed sensors on 2011-2016 models. A diagnostic scan is essential to confirm if the problem is a specific sensor 🎬 Watch: How to diagnose the exact cause of your ABS light or the more complex control module.
Choosing the Right Aftermarket ABS Sensor
You don't need to buy an expensive OEM part from the dealer. For a part like this, a quality aftermarket sensor can provide the same performance for a fraction of the price. However, not all brands are created equal. Here’s a breakdown of what to look for.
Premium Aftermarket (OEM Quality)
These brands are known for engineering parts that meet or exceed original equipment standards. They are a reliable choice for a long-term repair.
- Delphi: Widely regarded as a top-tier brand that also manufactures original parts for many carmakers. A Delphi sensor is a trusted, high-quality choice.
- Standard Ignition (SMP): A long-standing, reputable name in the aftermarket for electronic parts, offering reliable quality.
Standard Aftermarket (Reliable & Value-Priced)
These brands offer a great balance of quality and price. They are the go-to for many DIYers and independent shops.
- Dorman: A popular brand that engineers direct-fit replacement parts. They are known for providing a cost-effective solution that matches the original's fit and function.
- Holstein: This brand focuses on using quality materials and offers a good warranty, making them a solid value-based option. Forum users report positive experiences with them.
Economy Aftermarket (Budget-Focused)
These brands can save you money upfront, but quality can be inconsistent. They might be suitable for an older vehicle or if you're on a tight budget, but be aware of the potential for a shorter service life.
- Crown Automotive: Known primarily for Jeep parts, opinions on Crown are mixed. Some find them to be a step up from no-name parts, while others report issues with fit and durability.
- Walker Products: An established brand offering a wide range of sensors at a budget-friendly price point.
Pro Tip: Replace in Pairs?
ABS sensors don't always fail at the same time. While a diagnostic scan can pinpoint the exact failed sensor, some mechanics recommend replacing them in pairs on the same axle (both front or both rear). This is because they have been exposed to the same conditions and mileage, so if one has failed, the other may not be far behind.
Estimated Replacement Costs
The cost to replace an ABS sensor on a 2011-2016 Durango can vary. The part itself is affordable, but labor can add up if the old sensor is difficult to remove.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket ABS Sensor | $40 - $95 |
| New OEM ABS Sensor | $100 - $150 |
| Shop Labor | $100 - $200 |
| Total (DIY) | $40 - $95 |
| Total (Installed at Shop) | $140 - $295 |
Frequently Asked Questions
Can I replace a Durango ABS sensor myself?
Yes, this is a very DIY-friendly job for someone with basic tools. The sensor is held by a single 10mm bolt. 🎬 See this walkthrough for replacing a Durango wheel speed sensor The biggest challenge is that the old sensor can get rusted into the wheel hub, making it hard to remove. Be sure to thoroughly clean the mounting hole before installing the new sensor.
Which sensor is bad? Front, back, left, or right?
You cannot know which sensor has failed just by the warning light. You need to use an OBD2 scanner that can read ABS codes. The code will point to the specific wheel sensor that has a fault (e.g., 'Left Front Wheel Speed Sensor Circuit Malfunction'). Most auto parts stores can perform this scan for free.
What happens if I don't replace a bad ABS sensor?
Your normal brakes will still work, but you will not have anti-lock brakes, traction control, or stability control. This significantly reduces your vehicle's safety in emergency braking or slippery conditions, increasing the risk of a crash. It's highly recommended to get it fixed promptly.
Do I need to reset the ABS light after replacement?
Usually, the ABS light will turn off on its own after driving a short distance once the new sensor is installed and the computer confirms it's working. However, it's always a good practice to use a scan tool to clear any stored fault codes from the system after the repair is complete.
Helpful Videos

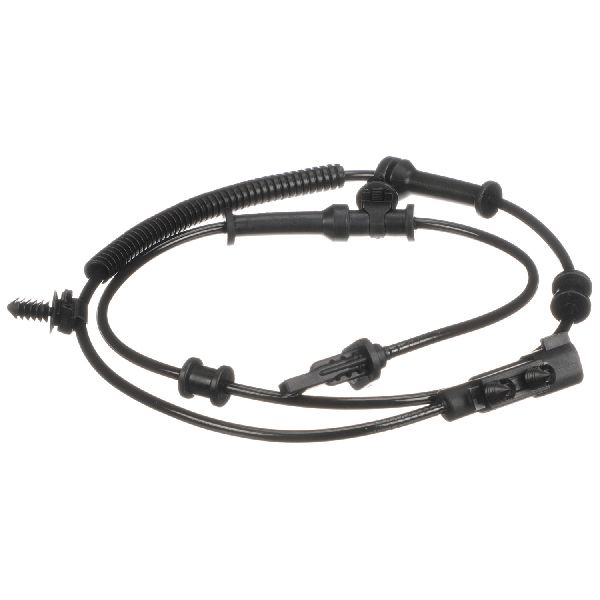

Technical Specifications
OEM Part Numbers: 5154230AF
The ABS wheel speed sensor for the 2011-2016 Dodge Durango is a magnetic sensor that mounts to the wheel hub/knuckle assembly. It connects via a wiring harness with a 2-prong terminal to the main vehicle harness. The new part should include the sensor, wire harness, and integrated mounting clips.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
