A Guide to the Mass Air Flow Sensor for the 2010-2019 Chevrolet Cruze
Understand why a failing Mass Air Flow (MAF) sensor can cause engine problems in your Cruze and how to choose the right replacement.
- For the 1.4L turbo engine, always investigate the PCV system for leaks before replacing the MAF sensor, as this is a very common cause for MAF-related codes like P1101.
- Due to the Cruze's sensitivity, it is highly recommended to use an OEM (ACDelco) or top-tier OE brand (Bosch, Delphi) sensor to avoid compatibility issues.
- Replacing the MAF sensor is a simple DIY task that requires basic tools and can be completed in under 30 minutes.
- Ensure you are buying the correct part for your specific year and engine (1.4L, 1.8L, or 1.6L Diesel), as sensors differ between generations and engines.
Symptoms of a Failing MAF Sensor in a Chevy Cruze
When a MAF sensor starts to fail, it sends incorrect data to the car's computer, leading to a range of engine performance issues. You might notice one or more of the following signs. It is important to note that on the 1.4L turbo engine, many of these symptoms can also be caused by a faulty PCV system, which is a very common issue and should be investigated before replacing the MAF sensor.
Check Engine Light and Diagnostic Codes
The most obvious sign is an illuminated Check Engine Light. Common codes associated with a failing MAF sensor on the Cruze include P0101 (Mass Air Flow Sensor Circuit Range/Performance), P0102 (MAF Sensor Circuit Low), and P1101 (MAF Sensor Out of Self-Test Range). Codes like P0096, P0097, and P2199, which relate to the integrated intake air temperature sensor, can also point to a faulty MAF assembly.
Is it the MAF Sensor or Something Else?
For the 2011-2016 Cruze with the 1.4L turbo engine, it is extremely common for MAF sensor codes like P1101 to be triggered by problems elsewhere. Before you replace the sensor, check for these known issues:
- PCV System Failure: A failed check valve in the intake manifold or a torn diaphragm in the valve cover can create a vacuum leak that the ECM interprets as a MAF sensor problem. GM issued a special warranty extension for this issue, so it may be repaired at no cost at a dealership.
- Air Intake Leaks: A loose or cracked air intake hose between the MAF sensor and the throttle body can let unmetered air into the engine, causing similar symptoms and codes.
- Dirty Throttle Body: A carbon-caked throttle body can also disrupt airflow and trigger a P1101 code. Cleaning it is often a simple fix.
- Contaminated Sensor: Oil or dirt on the sensor's delicate wires can cause incorrect readings. Sometimes, cleaning the sensor with a dedicated MAF sensor cleaner can restore its function.
Choosing the Right Aftermarket MAF Sensor
While many aftermarket parts offer good value, engine sensors on the Cruze can be sensitive to calibration differences. Owner experiences suggest that using an OEM or OE-equivalent part is often the best choice to avoid further issues.
Tier 1: OEM & OE Brands
These brands are either the original equipment manufacturer or have a strong reputation for meeting GM's exact specifications. They are the most recommended choice for reliability.
- ACDelco (GM Original Equipment): This is the official GM part, ensuring a perfect fit and correct calibration for your Cruze. It's the safest, most reliable option.
- Bosch: Bosch is a well-regarded OE manufacturer for many GM parts, including MAF sensors. Their sensors are considered a top-tier alternative to ACDelco.
- Delphi: As a major OE supplier, Delphi sensors are designed to meet or exceed original standards and are a trusted choice for replacement.
Tier 2: Reputable Aftermarket Brands
These brands offer a balance of quality and value, but be aware that some vehicles may be sensitive to minor calibration differences.
- Standard Motor Products (SMP): A well-known aftermarket brand that often re-boxes OE parts or manufactures to high standards.
- Walker Products: This brand emphasizes that its sensors are 100% new, not remanufactured, and are engineered and tested to OE specifications.
Tier 3: Economy Brands
These brands offer the lowest price point but come with a higher risk of premature failure or incorrect readings, which can cause persistent driveability problems.
- Cardone (Remanufactured): Cardone primarily offers remanufactured sensors. While they are tested to meet OE output curves, some users report issues with remanufactured electronics.
- DriveWire, Global Parts, Hella, Spectra: These brands fall into the budget category. While they may function, their long-term reliability and calibration accuracy can be inconsistent.
A Note on Cruze Generations
The Chevrolet Cruze has two generations in this period: Gen 1 (2010-2016) and Gen 2 (2016.5-2019). The 1.4L turbo engine in the second generation is a different design (LE2) from the first generation's engine (LUJ/LUV). Always confirm the part number fits your specific year and engine, as they are not always interchangeable.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco/GM) | $90 - $230 |
| New Aftermarket (Bosch, Delphi) | $65 - $130 |
| New Aftermarket (Other) | $64 - $183 |
| Remanufactured (Cardone) | $155+ |
| Shop Labor | $44 - $95 |
Frequently Asked Questions (FAQ)
Can I just clean my Cruze's MAF sensor instead of replacing it?
Sometimes, yes. If the sensor is contaminated with dirt or oil, cleaning it with a dedicated MAF sensor cleaner spray can solve the problem. However, if the sensor's electronics have failed internally, cleaning will not help, and replacement is necessary. Never touch the delicate sensor wires with your fingers or a tool.
How difficult is it to replace the MAF sensor myself?
Replacing the MAF sensor on a Chevrolet Cruze is a relatively easy job for a DIYer. It is located on the air filter housing and is typically held in place by two screws. The process involves disconnecting the battery, unplugging the electrical connector, removing the screws, swapping the sensor, and then reassembling. The entire job usually takes less than 30 minutes.
My car has a P1101 code. Should I replace the MAF sensor?
Not necessarily, especially on the 1.4L turbo engine. The P1101 code is very frequently caused by a vacuum leak from the PCV system. Before buying a new sensor, have the PCV check valve in the intake manifold and the diaphragm on the valve cover inspected. Also, check for any cracks or loose connections in the air intake hoses.
Are there any recalls for the MAF sensor on the 2010-2019 Cruze?
There are no specific recalls for the Mass Air Flow sensor itself. However, GM has issued several Technical Service Bulletins (TSBs) and special coverage programs for related issues that can cause MAF sensor codes, such as the PCV system failure and issues with the negative battery cable, which can cause various electrical problems.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12671624 12671616 55498433 13505433 13432262

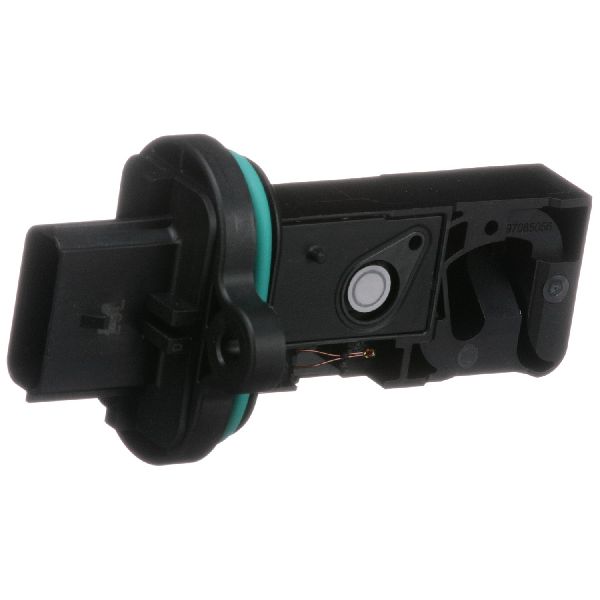

The MAF sensor for the Chevrolet Cruze is a 'sensor only' unit that bolts onto the air filter housing. It typically uses a 5-pin or 8-pin electrical connector, depending on the specific year and engine model. It functions as a hot-wire sensor and often integrates the Intake Air Temperature (IAT) sensor into the same assembly.
