Fixing the HVAC Blend Door Actuator in Your 2010-2016 Jeep Patriot
That annoying clicking noise from your dashboard is a common problem, but it's one you can fix to regain control of your heat and A/C.
- A clicking noise from the dash is the most common symptom of a failed blend door actuator.
- This is a very common failure on the 2010-2016 Jeep Patriot due to weak plastic gears in the original part.
- The temperature blend door actuator is on the driver's side; the recirculation actuator is behind the glove box.
- Replacement is a manageable DIY job for about $35 and 1-2 hours of your time.
Is Your Jeep Patriot Making a Clicking Noise?
One of the most common complaints from 2010-2016 Jeep Patriot owners is a clicking, popping, or tapping sound coming from behind the dashboard. This noise is almost always caused by a failing HVAC blend door actuator. The plastic gears inside the original actuator can strip and break, causing the motor to skip and create the clicking sound as it tries to move the blend door. This often happens when you start the vehicle or change the temperature settings.
Symptoms of a Failing Blend Door Actuator
- Clicking or Tapping Noises: A repetitive clicking from the dash is the number one sign of a bad actuator.
- Temperature Doesn't Match Setting: You might get hot air when you want cold, or cold air when you want heat.
- Stuck on One Temperature: The system may be stuck on full hot or full cold and won't change.
- Air Blows from Wrong Vents: While often a separate "mode door" actuator, sometimes people refer to all HVAC actuators as blend doors. If air is stuck on defrost, for example, it's a similar type of failure.
Choosing the Right Aftermarket Part
For the Jeep Patriot, the original Mopar actuators are known to fail. This is one of those cases where an aftermarket part can be a smart choice. Aftermarket brands often recognize the original design flaw and may offer improved versions. When shopping for a replacement, you'll find several options.

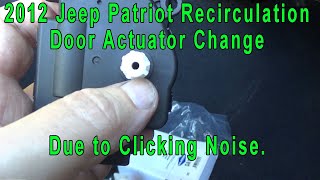

Pro Tip: Your Patriot has three actuators that are often the same part number: one for temperature (blend door), one for airflow direction (mode door), and one for recirculation. The temperature blend door actuator is located on the driver's side, up under the dash toward the center console. The recirculation actuator is behind the glove box. 🎬 See how to change the recirculation door actuator. Identify which one is failing before you order.
Cost of Replacement: 2010-2016 Jeep Patriot
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New Aftermarket | $35 - $40 | A common and cost-effective solution. Brands like Dorman and Duralast are widely available. |
| New OEM (Mopar) | $50 - $100 | While it's an original part, it has the same potential to fail as the one you're replacing. |
| Shop Labor | $120 - $250 | Typically 1-1.5 hours of labor. The job is straightforward but involves working in a tight space. |
Known Issues, Recalls, and TSBs
There are no specific recalls from the National Highway Traffic Safety Administration (NHTSA) for the blend door actuator on the 2010-2016 Jeep Patriot. This is considered a common wear-and-tear item, not a safety defect. While some Technical Service Bulletins (TSBs) exist for HVAC software updates on other Jeep models, none directly address this specific mechanical failure on the Patriot. The failure of the plastic gears is a well-documented issue across owner forums and repair videos.
Frequently Asked Questions (FAQ)
Can I replace the blend door actuator myself?

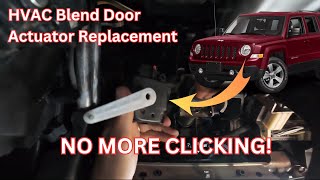

Yes, this is a very DIY-friendly repair for most people with basic tools. It involves removing a lower dash panel on the driver's side to access the actuator. The main challenge is working in a tight, awkward space. 🎬 Watch a step-by-step guide to replacing the actuator. You will likely need a Phillips head screwdriver and possibly an 8mm socket.
How do I know which actuator is bad?
Your Patriot has multiple actuators. If the clicking happens when you change the temperature from hot to cold, it's the temperature blend door actuator. If it happens when you change from dash vents to floor vents, it's the mode door actuator. If the noise occurs when you press the recirculation button, it's the recirculation door actuator.
Do I need to calibrate the new actuator?
While some professional scan tools offer a calibration function, it is generally not required for a DIY replacement. After installing the new part, the system will typically self-calibrate. Simply turn the key on (without starting the engine) and let the system cycle for a minute or two before testing the controls.

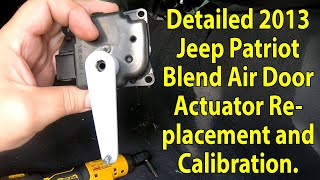

🎬 Watch this detailed replacement and calibration walkthrough.Is an aftermarket actuator a good choice for my Patriot?
Yes. Given that the original OEM part has a high failure rate due to its plastic gear design, a quality aftermarket part is a reliable and budget-friendly option. Many owners successfully use aftermarket brands to solve the problem permanently.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68031892AA
The temperature blend door actuator is located on the driver's side of the center console, under the dashboard. It is typically held in by two Phillips head or 8mm screws. The same part is often used for the mode and recirculation doors.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
