Ford F-150 (2010-2016) Direct Ignition Coil Boot Kit Replacement Guide
Experiencing engine misfires or a rough idle in your F-150? Your ignition coil boots might be the problem.
- Failing coil boots are a very common cause of misfires (P030X codes) and rough running on 2010-2016 F-150s.
- For EcoBoost models, replacing boots and checking spark plug gaps is a known fix for misfires under load, as noted in Ford TSB 14-0160.
- This is an easy and affordable DIY job; replacing all boots and spark plugs at the same time is recommended preventative maintenance.
- Quality aftermarket brands like Denso and Standard Motor Products offer a reliable and cost-effective alternative to OEM parts.
Is Your F-150 Running Rough? It Could Be the Coil Boots.
If your 2010-2016 Ford F-150 is starting to show signs of a rough idle, hesitation when you accelerate, or a new check engine light, failing ignition coil boots are a likely culprit. These rubber boots and their internal springs are critical for a healthy ignition system, but they are also a common wear item. Over time, they are exposed to extreme heat and vibration, which causes the rubber to break down and the spring to lose tension. This can lead to a weak or inconsistent spark, causing a variety of engine performance issues.
Symptoms of Failing Ignition Coil Boots
A failing coil boot will produce the same symptoms as a bad ignition coil or spark plug. The most common signs include:
- Engine Misfires: You may feel a shaking or stumbling from the engine, especially under load (like accelerating or towing). This is often accompanied by a flashing check engine light.
- Rough Idle: The truck may vibrate or run unevenly when stopped at a light.
- Check Engine Light: A solid or flashing check engine light is a sure sign of a problem. Misfire codes like P0300 (random misfire) or P0301-P0308 (specific cylinder misfire) point directly to the ignition system.
- Reduced Power and Acceleration: Your truck may feel sluggish and slow to respond when you press the gas pedal.
- Worse Fuel Economy: When a cylinder isn't firing correctly, your engine burns fuel less efficiently, and you'll notice more frequent trips to the gas station.
Known Issue: EcoBoost Misfires
The 3.5L EcoBoost engines, particularly from 2011-2013, are known for developing misfires under load. Ford issued a Technical Service Bulletin (TSB 14-0160) related to this issue, often caused by failing coil boots that allow moisture in or have carbon tracking. 🎬 Watch: Step-by-step guide to replacing EcoBoost ignition coil boots. Replacing the boots and ensuring spark plugs are correctly gapped is a common fix.
Choosing the Right Aftermarket Coil Boot Kit
When it's time for a replacement, you don't necessarily need to pay for dealership OEM (Original Equipment Manufacturer) parts. Quality aftermarket brands offer reliable performance, often at a better price. For this part, many owners and mechanics agree that replacing just the boots and springs is a cost-effective first step before replacing the entire ignition coil.
Brand Tiers for Your F-150
- Premium Aftermarket (Denso, NGK): Denso is a well-regarded OEM supplier for many manufacturers, and their aftermarket parts are known for quality. Forum users often recommend Denso or NGK as reliable choices that are equivalent to OEM performance. If you want peace of mind without the Motorcraft price tag, these are excellent options.
- Standard Aftermarket (Standard Motor Products): Standard Motor Products (SMP) is a long-standing brand that offers good quality replacement parts. They are a solid, budget-friendly choice that meets or exceeds OE specifications and is trusted by many DIYers and professional shops.
Pro Tip: Use Dielectric Grease
When installing your new coil boots, apply a small amount of dielectric grease to the inside of both ends of the boot. This helps seal out moisture, prevents the boot from getting stuck to the spark plug and coil, and ensures a good electrical connection.
Cost to Replace F-150 Ignition Coil Boots
Replacing coil boots is one of the most affordable ignition repairs. Since you are only replacing the boot and spring, not the entire coil assembly, the parts are inexpensive. It's also a straightforward job for a DIYer with basic tools.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Coil Boot Kit (Set of 6 or 8) | $54.00 - $154.85 |
| New OEM (Motorcraft) Coil Boot Kit (Set of 8) | $55+ |
| Shop Labor Cost | $150 - $250 |
Frequently Asked Questions
Do I need to replace all the coil boots at once?
It is highly recommended. Coil boots and springs wear out at a similar rate due to heat and mileage. If one has failed, the others are likely not far behind. Replacing them all at the same time is good preventative maintenance and can save you from future misfires.
Should I replace the spark plugs at the same time?
Yes, it's a great idea. You already have the coils removed, so accessing the spark plugs is easy. Worn spark plugs can cause a misfire and put extra strain on the ignition system. For EcoBoost engines, correct spark plug gap is critical to prevent misfires.
Is it hard to replace ignition coil boots myself?
No, this is a very DIY-friendly job. You will need basic tools like a ratchet, an extension, and an 8mm socket to remove the coil bolts. The boots simply twist off the coil. The entire job can usually be done in about an hour.

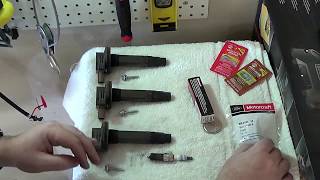

🎬 See this walkthrough for installing new coils and iridium plugs.How do I know if it's the boot or the whole ignition coil?
A common diagnostic trick is to swap the suspect ignition coil with one from a cylinder that is running fine. If you have a code like P0303 (misfire cylinder 3), swap the coil from cylinder 3 with the coil from cylinder 1. Clear the codes and drive. If the code changes to P0301, the entire coil is bad. If the misfire stays on cylinder 3, the problem is likely the spark plug or another issue. Since boots are inexpensive, many owners replace the boots and plugs first before buying a new coil.
🎬 Watch: Expert troubleshooting tips for Ford 3.5L EcoBoost misfire codes.Helpful Videos
Technical Specifications
OEM Part Numbers: 7T4Z12025A

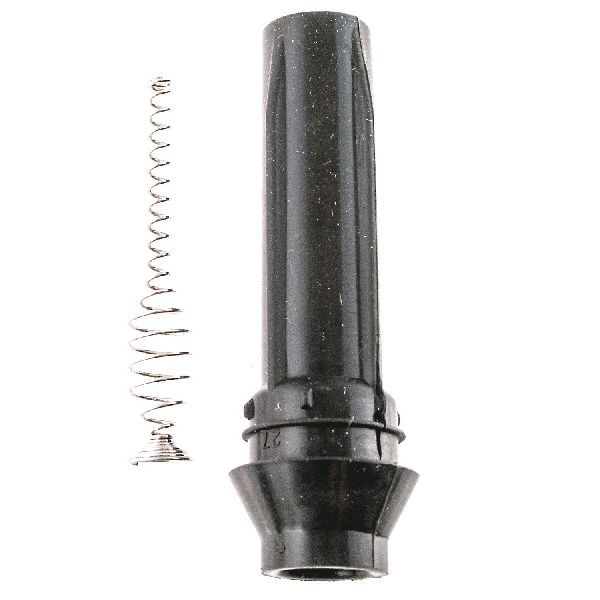

This kit contains the rubber boot and internal contact spring that connects the ignition coil to the spark plug. Made from high-dielectric silicone to withstand high temperatures and prevent voltage leaks. The number of boots required depends on your engine: six for V6 engines (3.5L, 3.7L) and eight for V8 engines (5.0L, 6.2L).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
