A Practical Guide to the Engine Water Pump for 2009-2022 Toyota Highlander
Learn to spot the signs of a failing water pump and choose the right replacement part for your Highlander.
- Choose an Aisin brand water pump for OEM quality without the dealership price.
- The V6 Highlander water pump is a known failure point; look for 'pink crust' as an early warning sign.
- To save on labor, replace the serpentine belt and thermostat at the same time as the water pump.
- If your temperature gauge is high or you see active drips, do not drive the vehicle to avoid severe engine damage.
Signs of a Failing Water Pump in a Toyota Highlander
The water pump on the V6 Highlander is a known weak point, but it usually gives clear warning signs before it fails completely. Paying attention to these signs can save you from a much bigger repair bill.
- Pink Crusty Deposits: This is the most common and specific sign for a Toyota. The factory coolant is pink. When the pump's seal starts to fail, it will slowly leak or "weep" coolant. This coolant dries on the hot engine, leaving behind a chalky, pink residue around the water pump pulley (on the passenger side of the engine) or splattered on the underside of the hood. 🎬 Watch: See what these pink coolant leak signs look like.
- Coolant Drips: If you see pink liquid dripping onto the ground under the front passenger side of your vehicle, the leak has progressed from a weep to an active leak.
- Whining or Grinding Noises: A high-pitched whine or a low-pitched grinding sound coming from the engine that changes with engine speed is a classic sign of a bad water pump bearing. This means the pump is close to seizing.
- Engine Overheating: If your temperature gauge climbs into the red or you get an overheating warning on your dashboard, pull over immediately. This is a critical symptom that the cooling system is not working.
A Note on Leaks and TSB T-SB-0103-20
Toyota has a Technical Service Bulletin (TSB-0103-20) that helps technicians diagnose water pump leaks. It states that a small amount of dried pink residue (a "temporary leak") can be normal and does not require pump replacement. However, if there is evidence of wet coolant or active dripping, the pump has failed and must be replaced.

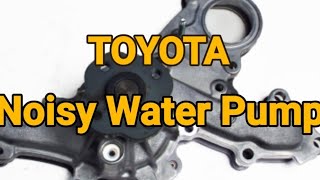

🎬 Watch: How to diagnose a bad water pump like a pro.Choosing the Right Aftermarket Water Pump
Not all aftermarket water pumps are created equal. For a job this labor-intensive, choosing a quality part is critical to avoid doing the work twice. Here’s a breakdown of the brands available.
Tier 1: OEM Supplier
- Aisin: Aisin is the Original Equipment Manufacturer (OEM) that makes the water pump for Toyota. An Aisin-branded pump is identical in quality to the part you would buy from a Toyota dealer, often for a lower price. For peace of mind and longevity, Aisin is the most recommended choice by mechanics and owners.
Tier 2: Reputable Aftermarket

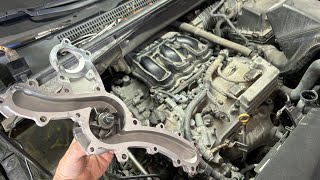

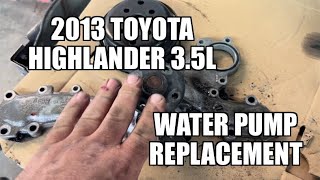

- Gates, Dayco, Beck Arnley: These are well-known brands that produce reliable parts. Gates and Dayco are famous for their belts and complete kits. Beck Arnley often sources parts from OEM suppliers. While generally good, some forum users have reported that the water pumps included in some kits are not always the same high quality 🎬 Watch: Step-by-step V6 water pump replacement without removing the engine. as the other components. These are solid choices if Aisin is not available.
Tier 3: Economy Brands
- GMB, Graf, Skyward, US Motor Works: These brands offer a lower price point. While functional, their long-term durability may not match that of OEM or Tier 2 brands. These parts are best considered for situations where the budget is the primary concern or if you don't plan on keeping the vehicle for a long time.
While You're In There...
Replacing the water pump on the Highlander V6 requires significant labor. To save on future repair costs, it is highly recommended to replace the following parts at the same time: Serpentine (drive) belt, thermostat, and idler/tensioner pulleys. Always refill the system with Toyota Super Long Life (pink) coolant.
Typical Replacement Costs
The cost to replace the water pump can vary significantly based on your engine (V6 vs 4-Cylinder), your location, and the shop you choose. The V6 is more labor-intensive and therefore more expensive.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $45 - $247 |
| New OEM Part | $170 - $410 |
| Shop Labor | $580 - $1,000+ |
| Total (Independent Shop) | $750 - $1,300 |
| Total (Dealership) | $1,100 - $1,600+ |
Frequently Asked Questions
Is the Highlander water pump driven by a timing belt or serpentine belt?
For all 2009-2022 Highlander engines (2.7L 4-cylinder and 3.5L V6), the engine water pump is driven by the serpentine belt, not a timing chain or belt.
Are there any recalls on the water pump?
No, there are no active safety recalls for the engine water pump on the 2009-2022 Toyota Highlander. There was a Limited Service Campaign for some 2014 Hybrid models related to a heater system coolant hose, but not the main engine water pump.
How long should a water pump last on a Toyota Highlander?
An original water pump is designed to last over 100,000 miles, but failures are common on the V6 engine earlier than that. Some fail with as little as 50,000-80,000 miles. Low mileage and infrequent use can also contribute to premature failure.
What kind of coolant should I use?
You must use Toyota's Super Long Life Coolant (SLLC), which is pink. Using the wrong type of coolant can lead to corrosion and damage the seals in the new water pump and other cooling system components.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16100-39456 16100-09441 16100-09440 16100-39455 16100-09690
Drive Type: Serpentine Belt; Housing Material: Aluminum.
We Have This Part in Stock
