A Practical Guide to the Dodge Grand Caravan ABS Wheel Speed Sensor (2009-2020)
If the ABS and traction control lights are on in your Grand Caravan, this guide is for you.
- The most common symptom of failure is the ABS and traction control lights turning on.
- The biggest challenge of the repair is the old sensor seizing in the hub due to rust and breaking upon removal.
- Quality aftermarket sensors from brands like Delphi, Dorman, or Standard are a cost-effective alternative to expensive OEM parts.
- You need an ABS-capable scan tool to determine which specific wheel sensor has failed.
Understanding the Failure
When an ABS wheel speed sensor on your 2009-2020 Dodge Grand Caravan fails, your dashboard will almost always light up with ABS and traction control warnings. This is the most common sign of a problem. The van's computer detects it's not getting a correct signal from one of the wheels and shuts the safety systems down as a precaution. Your normal brakes will still work, but you won't have the anti-lock or stability control assistance in an emergency.
Common Symptoms of a Bad Sensor
- ABS Light On: The most common symptom is a steady ABS warning light on your instrument cluster.
- Traction Control/ESC Light On: Because the stability system uses the same sensors, this light will usually come on with the ABS light.
- Erratic Braking at Low Speeds: In some cases, you might feel the brake pedal pulse or hear the ABS pump activate at low speeds, like when pulling into a parking spot. This happens if the sensor sends a jerky, incorrect signal.
A Word of Warning on Replacement
The single biggest challenge when replacing these sensors on a Grand Caravan is rust. The sensor is a small plastic part held into the metal wheel hub or steering knuckle by a single bolt. Over years of exposure to water and road salt, the sensor often gets seized by corrosion. It is very common for the sensor to break during removal, leaving the bottom half stuck in the hub. Technicians often have to carefully drill or break out the remaining piece, which adds significant time and frustration to the job. Soaking the old sensor with penetrating oil before trying to remove it is highly recommended.
Choosing the Right Aftermarket Part
You don't need to buy the expensive Mopar part from the dealer to fix your van. Aftermarket sensors offer excellent value and are a popular choice for this repair. They can be grouped into different quality tiers.
- Premium Aftermarket (e.g., Delphi, NGK/NTK): These brands are known for high-quality manufacturing and are sometimes the original equipment supplier for carmakers. For peace of mind and potentially longer life, these are a great choice without the dealer price tag.
- Standard Aftermarket (e.g., Dorman, Standard Ignition, Walker, Holstein): These brands provide a solid balance of quality and price. They are a reliable, cost-effective solution for a daily driver like the Grand Caravan. For a part like an ABS sensor, these brands are often more than adequate.
Pro Tip: The most important factor is getting the correct part for your specific wheel (front left, front right, or rear). The rear sensors are the same for the left and right side, but the front sensors are side-specific. Always verify fitment before ordering.
Estimated Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $55 - $170 |
| New Aftermarket | $32 - $94 |
| Shop Labor | $100 - $180 per sensor |
Frequently Asked Questions
Do I need a special tool to know which sensor is bad?
Yes. A standard OBD-II code reader can't read ABS codes. You need a more advanced scanner that can access the ABS module to see which specific wheel sensor is reporting a fault. Most repair shops and some auto parts stores can do this for you.
Why is my ABS light still on after replacing the sensor?
Sometimes the code needs to be cleared from the computer's memory with an ABS-capable scanner after the repair is complete. In some cases, the light may go off on its own after a few drive cycles where the computer confirms the new sensor is working correctly.
Can I just clean the old sensor?
Sometimes, a sensor's reading can be affected by a buildup of brake dust and metallic debris on its magnetic tip. Cleaning it is possible and may work as a temporary fix, but if the sensor's internal electronics have failed, cleaning won't help. Given the low cost of a new part and the labor to access it, replacement is usually the best option.
What's the difference between front and rear sensors?
The front and rear sensors are different parts with different shapes and wire lengths. For the 2009-2020 Grand Caravan, the rear sensors are typically interchangeable from left to right. However, the front sensors are often side-specific (driver's side vs. passenger's side). It is crucial to order the correct part for the exact location.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68128181AC 68128181AB 68128181AA 68451032AD 68451032AC 68451032AB

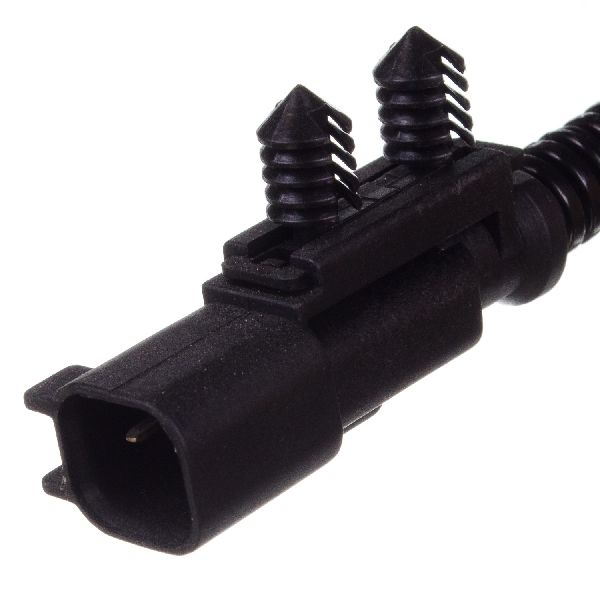

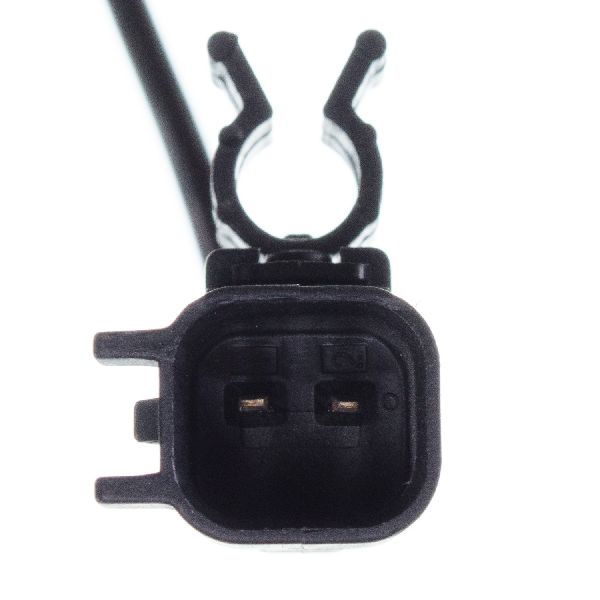

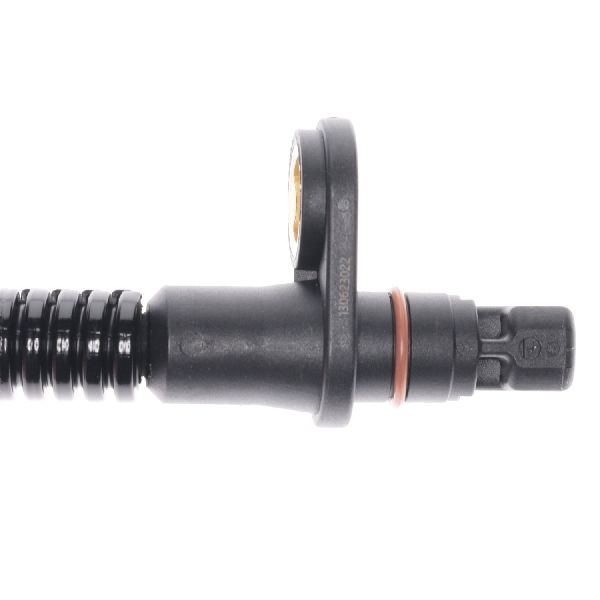

2-pin connector, magnetic reluctance sensor, includes wire harness with mounting grommets.
