Ford Flex Starter Motor Guide for Model Years 2009-2019
Everything a Ford Flex owner needs to know when their vehicle won't start.
- The most common symptom of a bad starter on a Ford Flex is a single click with no engine crank.
- Always test the battery first, as a weak battery can mimic starter failure symptoms.
- The starter is located on the top-front of the engine, making it a relatively easy DIY replacement for many owners.
- Motorcraft is the OEM brand, while MPA is a reliable aftermarket alternative.
Is Your Ford Flex Starter Failing?
A failing starter can leave you stranded. The most common sign is a single, loud "click" when you try to start the engine, but the engine doesn't turn over. You might also hear a grinding noise if the starter gear isn't engaging properly, or the engine might crank very slowly. Sometimes, a failing starter can even cause smoke if it overheats. Before you blame the starter, always make sure your battery is fully charged and the terminals are clean. A weak battery can cause similar symptoms.
🎬 Watch this real-world troubleshooting of a Flex that won't crank.Recall Information
There was a minor recall (NHTSA 18V-548) for a very small number of 2019 Ford Flex vehicles concerning improperly secured power supply cables to the starter and alternator. This could cause an electrical arc and increase fire risk. While it affected very few vehicles, it highlights the importance of secure electrical connections during installation.
Choosing a New Aftermarket Starter
When it's time for a replacement, you have a few options. You can choose between an OEM part or an aftermarket part. For your Flex, this decision is straightforward.
- Motorcraft: This is Ford's own parts brand. Choosing a Motorcraft starter, whether it's new or remanufactured, is the closest you can get to the original part that came with your vehicle. They are designed to meet Ford's exact specifications for fit and performance.
- MPA (Motorcar Parts of America): MPA is a well-known aftermarket manufacturer that produces new and remanufactured starters. They build parts to meet or exceed original specifications and are a reliable, cost-effective alternative to the OEM brand. An MPA starter is a solid choice for a quality repair without the higher cost of a dealer part.
Pro Tip: The starter on the 2009-2019 Ford Flex is located in the engine bay, on the driver's side, underneath the air filter housing. 🎬 See a step-by-step walkthrough of the starter replacement process. This top-side location makes it much easier to access than starters located underneath the vehicle.
Cost of Replacing a Ford Flex Starter
Here is a general breakdown of what you can expect to pay. Prices vary by location and the specific part you choose.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $132 - $267 |
| New OEM (Motorcraft) Starter | $222 - $362 |
| Shop Labor | $73 - $107 |
| Total Professional Replacement | $428 - $555 |
Frequently Asked Questions
Can I replace the starter myself?
Yes, for many DIYers, this is a manageable job. The starter is located on top of the engine, making it relatively easy to access after removing the airbox. You will need basic tools like a socket set (8mm, 10mm, 13mm, 15mm sockets), extensions, and pliers. The job typically takes 1-2 hours for someone with moderate experience.

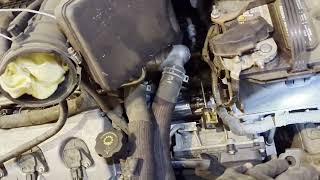

🎬 Try this quick temporary hack if your starter isn't engaging.Is a clicking sound always a bad starter?
Not always, but it's a primary symptom. The click you hear is often the starter solenoid trying to engage. This means the starter is receiving power from the battery, but the motor itself isn't turning the engine. However, a weak or dead battery can also cause a clicking sound from various relays, so it's critical to test the battery first before replacing the starter.
Do I need to disconnect the battery to replace the starter?
Yes, absolutely. This is the most important safety step. The starter has a direct, heavy-gauge wire connected to the positive battery terminal. Failing to disconnect the negative battery terminal before you start can lead to dangerous electrical shorts, sparks, damage to components, or serious personal injury.
What's the difference between a new and a remanufactured starter?
A new starter is made from all-new components. A remanufactured starter starts with the core of a used starter (the housing). It is then completely disassembled, cleaned, and rebuilt with new or re-machined internal components like brushes, bearings, and solenoids to meet original specifications. Both new and quality remanufactured starters from reputable brands can be reliable options.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8G1Z-11002-B HD9Z-11002-B 8G1Z-11V002-BRM1 SA-1014-RM SA-1081
Voltage: 12V, Power Rating: 1.4 kW, Rotation: Counter-Clockwise, Teeth: 10.
