Ford Expedition A/C Evaporator Core Guide (2009-2018)
If your Expedition's A/C is blowing warm, the evaporator core might be the problem—here's what you need to know before you buy.
- Evaporator replacement is a major, expensive repair due to 8-12 hours of labor to remove the entire dashboard.
- The most common failure is a refrigerant leak, causing warm air from the vents.
- While the dash is out, it is critical to also replace the heater core, expansion valve, and receiver/drier to prevent future repairs.
- For 2018 models, check for TSBs related to a freezing sensor or contaminated refrigerant before assuming the evaporator core itself has failed.
Is Your Expedition's A/C Blowing Hot?
A failing A/C evaporator core is a common reason for an air conditioning system to stop working on a 2009-2018 Ford Expedition. The most frequent cause of failure is a leak, which allows refrigerant to escape the system. Over time, this leads to weak or warm air blowing from the vents. Because this part is buried deep within the dashboard, replacing it is a major and labor-intensive job.
Symptoms of a Bad A/C Evaporator Core
- Warm or Weak Airflow: This is the most common symptom. As refrigerant leaks out, the evaporator can no longer get cold enough to cool the air passing over it.
- Musty or Moldy Smell: A damaged evaporator can accumulate moisture, leading to mold and mildew growth inside your HVAC system that causes a bad smell from the vents.
- A/C Compressor Won't Turn On: The A/C system has pressure sensors. If enough refrigerant has leaked out, the pressure will be too low, and the system will prevent the compressor from turning on to protect it from damage.
- Hissing from the Dash: Unusual hissing sounds can sometimes be heard from the dashboard area, indicating a refrigerant leak.
- Wet Passenger Floorboard: While often a sign of a clogged drain tube, a leak in the evaporator housing can sometimes cause condensation to drip into the passenger cabin.
This is Not a DIY for Beginners

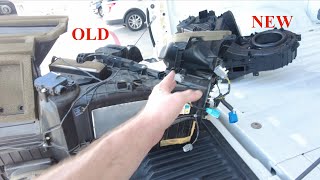

🎬 Watch: A full walkthrough of the dashboard removal process.Replacing the A/C evaporator core on a 2009-2018 Expedition is a very difficult and time-consuming job. It requires the complete removal of the dashboard and center console to access the HVAC housing. This repair can take a professional mechanic 8-12 hours. For most owners, this is a job best left to a trusted shop.
Known Issues, TSBs, and Recalls
While there are no direct recalls for the A/C evaporator core on 2009-2018 Expeditions, Ford has issued related Technical Service Bulletins (TSBs) and a customer satisfaction program for some model years.
- TSB 21-2250: For 2018 models (and others), a faulty evaporator temperature sensor can cause the evaporator to freeze up, leading to poor cooling and reduced airflow. This requires replacing the sensor, not the entire evaporator.
- TSB 20-2170: 🎬 See how to fix water leaking onto the passenger floor. Some 2018 Expeditions may experience a water leak onto the passenger floor from the evaporator drain tube. The fix is to install an elbow on the drain to direct water away from the firewall seal.
- Customer Satisfaction Program 18N01 / 20N08: A specific batch of 2018 Expeditions built between January and February 2018 may have had their A/C systems filled with contaminated refrigerant from the factory. This can cause a lack of cooling and requires replacement of multiple A/C components under a special warranty extension.
Choosing the Right Aftermarket Evaporator
When your evaporator fails, you have a choice between an OEM part from Motorcraft or an aftermarket part from brands like Four Seasons, Global Parts, or Spectra. Given the high labor cost, choosing a quality part is critical.
- Motorcraft (OEM): This is the original equipment part. It guarantees a perfect fit and is generally considered the most reliable option. However, it is also the most expensive. Given the difficulty of the job, many mechanics recommend using the OEM part to avoid the risk of having to do the job twice.

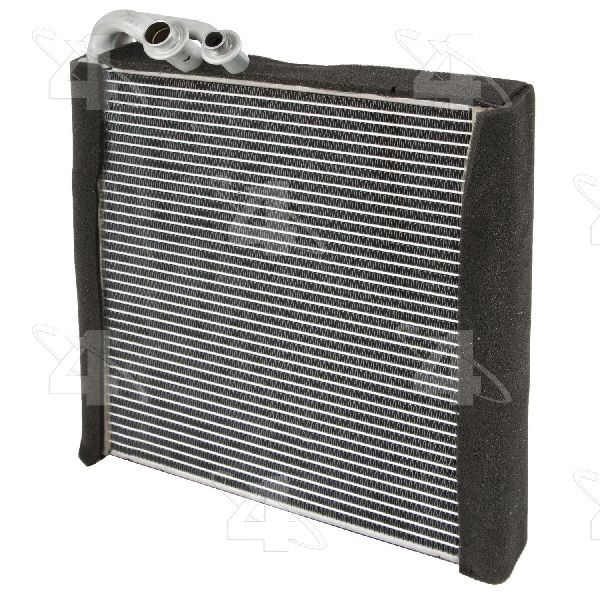

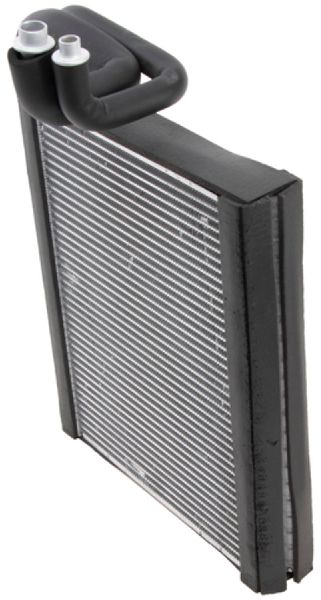

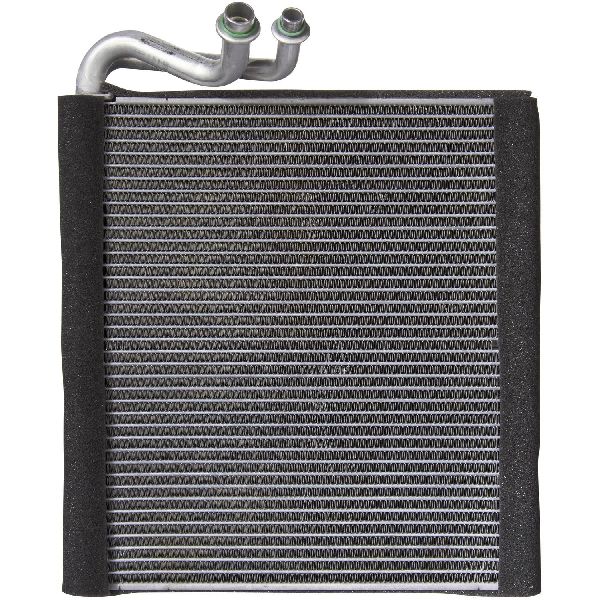

- Four Seasons / Spectra: These are well-known aftermarket brands that offer a more affordable alternative. Forum discussions show mixed experiences; some users report success and good performance, while others have experienced premature failures. In some cases, aftermarket parts may be visually identical to the OEM part, sometimes even made in the same factory, but without the same level of quality control.

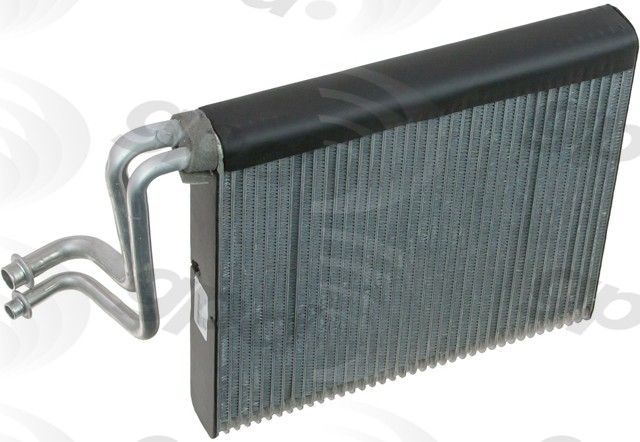

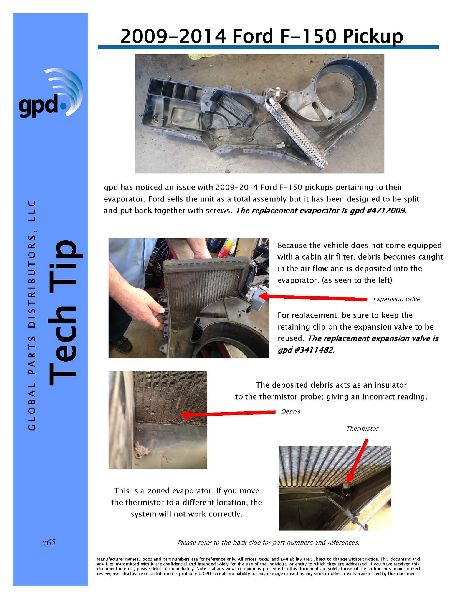

- Global Parts Distributors (GPD): This is another aftermarket option available in the market. Quality can be comparable to other aftermarket brands, but long-term reliability data from Expedition owners is less documented in public forums.
Pro Tip: Replace More Than Just the Evaporator
Since the entire dashboard will be removed, it is highly recommended to replace other inexpensive parts located in the same area at the same time. This includes the heater core, A/C expansion valve, and the receiver/drier (or accumulator). It's also a good time to replace any failing blend door actuators you hear clicking in the dash. This preventative maintenance can save you from another massive labor bill in the near future.
Cost Comparison for A/C Evaporator Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Evaporator Core | $83.84 - $142.17 |
| New OEM (Motorcraft) Evaporator Core | $200 - $513 |
| Shop Labor | $850 - $1,800 |
| Total Professional Job (Aftermarket Part) | $930 - $1,950 |
| Total Professional Job (OEM Part) | $1,050 - $2,300+ |
Frequently Asked Questions
Can I just use an A/C stop-leak product?
No. A/C stop-leak products are not recommended. They are a temporary fix at best and can cause permanent damage to other expensive components like the A/C compressor, condenser, and expansion valve, leading to much more costly repairs down the road.
Does a sweet smell mean my evaporator is bad?
No, a sweet smell inside the cabin is a classic sign of a leaking heater core, which circulates engine coolant. Refrigerant from the A/C system has very little odor. Since the heater core is right next to the evaporator, you should replace both at the same time.
Do I need to replace the front and rear evaporator?

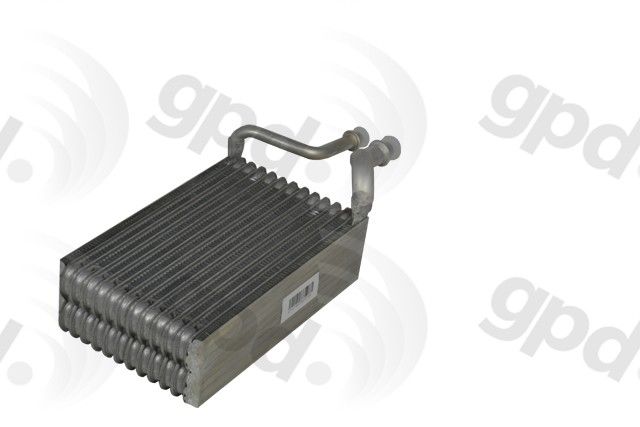

Not necessarily. Ford Expeditions have a separate rear A/C system with its own evaporator. A leak in the front system does not mean the rear one has failed. A mechanic can use dye to determine which part of the system is leaking.
Why is the labor so expensive?
The evaporator core is located inside the HVAC plenum (the main air box) under the dashboard. To get to it, a mechanic must disconnect the battery, recover the refrigerant, drain the coolant, and remove the entire instrument panel assembly, including the steering column, center console, and airbags. It is one of the most labor-intensive repairs on any vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: YW7Z-19850-DA CL1Z-19860-A
This article covers the front A/C evaporator core. Expeditions with rear A/C have a second, separate evaporator unit. The correct part depends on your vehicle's specific options. Always verify fitment before ordering.
