A Guide to the Starter Motor for the 2009-2014 Chevrolet Express 1500
Solve your Express van's starting problems with the right information and the right replacement part.
- Before replacing the starter, always test the battery first; rapid clicking is a sign of a weak battery, not a bad starter.
- Replacement is a DIY-friendly job, requiring basic tools and about 1.5 hours, with the starter located on the passenger side.
- There are no specific recalls for the starter on this van, so failure is typically due to normal wear and tear.
- If your van struggles to start only when hot, you may have 'heat soak,' and a new starter is the correct fix.
Is Your Express 1500 Starter Failing?
A starter motor rarely fails without giving some warning signs. Before you blame the starter, always make sure your battery is fully charged and the battery cable connections are clean and tight. A weak battery is the most common cause of starting issues and its symptoms can mimic a bad starter.
Common Failure Symptoms
- Single Loud Click: When you turn the key, you hear one loud "CLICK" from the engine area, but the engine doesn't turn over. This is a classic sign of a failed starter motor or solenoid.
- Slow or No Crank: The engine turns over very slowly, as if the battery is weak, or it doesn't crank at all. A worn starter can draw too much power, causing this issue.
- Grinding Noise: A harsh grinding sound during or just after starting means the starter gear is not meshing correctly with the engine's flexplate, or the teeth on either part are damaged.
- Whirring Sound: If you hear the starter motor spinning freely but the engine isn't cranking, the starter's drive gear is not engaging the flexplate.
Don't Be Fooled by Rapid Clicking
A rapid, machine-gun-like clicking sound when you try to start the engine is almost always a sign of a weak or dead battery, not a bad starter. The starter solenoid requires a lot of electricity to engage, and the rapid clicking is the sound of it trying and failing due to low voltage.
Known Issues, Recalls, or TSBs
Searches of the National Highway Traffic Safety Administration (NHTSA) database show several recalls for the 2009-2014 Chevrolet Express for issues related to airbags and other components, but there are no recalls for the starter motor itself. While some Technical Service Bulletins (TSBs) mention no-start conditions, they typically point to other causes like the transmission's park/neutral safety switch, not a widespread defect with the starter. Some owners of V8 models report a 'heat soak' issue, where the starter struggles to crank a hot engine due to its proximity to the exhaust. In these cases, a high-torque aftermarket starter can be a good solution.
Choosing the Right Aftermarket Starter
For the 2009-2014 Express 1500, the original ACDelco starter is a quality part. However, new aftermarket starters offer comparable quality, often at a better price. Since this is a part that will leave you stranded, choosing a reputable brand is important.

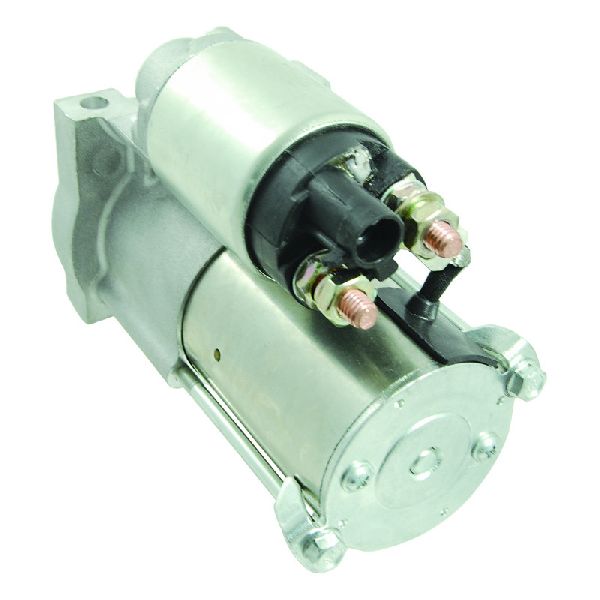

- Premium New Options (e.g., WAI Global, Remy New): These brands offer starters that are 100% new, not remanufactured. They often feature the latest manufacturing techniques and come with excellent warranties, providing peace of mind and long-term reliability.

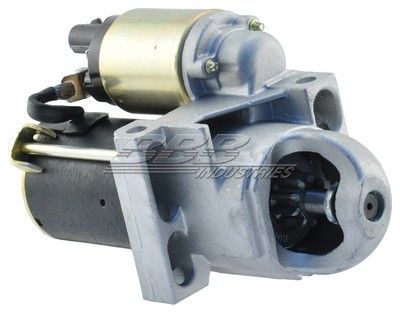

- Quality Remanufactured Options (e.g., Bosch, BBB Industries): Reputable remanufacturers like Bosch and BBB Industries disassemble original starters, replace all wear components like brushes and bushings with new parts, and test the unit to meet or exceed original specifications. These are a reliable and cost-effective alternative to a brand-new part.
A Note on Installation
Replacing the starter on the Express 1500 is a straightforward job for a DIYer with basic tools. The starter is located on the passenger side of the engine and is held on by two bolts. Always remember to disconnect the negative battery terminal before you begin work to prevent electrical shorts.
Cost to Replace a 2009-2014 Chevrolet Express 1500 Starter
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $133 - $191 |
| Shop Labor | $85 - $250 |
| Total Professional Replacement | $383 - $588 |
Costs are estimates and can vary based on your location and the specific parts chosen.
Frequently Asked Questions (FAQ)
Is it hard to replace the starter on an Express 1500?
No, it is considered a relatively easy job. For someone with basic mechanical skills and tools, it can be done in about 1.5 hours. The starter is accessible from underneath the van on the passenger side and is held by just two bolts and two electrical connections.
Should I buy a new or remanufactured starter?
Both are good options. A new aftermarket starter from a brand like WAI Global is made with all-new components. A quality remanufactured starter from a brand like Bosch or BBB Industries is a rebuilt original unit with all worn parts replaced, offering OEM-like performance at a lower cost.
My van won't start. Is it the battery or the starter?
First, check the battery. If your lights are dim or you hear a rapid clicking noise when you turn the key, the battery is likely the problem. If the lights are bright and you hear a single, loud click or nothing at all, the starter is the more likely culprit.
Why does my van struggle to start only when it's hot?
This condition is known as 'heat soak'. The starter is located near the hot exhaust, and over time, the heat can increase the electrical resistance inside the starter motor, making it struggle to crank the engine. Replacing it with a new or high-torque starter usually solves the problem.
Technical Specifications
The starter is typically a 1.2kW or 1.4kW unit designed for the GM small-block V8 (4.8L, 5.3L) or V6 engines used in this van generation. Ensure the replacement has the correct bolt pattern and electrical connections.
