Guide to Relays for the 2008-2014 Toyota Corolla
Understand the small electrical switches that control major systems in your Corolla, from starting the engine to running the A/C.
- A faulty relay can cause symptoms that seem like a major component failure (e.g., a bad fuel pump or starter).
- Most critical relays are located in the engine bay fuse box and can be replaced in minutes without tools.
- You can diagnose a bad relay by swapping it with an identical relay from a different circuit.
- For this part, an aftermarket 'Replacement' brand relay is a reliable and budget-friendly alternative to an expensive OEM part.
Understanding Your Corolla's Relays
Think of a relay as a tiny, automatic switch. When you turn the key or press a button, a small electrical signal is sent to the relay. This signal activates an electromagnet inside the relay, which closes a high-power circuit, allowing a large amount of electricity to flow to a major component like the fuel pump or starter. This simple but crucial process happens every time you start your car or turn on the air conditioning. Because they are used so frequently, relays can wear out over time, leading to some common and sometimes confusing issues.
Symptoms of a Failing Relay
A bad relay can mimic the symptoms of a much more expensive part failing. Before you assume the worst, it's wise to check the relay first. Common signs of failure depend on which relay is having a problem:
- Fuel Pump Relay Failure: The engine may crank but refuse to start because no fuel is being delivered. You might also experience sudden engine stalling while driving or a noticeable loss of power. 🎬 Learn how to test your fuel pump and relays.

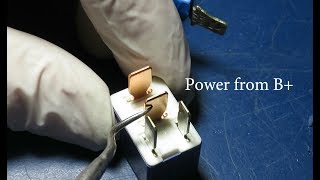

- Starter Relay Failure: You turn the key and hear nothing but a single click, or no sound at all, even though the battery is good. The engine won't crank over. 🎬 Watch: How to fix a Corolla that won't start.
- A/C Compressor Relay Failure: The air conditioning blows warm or room-temperature air, even when turned on. You might also notice the A/C works intermittently or not at all. 🎬 See this quick fix for A/C relay testing and replacement.
A simple diagnostic trick is to swap a suspect relay with an identical one from a non-critical system (like the horn) in the fuse box. If the problem moves to the horn or the original issue is resolved, you've found the bad relay.
Choosing an Aftermarket Replacement Relay
When a relay fails, you have the choice between an original equipment manufacturer (OEM) part from Toyota and an aftermarket part. For a simple component like a relay, an aftermarket "Replacement" brand part is a very practical and cost-effective choice. These parts are designed to meet or exceed the original specifications and provide reliable performance for a fraction of the cost of an OEM part. Given the straightforward function of a relay, the primary difference often comes down to price and warranty rather than a significant gap in quality or longevity for this specific component.
Cost Comparison: 2008-2014 Toyota Corolla Relay
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Relay | $18 - $20 |
| New OEM Relay | $60 - $105 |
| Shop Labor | $37 - $95 |
Frequently Asked Questions (FAQ)
Where are the relays located on my 2008-2014 Corolla?
Most of the important relays are found in the main fuse box in the engine compartment, located near the battery. The cover of the fuse box usually has a diagram showing which relay does what. Some models may have additional relays located under the dashboard.
Is replacing a relay a DIY job?
Yes, for most relays, this is one of the easiest repairs you can do. It typically requires no tools. Simply locate the correct relay in the fuse box, pull the old one straight out, and push the new one firmly into its place. Always make sure the new relay has the same pin configuration as the old one.
What's the difference between a fuse and a relay?
A fuse is a safety device designed to blow and cut off electricity to protect a circuit from too much current. A relay is a switch that turns a circuit on and off. A bad fuse means no power will get through, while a bad relay can fail either open (no power) or closed (power is always on).
Are there any recalls for relays on this Corolla?
No, there are no specific recalls issued by the NHTSA for relay failures on the 2008-2014 Toyota Corolla. While other recalls exist for this model year range, they are not related to the standard electrical relays for the fuel pump, starter, or A/C.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90987-02028 90080-87024 28300-0A010 90080-87025 90080-87026
Relays for the 2008-2014 Corolla are typically 12V, 4-pin or 5-pin electro-mechanical switches. They are color-coded (e.g., blue, gray) and have specific amperage ratings. It is crucial to match the pin layout and color of the original relay when replacing.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
