A Mechanic's Guide to the 2008-2014 Chevrolet Suburban 1500 Door Window Switch
If your Suburban's window is stuck, this guide will help you find the right replacement switch and get it working again.

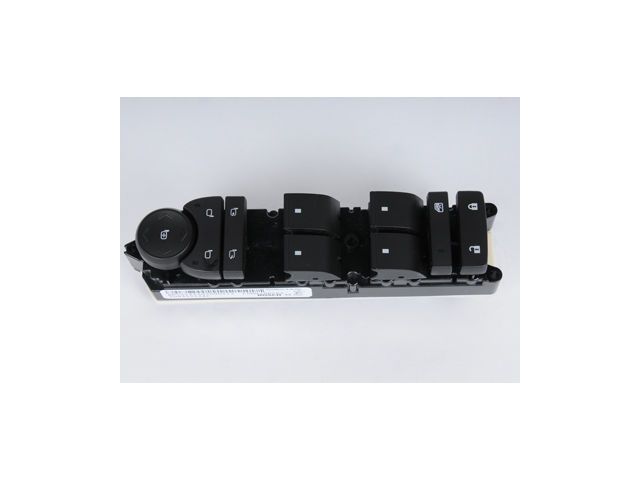

- The driver's side master switch is the most common part to fail and controls windows, locks, and sometimes mirrors.
- Before ordering, you must verify if your Suburban has power-folding mirrors, as this requires a different switch.
- Replacement is a simple, plug-and-play job that most owners can do themselves in under 30 minutes with a trim tool.
- Quality aftermarket brands like Dorman and Standard Ignition are reliable and cost-effective alternatives to expensive OEM parts.
Is Your Window Switch Failing? Common Symptoms
A window switch rarely just stops working overnight. It usually gives you warning signs. If you notice any of these issues, your switch is likely on its way out:
- Intermittent Control: The window works sometimes and not others. You might have to press the button multiple times to get a response.
- One-Way Operation: The window will go down, but not up, or vice-versa.
- Master Switch vs. Door Switch Issues: A window can be controlled from the driver's master switch but not the switch on its own door, or the other way around. This points directly to a faulty switch. 🎬 Watch: How to diagnose if the switch or motor is bad
- Total Failure: The window or power locks do not respond at all from the switch.
- Strange Electrical Behavior: In some cases, owners have reported window switches not working when the headlights are on, which could point to an electrical short within the switch assembly.
Important: Check for Power-Folding Mirrors Before You Buy
The most common ordering mistake is buying a switch that doesn't match your Suburban's features. The master window switch for models with power-folding mirrors has an extra button. Before adding a part to your cart, look at your current switch and make sure the new one has the exact same button layout. A switch without the mirror-fold button will not work correctly if your truck has that feature.
Choosing the Right Aftermarket Switch: Brand Tiers
You don't have to go to the dealer for this part. Aftermarket switches offer a good balance of quality and value. They generally fall into a few categories.
Premium Aftermarket (ACDelco GM Original Equipment, Standard Ignition):
- ACDelco GM Original Equipment: This is the same part that your vehicle was built with. It offers a perfect fit, finish, and function, but it is the most expensive option. Be aware that ACDelco also offers other lines like "Gold" and "Professional," which are their aftermarket offerings.
- Standard Ignition (SMP): A well-respected brand often used by professional mechanics. They are known for high-quality components, like copper alloy conductors, and rigorous testing to ensure reliability that meets or exceeds the original part.
Standard Aftermarket (Dorman, Rostra, ACDelco Gold/Professional):
- Dorman: Dorman is one of the most popular aftermarket brands. They are known for providing cost-effective parts that often look and function just like the original. While some mechanics have mixed opinions, Dorman is a reliable choice for a common repair like this.
- Rostra Powertrain: A solid choice that provides reliable function as a direct replacement for the original switch.
The main difference between OEM and a quality aftermarket switch is often minor. The backlighting color might be a slightly different shade of blue, or the texture of the plastic may vary. For most owners, these are acceptable trade-offs for the significant cost savings.
How Much Does a New Window Switch Cost?
The price depends on whether you're buying the complex driver's master switch or a simple passenger switch, and which brand you choose.
| Part | Price Range |
|---|---|
| Aftermarket Driver's Master Switch | $45 - $150 |
| Aftermarket Passenger/Rear Switch | $29 - $60 |
| OEM (Dealer) Driver's Master Switch | $210 - $325+ |
DIY Installation is Quick and Easy
Replacing the door window switch on a 2008-2014 Suburban is a perfect job for a beginner. It requires minimal tools and takes about 15-30 minutes. You will need a plastic trim removal tool to avoid scratching your door panel and possibly a T15 Torx driver or a small socket set.
- Use the trim tool to gently pry up the switch panel from the door handle. It's held in by clips.
- Once loose, lift the panel and disconnect the electrical connectors on the underside. They have release tabs and are color-coded, so you can't mix them up.
- With the panel free, remove the few screws holding the old switch into the panel.
- Screw the new switch into the panel, reconnect the electrical plugs, and snap the panel back into the door. 🎬 See this walkthrough for replacing the master window switch
Frequently Asked Questions
Why did my window switch fail?
The most common cause of failure is moisture. Rain from an open window or a spilled drink can get inside the switch and corrode the internal circuit board. Over time, the constant clicking also wears out the mechanical contacts inside the switch.
Do I need to disconnect the battery to replace the switch?
While it is not strictly required, it is always a best practice to disconnect the negative battery terminal before working on any electrical components in your vehicle. This prevents any chance of a short circuit.
My rear windows go down but not up from their own switches. Is this a switch problem?
This is a classic symptom. If the windows work fine from the driver's master switch but have issues at their own door, the problem is almost certainly the individual switch on that door, not the master switch or the window motor.
🎬 Watch: How to remove and replace rear window switchesWill a new aftermarket switch need to be programmed?
No. For this generation of Suburban, the window switches are simple plug-and-play components. No programming or special tools are needed for them to function correctly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22895545 20945129 25789692 25951963
Configuration must be matched based on the presence of power-folding mirrors. The driver's master switch assembly integrates controls for all four windows, power door locks, and the window lock-out function.
