A Guide to the 2008-2013 Chevrolet Silverado 1500 HVAC Blend Door Actuator
Tired of that clicking noise from your dash or the heat being stuck on high? Your blend door actuator is the likely culprit.
- A repetitive clicking noise from the dash is the number one sign of a failed blend door actuator.
- Confirm which actuator has failed (driver or passenger side) before buying a replacement part.
- The driver's side actuator is an easy DIY replacement, while the passenger side is much more difficult.
- Always perform the HVAC recalibration procedure after installing a new actuator to ensure proper function.
Is Your Silverado's Climate Control Acting Up?
If you're dealing with a constant clicking sound from behind the dashboard or can't get the right temperature air from your vents, a failing HVAC blend door actuator is the most common cause in the 2008-2013 Silverado 1500. This is a frequent issue where the small plastic gears inside the motor wear out and begin to slip, creating a rhythmic ticking or knocking noise. You might also find that one side of the cabin blows hot air while the other blows cold, or that the temperature is stuck and won't change at all.
Which Actuator Is Broken?

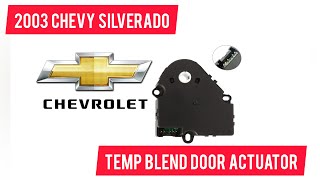

Your Silverado has at least two main temperature blend door actuators if you have dual-zone climate control. Before ordering a part, confirm which one has failed. The driver's side actuator is located under the dash near the gas pedal and is much easier to access. The passenger's side actuator is behind the glove box and typically requires removing the passenger airbag for replacement, making it a much more difficult job. 🎬 Watch: How to tackle the difficult passenger-side actuator replacement Listen closely to pinpoint the source of the clicking noise to determine which part you need to replace.
Choosing the Right Aftermarket Actuator
When it comes to replacing your blend door actuator, you have a choice between original equipment (OEM) from ACDelco and various aftermarket brands. For this specific part, the decision isn't always straightforward.
- OEM (ACDelco): Generally considered the highest quality option. However, the original design uses plastic gears that are known to fail over time, which is why you're likely replacing it in the first place.
- Aftermarket (Replacement, Dorman, etc.): Aftermarket actuators are significantly cheaper. While some mechanics have mixed opinions on the long-term durability of brands like Dorman, the low price makes them an attractive option for a part that is known to fail regardless of brand. For the easy-to-replace driver's side actuator, many owners choose an affordable aftermarket part, knowing that even if it fails again in the future, the replacement is quick and inexpensive.
Don't Forget to Recalibrate!
After installing a new blend door actuator, you must perform a recalibration. This allows the HVAC control module to learn the new actuator's range of motion. The most common method is to pull the HVAC fuse from the under-hood fuse box for 60 seconds, reinstall it, and then turn the ignition to the 'ON' position (without starting the engine) for 1-2 minutes without touching any climate controls.
Cost of Replacing a Blend Door Actuator
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $37.90 - $42.16 |
| New OEM Part (ACDelco) | $50 - $85 |
| Shop Labor (Driver's Side) | $100 - $150 |
Cost estimates are for the common driver-side actuator and may vary based on location and supplier. Labor for the passenger-side actuator will be significantly higher.
Frequently Asked Questions
How can I be sure the blend door actuator is the problem?
The tell-tale sign is a repetitive clicking or knocking sound from under the dash that starts when you turn on the truck or adjust the temperature. You can often confirm it by placing your hand on the actuator (if you can reach it) and feeling the vibration of the clicking motor. Incorrect temperature output is another strong indicator.
How many blend door actuators are in a 2008-2013 Silverado?
The system contains several actuators. For temperature control, there is one for the driver's side and, on dual-zone systems, a separate one for the passenger's side. There are also other actuators for directing airflow (mode door) and controlling fresh air intake (recirculation door). The driver-side temperature actuator is the most common to fail.
Can I replace the driver's side actuator myself?
Yes, this is a very common DIY repair. It is located under the driver's side dash and is held in by two 5.5mm screws. While the space is tight, it can typically be done in under an hour with basic tools.
🎬 See this step-by-step guide for replacing the driver-side actuatorWhat happens if the actual blend door is broken, not the actuator?
While less common, the plastic blend door inside the HVAC unit can break. If a new actuator doesn't solve the problem or you can manually move the door shaft freely with no resistance, the door itself may be broken. This is a much larger repair that requires removing the entire dashboard to access the HVAC case.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89018365 52402588 604-106
This is the temperature blend door actuator. The most common failure is on the driver's side, located under the dashboard. It is typically held in place by two 5.5mm screws.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
