A Guide to the Engine Oil Pressure Switch on the 2007-2015 Mini Cooper
Understanding the common failure points of the oil pressure switch and how to choose the right aftermarket replacement for your R55, R56, or R57 Mini.
- An oil pressure light is a critical warning; stop the engine immediately to prevent damage.
- The most common failures are false warnings from the switch and oil leaks directly from the sensor body.
- On turbocharged models, access is more difficult and may require removing a heat shield.
- Always use a new sealing gasket and be careful not to overtighten the new switch.
Understanding the Oil Pressure Switch in Your Mini Cooper
The engine oil pressure switch on a 2007-2015 Mini Cooper (often called the second-generation or "R-series") is a small but vital component. Its sole purpose is to protect your engine by warning you of low oil pressure. When oil pressure is sufficient, the switch is open. If pressure drops, the switch closes, completes an electrical circuit, and illuminates the red oil warning light on your dash. Ignoring this light can lead to catastrophic engine failure.
Warning: Do Not Ignore the Oil Pressure Light
If the red oil pressure warning light comes on while you are driving, you should safely pull over and shut off the engine immediately. Continuing to drive could destroy your engine. While the problem could be a faulty switch, it could also indicate a serious internal engine issue like a failing oil pump or low oil level.
Common Failure Symptoms
A failing oil pressure switch on a Mini Cooper has a few common symptoms. The most obvious is an incorrect warning light, but oil leaks are also very common.
- Flickering or Constant Oil Warning Light: The most frequent symptom is the oil pressure light illuminating on the dashboard, especially when the oil level is correct. 🎬 See how one owner solved a flickering oil light at idle. This can happen intermittently, perhaps during turns or acceleration, or it may stay on constantly.
- Oil Leaks: The switch itself can fail and leak oil. Oil may seep from the body of the sensor or through the electrical connector. This leak can be mistaken for other common Mini oil leaks, like from the oil filter housing gasket or turbo oil lines.
- Broken Electrical Connector: The plastic on the connector can become brittle from heat and age, causing it to break when being disconnected or leading to a poor connection.
Choosing the Right Aftermarket Oil Pressure Switch
When replacing the oil pressure switch, you have a choice between Genuine Mini parts and various aftermarket brands. For a simple but critical sensor like this, quality matters.
OEM vs. Aftermarket Quality:
The original part is made for Mini by a specific manufacturer. Aftermarket parts are made by other companies. Some aftermarket brands, like Hella, are often Original Equipment Manufacturers (OEMs) themselves, meaning they supply parts directly to car makers. Other brands focus on providing a lower-cost alternative. For this specific part, many owners find that reputable aftermarket brands perform well. However, some very low-cost, unbranded options have a higher failure rate.
Brand Tiers for Your Mini Cooper:

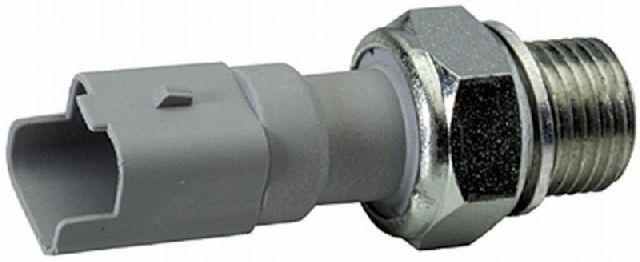

- Top Tier (OEM Equivalents): Brands like Hella are often OEM suppliers for European cars and are considered a very reliable choice.
- Reliable Aftermarket: Standard Motor Products (Standard Ignition) and Facet are generally seen as dependable aftermarket brands that offer a good balance of quality and price. Forum users have also reported success with Delphi parts.
- Budget-Friendly: Brands like URO Parts and Global Parts offer a more affordable option. While some URO parts are well-regarded, their electronic components have mixed reviews, with some users reporting premature failures. These can be a viable option if budget is the primary concern, but be aware of the potential for a shorter lifespan.
Pro Tip: Always Replace the Gasket
Whether you choose OEM or aftermarket, always use a new sealing washer or gasket when you replace the switch. Many new switches come with one included. Reusing the old gasket is a common cause of leaks after the repair.
Cost of Replacing a Mini Cooper Oil Pressure Switch
| Part Type | Price Range |
|---|---|
| New OEM (Genuine Mini) | $45 - $70 |
| New Aftermarket | $13 - $66 |
| Shop Labor | $100 - $250 |
(Note: Prices are estimates and can vary based on supplier, brand, and shop labor rates.)
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a 2007-2015 Mini Cooper?
On second-generation Mini Coopers (like the R56 model), the oil pressure switch is located on the front of the engine, on the cylinder head, typically below or next to the vacuum pump. On turbocharged 'S' models (N14/N18 engines), access can be tight due to the turbo and its heat shields. On non-turbo models (N12/N16 engines), it is generally easier to access.
Is a flickering oil light always a bad switch?
No, not always. While a faulty switch is a common cause, a flickering light can also be a true indicator of a serious problem. This could include a low oil level, a failing oil pump, a clogged oil filter, or issues with the oil pump's control solenoid on later models. It is critical to verify the engine's actual oil pressure with a mechanical gauge 🎬 Watch: How to test for low oil pressure and limp mode. if the problem persists after replacing the switch.
Are there any recalls for the oil pressure switch?
There are no specific recalls for the oil pressure switch itself. However, there have been NHTSA investigations and Technical Service Bulletins (TSBs) related to oil leaks and oil pressure problems on these engines. For example, TSB M11 01 12 addresses oil leaking from the oil pump's solenoid valve, which can travel up the wiring harness. Other investigations looked into engine fires on 2007-2008 Cooper S models, potentially caused by oil leaks dripping onto hot exhaust components.
Can I replace the Mini Cooper oil pressure switch myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills and tools. The difficulty depends on the model (turbo vs. non-turbo). You will need a deep socket (often 22mm, 24mm, or 27mm depending on the part) and may need to remove some components for access, like an air intake duct or heat shield. The torque for the new switch is low, so be careful not to overtighten it.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12617568481 12617592532 12617536724 12617513068
The switch is a simple on/off pressure sensor that typically closes the circuit below 0.2 bar (3 psi). It uses a single-pin or multi-pin connector depending on the specific engine and year. The hex size for removal can vary, with 22mm, 24mm, and 27mm being common.
