A Guide to Replacing Disc Brake Rotors on the 2007-2011 Freightliner S2
Stop the shaking and vibration by choosing the right replacement brake rotors for your S2 work truck.
- Vibration during braking is the number one sign of warped rotors that need replacement.
- For longevity and rust prevention, especially in wet climates, choose a premium aftermarket rotor with a full protective coating, like those from Centric.
- Always inspect your brake calipers for sticking or seized slide pins when replacing rotors to prevent damage to the new parts.
- No major recalls for rotor failure exist for this truck, but be aware of other brake system safety recalls for the S2 chassis.
Is It Time to Replace Your S2's Brake Rotors?
Brake rotors on a work truck don't last forever. The constant stress from heavy loads and stop-and-go driving generates heat that can wear down, warp, or even crack the rotors. Ignoring the signs of failure isn't just unsafe; it can lead to more expensive repairs down the line.
Symptoms of a Bad Disc Brake Rotor
- Vibration or Pulsation: The most common sign of a warped rotor is a shaking in the steering wheel or a pulsating feeling in the brake pedal when you apply the brakes. This is caused by unevenness in the rotor surface.
- Grinding or Scraping Noises: A loud grinding sound indicates that your brake pads are completely worn away, and the metal backing plate is now grinding against the rotor. This will quickly destroy the rotor.
- Visible Damage: A visual inspection may reveal deep grooves, scoring, or visible heat-cracks on the rotor's surface. You might also see dark blue or black spots, which are signs of overheating.
- Pulling to One Side: If the truck pulls to the left or right during braking, it could be a sign of a problem on one side, such as a failing rotor or a seized caliper.
Safety Recall Notice for Early Models
While no recalls exist specifically for the disc brake rotors on the 2007-2011 S2, owners of 2006-2007 models should be aware of NHTSA Campaign FL491A. This recall involves a faulty double-check valve in the park brake system that could allow the vehicle to roll away. It is a critical safety issue unrelated to the service rotors but relevant to the overall brake system of early models in this year range.
Choosing the Right Aftermarket Rotor for Your Truck
When shopping for new aftermarket rotors, you'll find different quality tiers. For a hard-working Freightliner S2, investing in a better rotor can improve safety and longevity.
Good: Standard Replacement Rotors

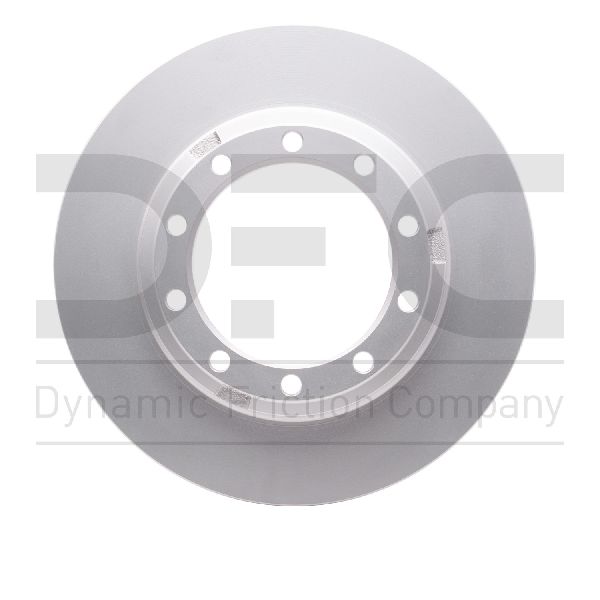

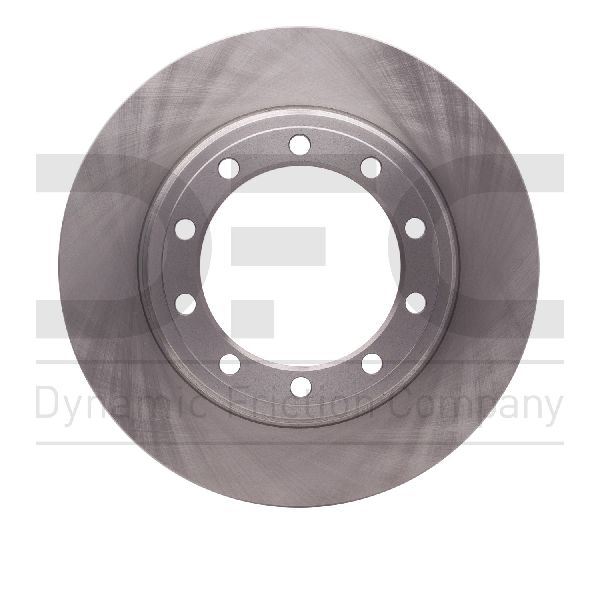

These are the most budget-friendly options, designed to meet basic OEM specifications. Brands like Dynamic Friction offer rotors in this category. They provide a cost-effective solution for immediate replacement. However, some user reviews mention occasional quality control issues like rotors being warped out of the box, so careful inspection upon arrival is recommended.
Better: Coated OE-Quality Rotors

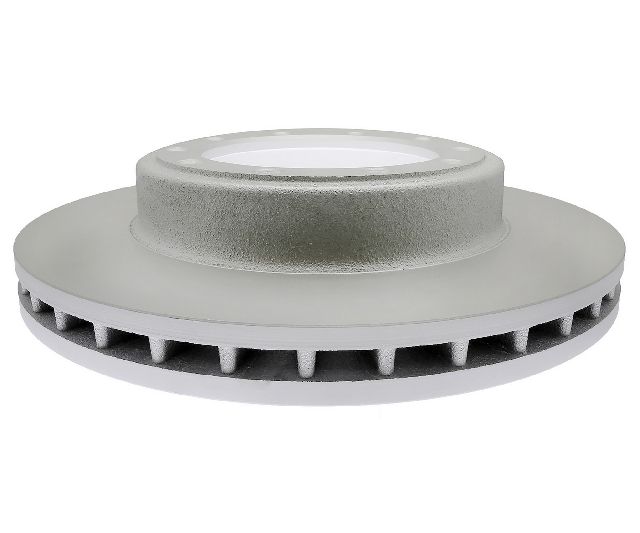

This tier offers a significant upgrade by adding a protective coating to the non-braking surfaces of the rotor (the hat and vanes). This coating prevents rust and corrosion, which not only looks better but also makes future brake jobs easier. Raybestos is a well-known brand in this category. While generally considered a solid mid-range choice, some users have reported that their anti-rust coatings do not always hold up well in harsh winter conditions.
Best: Premium High-Carbon Coated Rotors

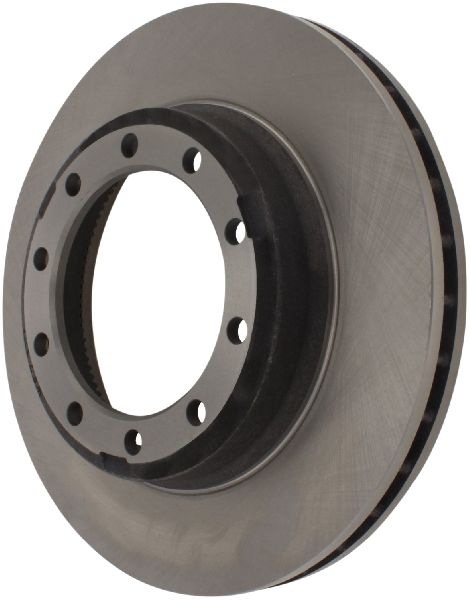

For maximum performance and durability, premium rotors are the top choice. These often feature a higher carbon content in the iron, which helps manage heat better and resist warping. Centric's Premium line is highly regarded in this tier, frequently praised for its durable black e-coating that provides excellent, long-lasting rust protection on the rotor hat and cooling vanes. This is the recommended choice for trucks operating in wet climates or areas where road salt is used.
Pro Tip: Don't Let a Bad Caliper Ruin Your New Rotors
A very common cause of premature rotor failure is a seized or sticking brake caliper. If a caliper piston or its slide pins are corroded, they can't release properly, causing the brake pad to drag constantly on the rotor. This generates excessive heat that will quickly warp or destroy even a brand-new, high-quality rotor. Always inspect your calipers for smooth movement and check brake hoses for blockages when replacing your rotors.
Aftermarket Disc Brake Rotor Cost for 2007-2011 Freightliner S2
| Part Type | Estimated Cost (Per Rotor) |
|---|---|
| New Aftermarket Rotor | $97.59 - $221.81 |
| New OEM Rotor | $250 - $400 |
| Shop Labor (Per Axle) | $300 - $600 |
Frequently Asked Questions
Do I have to replace my brake pads when I replace my rotors?
Yes, it is absolutely essential. Installing old, worn brake pads on new rotors will cause uneven wear, reduce braking performance, and can damage the new rotors almost immediately. Always install a new set of brake pads with new rotors.
Can I just resurface or "turn" my old rotors?
While resurfacing used to be common, it is generally not recommended for modern medium-duty trucks. Each rotor has a minimum thickness specification stamped on it. Resurfacing removes material, and if it takes the rotor below this minimum, it will be unable to handle heat properly, leading to a high risk of warping or cracking. Given the reasonable cost of new aftermarket rotors, replacement is the safer option.
What is the difference between coated and uncoated rotors?
Uncoated rotors are bare cast iron and will quickly develop surface rust on the hat (the center part) and in the cooling vanes. Coated rotors have a protective layer (like paint or an e-coating) on these non-contact areas to prevent rust, keeping them looking better and preventing corrosion from seizing the rotor to the hub.
Why does my truck still vibrate after installing new rotors and pads?
If vibration continues after a brake job, the issue might not have been the rotors. Other potential causes include improperly mounted wheels, worn wheel bearings, or worn suspension components like king pins or tie rods that are now more noticeable with the new, more effective brakes.
Technical Specifications
Brake System: Hydraulic Rotor Style: Vented Configuration: Varies by axle and GVWR. Always verify fitment with your vehicle's specifications.
