Jeep Wrangler Engine Camshaft Position Sensor Guide for 2006-2017 Models
Fix stalling, rough idle, and check engine lights by finding the right camshaft sensor for your Wrangler's specific engine.
- First, confirm if your Wrangler has the 4.0L, 3.8L, or 3.6L engine, as the part is different for each.
- For long-term reliability, Mopar (OEM) sensors are strongly recommended by Jeep owners over most aftermarket brands.
- On 2006 4.0L models, a cam sensor code often means the entire Oil Pump Drive Assembly (OPDA) is failing and should be replaced to prevent engine damage.
- Always inspect the sensor's wiring and connector for damage before replacement, as a bad wire can cause the same symptoms.
Before You Buy: Identify Your Wrangler's Engine
The most common mistake when ordering this part is getting the wrong one for your engine. The 2006-2017 Jeep Wrangler used three different engines, and the camshaft position sensor is different for each. Before you shop, confirm which engine is in your Jeep:
- 2006 TJ Wrangler: 4.0L Inline-6 engine.
- 2007-2011 JK Wrangler: 3.8L V6 engine.
- 2012-2017 JK Wrangler: 3.6L V6 Pentastar engine.
Special Note for 2006 4.0L TJ Owners
On the 4.0L engine, the camshaft position sensor is part of a larger unit called the Oil Pump Drive Assembly (OPDA). A P0340 or P0344 code on these models often points to a failing OPDA, not just the sensor. A complete OPDA failure can cause a total loss of oil pressure, leading to catastrophic engine damage. It is highly recommended to inspect and likely replace the entire OPDA assembly 🎬 Watch: Step-by-step guide to replacing the 4.0L OPDA assembly, not just the sensor. Many owners suggest using an aftermarket assembly from a brand like Crown or Dorman but reusing the original Mopar sensor if it is still functional, as aftermarket sensors for this specific assembly have a poor reputation for reliability.
Symptoms of a Failing Camshaft Position Sensor
A bad cam sensor will almost always trigger a Check Engine Light. You might also notice the electronic stability control (ESC) or traction control light comes on at the same time, which is a common quirk in JK Wranglers. Other symptoms include:
- Engine Stalling: The engine may shut off unexpectedly while driving or when coming to a stop.
- Hard Starting or No Start: The engine cranks for a long time before starting, or it may not start at all.
- Rough Idle: The engine vibrates or runs unevenly when stopped.
- Poor Acceleration: The Jeep may feel sluggish or hesitate when you press the gas pedal.
- Limp Mode: The vehicle may limit engine power and RPMs to prevent damage, often accompanied by a downshift. 🎬 See a visual breakdown of common failing sensor symptoms
Choosing the Right Aftermarket Sensor
While many aftermarket options are available, owner feedback for this specific part on Jeep Wranglers is very clear: not all sensors are created equal. Using a low-quality sensor can lead to continued problems or premature failure.
Pro Tip: Before replacing the sensor, inspect the wiring harness and connector for damage, corrosion, or loose connections. A bad wire can mimic the symptoms of a bad sensor, and several Technical Service Bulletins (TSBs) point to wiring issues as the root cause for intermittent sensor codes.
Brand Quality Tiers
- OEM (Mopar): This is the most recommended option for reliability and preventing future headaches. Many Jeep owners and mechanics report that only the genuine Mopar sensor works correctly long-term.
- Premium Aftermarket (Delphi, Hitachi, NGK/NTK): These brands are often original equipment suppliers to other automakers and have a strong reputation for quality electronics. They are the next best choice after Mopar.
- Standard Aftermarket (Dorman, Standard Ignition, Spectra): These brands offer a balance of value and quality. Dorman is a widely available option, but owner experiences can be mixed. They can be a good choice if you're on a budget, but be aware of the potential for shorter service life compared to premium options.
- Value Brands (Crown, Omix-Ada, etc.): While well-known for other Jeep parts, their electronic sensors are often the most budget-friendly and can be a gamble. For a critical sensor like this, it's generally advised to invest in a higher-tier brand to avoid doing the job twice.
Cost of Replacing a Jeep Wrangler Camshaft Position Sensor
| Part Type | Price Range |
|---|---|
| New OEM (Mopar) | $55 - $100 |
| New Aftermarket | $29.66 - $144.71 |
| Shop Labor | $60 - $120 |
Frequently Asked Questions (FAQ)
Where is the camshaft position sensor on a Jeep Wrangler?
The location depends on your engine:
• 4.0L (2006 TJ): It's on top of the Oil Pump Drive Assembly (OPDA) toward the passenger side of the engine, resembling an old distributor location.
• 3.8L (2007-2011 JK): It is a single sensor located on the upper front of the engine, just above the water pump and behind the serpentine belt. 🎬 Watch: How to replace the 3.8L camshaft position sensor
• 3.6L (2012-2017 JK): There are two sensors. One is on the rear of the passenger side valve cover (Bank 1), and the other is on the rear of the driver's side valve cover (Bank 2).
Can I replace this sensor myself?
Yes, this is a very DIY-friendly job for all three engine types. It typically involves removing a single bolt (10mm for the 3.8L, T30 Torx for the 3.6L) and an electrical connector. The job can usually be completed in under 30 minutes with basic hand tools.
What are the common error codes for a bad cam sensor?
The most common codes are P0340 (Sensor Circuit Malfunction) and P0344 (Sensor Circuit Intermittent). Depending on the engine and which sensor has failed, you may also see codes like P0365, P0369, P0390, and P0394.
Is there a recall on the Jeep Wrangler camshaft position sensor?
No, there are no active recalls for the camshaft position sensor on 2006-2017 Jeep Wranglers. However, there are Technical Service Bulletins (TSBs) for certain models that address related issues like extended crank times or intermittent signals, which sometimes involve replacing the sensor or repairing the wiring.

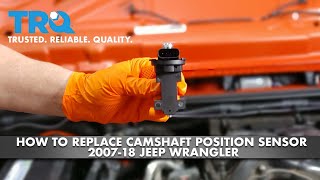

Helpful Videos
Technical Specifications
OEM Part Numbers: 5149078AD (For 3.8L V6) 5149141AF (For 3.6L V6, replaces previous versions) 56041819AA (For 4.0L I6, sensor only)
The sensor is a Hall-effect type sensor that generates a digital square wave signal based on the rotation of a reluctor wheel on the camshaft. The 3.8L and 4.0L engines use one sensor, while the 3.6L Pentastar V6 uses two sensors, one for each cylinder bank.
