Ford F-150 Speed Sensor Guide (2006-2014): Issues and Replacement
Erratic speedometer or harsh shifting in your F-150? This guide explains the common causes and fixes for speed sensor problems.
- The repair for a speed sensor issue is drastically different for 2006-2008 models versus 2009-2014 models.
- Owners of 2009-2014 F-150s with the 6R80 transmission must replace the entire internal 'molded lead frame', not just a simple sensor.
- A sudden downshift to first gear is a critical safety issue linked to recalls on 2011-2014 models; check your VIN on the NHTSA website.
- Common trouble codes pointing to this failure are P0720 and P0722.
Is Your F-150 Speedometer or Transmission Acting Up?
If you own a 2006-2014 Ford F-150 and are experiencing a speedometer that drops to zero, harsh shifting, or a sudden downshift into first gear, a faulty speed sensor is a likely cause. However, the specific problem and the correct replacement part depend heavily on your truck's model year and which transmission it has.
A Tale of Two Transmissions: 2006-2008 vs. 2009-2014
It is critical to understand that the "speed sensor" is a very different part depending on your truck's year.
- For 2006-2008 F-150s (often with the 4-speed 4R75E transmission), the Output Speed Sensor (OSS) is typically a simple, externally mounted sensor that is easy to access and replace.
- For 2009-2014 F-150s (with the 6-speed 6R80 transmission), the OSS is integrated into a large internal component called the molded lead frame. This part is located inside the transmission, and replacing it is a much more complex and expensive job.
Known Issues: Recalls and the 6R80 Lead Frame Failure
There is a major, well-documented issue affecting 2011-2014 F-150s with the 6R80 transmission. An internal failure of the speed sensor on the molded lead frame can cause the truck to suddenly and dangerously downshift into first gear, even at highway speeds. This can cause the rear wheels to lock up and lead to a loss of control.

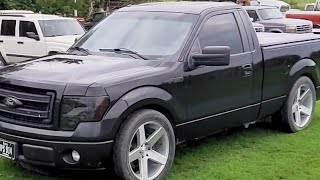

Ford has issued several safety recalls for this problem, including recall 24S37 for 2014 models. The official dealer fix is a software update for the Powertrain Control Module (PCM). This update is designed to prevent the dangerous downshift if the sensor signal is lost, but it does not replace the failing lead frame itself. 🎬 Watch: An explanation of the sudden downshift and recall process. If the truck already has diagnostic trouble codes like P0720 or P0722 stored, the dealer may proceed with replacing the lead frame assembly.
Choosing the Right Aftermarket Part
When shopping for a replacement, understanding the two different failure types is key.
- For 2006-2008 Models: Since the sensor is external and easy to replace, a standard aftermarket replacement part is a cost-effective option for a DIY repair. The job is straightforward and doesn't require expensive tools. 🎬 Watch: Step-by-step guide to replacing the 2004-2008 external sensor.
- For 2009-2014 Models: The problem is the internal lead frame, not a simple sensor. A basic aftermarket speed sensor will not fix your issue. You need a complete molded lead frame assembly. Given the high labor cost and complexity of this repair, using a high-quality OEM or reputable aftermarket lead frame is strongly recommended to ensure a lasting fix. Choosing a budget part could lead to another failure and repeating the expensive labor. 🎬 See this DIY tutorial for replacing the 6R80 lead frame.
Speed Sensor Replacement Cost Comparison
| Part/Service | 2006-2008 F-150 (External Sensor) | 2009-2014 F-150 (Internal Lead Frame) |
|---|---|---|
| New OEM Part | $50 - $75 | $130 - $250 |
| New Aftermarket Part | $15 - $30 | $115 - $200+ |
| Shop Labor Cost | $95 - $180 | $800 - $1,300+ |
| Total Estimated Cost (Shop) | $145 - $255 | $930 - $1,550+ |
Note: Costs are estimates and can vary based on your location, the specific shop, and parts availability.
Frequently Asked Questions (FAQ)
Where is the speed sensor located on my F-150?
On 2006-2008 models with the 4R75E transmission, the Output Speed Sensor is typically on the outside of the transmission case, near the tail shaft, held in by a single bolt. On 2009-2014 models with the 6R80 transmission, the sensor is part of the molded lead frame, which is inside the transmission oil pan, attached to the valve body.
Can I replace the speed sensor myself?
For 2006-2008 models, yes. It is a beginner-friendly job that requires basic hand tools and takes less than an hour. For 2009-2014 models, the lead frame replacement is a difficult job for a DIYer. It requires draining the transmission fluid, dropping the pan, and removing the valve body. This is best left to an experienced mechanic unless you are very confident in your abilities.
What are the common trouble codes for a bad speed sensor?
The most common codes are P0720 (Output Speed Sensor Circuit Malfunction) and P0722 (Output Speed Sensor No Signal). These codes directly point to a problem with the OSS or its wiring.
My truck is a 2014 model. Does the recall fix the problem for free?
The Ford recall provides a free software update to prevent the dangerous sudden downshift. This is a safety measure, not a hardware fix. The dealer will only replace the faulty lead frame under warranty or recall if specific diagnostic trouble codes are present. Check your VIN on the NHTSA website to see if your truck is covered.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6L3Z7H103AA 9L3Z-7G276-A AL3Z-7G276-A AL3Z-7G276-D
The primary part in question is the Output Shaft Speed (OSS) sensor. On 2006-2008 models with 4R75E transmissions, it is an external, 2-pin magnetic sensor. On 2009-2014 models with 6R80 transmissions, it is an integrated sensor within the internal molded lead frame assembly.
