A Guide to the Engine Timing Chain Kit for the 2006-2013 Toyota RAV4
Understanding the timing chain in your RAV4's 4-cylinder or V6 engine is key to preventing major repairs.
- A rattling noise on cold startup is a serious warning sign that the timing chain system needs immediate inspection.
- Both the 4-cylinder and V6 engines have known issues (covered by TSBs) related to engine noise that can be confused with or related to timing chain problems.
- This is a complex and labor-intensive repair; it is not recommended for DIYers. The cost of labor will be much higher than the cost of the parts.
- When replacing, use a complete, high-quality aftermarket kit (like Cloyes or INA) or OEM parts to ensure a lasting repair.
Is Your RAV4's Timing Chain Failing?
The timing chain in your 2006-2013 Toyota RAV4 is designed to last a long time, but it's not invincible. The plastic guides and hydraulic tensioner are often the first parts to fail, leading to a loose chain. Ignoring the warning signs can lead to severe engine damage. If the chain slips or breaks, the pistons can hit the valves, resulting in a very expensive repair or the need for a new engine.
Engine-Specific Issues
Your RAV4 came with either a 4-cylinder or a V6 engine, and they have different common issues.
- 4-Cylinder (2AZ-FE, 2AR-FE): Some of these engines, particularly in 2009-2012 models, were subject to a Technical Service Bulletin (TSB) for a brief rattle noise on cold startup. This could be related to the VVT (Variable Valve Timing) gear, but a stretched chain or failing tensioner can also cause similar noises.
- V6 (2GR-FE): Early versions of this engine, including those in 2006-2009 RAV4s, had a TSB for a ticking or clicking noise from the engine. This was often related to the VVT system but could also be a symptom of timing chain guide or tensioner problems. Oil leaks from the timing chain cover are also a known, and expensive, issue for these V6 engines.
Warning: Rattle on Startup is a Major Clue
The most common and critical symptom of a failing timing chain system is a rattling or slapping noise from the engine for a few seconds when you first start it, especially when cold. This sound is the loose chain hitting the timing cover or guides. Do not ignore this sound.
Choosing the Right Aftermarket Timing Chain Kit
When it's time for a replacement, you don't have to buy from the dealer. Quality aftermarket kits can provide similar performance for less money. However, not all aftermarket brands are equal. For a critical job like this, quality matters more than saving a few dollars.
Brand Quality Tiers
- Top Tier (OEM Quality): Brands like INA and Cloyes are well-regarded in the industry and often supply original parts to manufacturers. They are known for precision and durability, making them a safe bet for a long-lasting repair. Aisin is another top-tier brand that is an OEM supplier for Toyota.
- Mid-Grade (Reliable Alternatives): Brands like Gates and Dayco are major players in the aftermarket. They offer a good balance of quality and price. While some professional mechanics have noted occasional quality control issues compared to top-tier brands, they are generally considered a reliable choice for most daily drivers.
Pro Tip: Replace Everything in the Kit
A timing chain kit includes the chain, guides, and tensioners. It is critical to replace all these components at the same time. The old, worn guides can quickly damage a new chain, and a weak tensioner will cause the new chain to slap around, leading to premature failure. Also, consider replacing the water pump if it is driven by the timing chain system, as it's much easier to do while the engine is already taken apart.
Estimated Replacement Costs
The cost to replace a timing chain kit varies significantly based on your engine and local labor rates. The job is labor-intensive, as a large portion of the engine needs to be disassembled.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit | $58 - $602 |
| Shop Labor | $730 - $1,200+ |
| Total Professional Job | $800 - $1,800+ |
Costs are estimates and can vary based on location, engine type (V6 is typically more expensive), and the specific shop.
Frequently Asked Questions
Is there a recall for the timing chain on the 2006-2013 RAV4?
No, there are no specific recalls for the timing chain, its components, or related engine issues for this generation of RAV4. There were Technical Service Bulletins (TSBs), which are guides for technicians to diagnose and repair known common issues, but these are not safety recalls.
Can I replace the timing chain kit myself?
This is a very difficult job. It requires specialized tools, a deep understanding of engine mechanics, and precise execution to set the timing correctly. An error can destroy the engine. For most car owners, this is not a feasible DIY project and should be left to a professional mechanic.
How do I know if I have the 4-cylinder or V6 engine?
The easiest way to tell is by looking at the engine cover or your vehicle's documentation. The V6 models will often have a "V6" badge on the vehicle. The 4-cylinder engine during this period was a 2.4L (2AZ-FE) or 2.5L (2AR-FE), while the V6 was a 3.5L (2GR-FE).
Should I use an OEM or Aftermarket kit?
While OEM parts guarantee a perfect fit, high-quality aftermarket brands like Cloyes or INA offer comparable quality and can save you money. The key is to avoid cheap, unbranded kits, as the tensioner or guides can fail quickly and cause catastrophic engine damage. Given the high labor cost, it's not worth saving a small amount on a low-quality part.

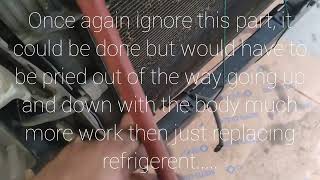

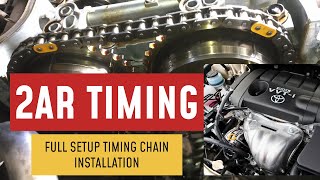

Helpful Videos
Technical Specifications
This vehicle generation uses two main engine families, both with timing chains: the 4-cylinder (2AZ-FE 2.4L and 2AR-FE 2.5L) and the V6 (2GR-FE 3.5L). Kits are specific to the engine, so verify which engine your RAV4 has before ordering.
