A Ford Explorer Owner's Guide to ABS Wheel Speed Sensors (2006-2011)
Understand the common ABS, traction control, and "Service RSC" warnings on your 2006-2011 Ford Explorer.
- A bad sensor will disable ABS, traction control, and Roll Stability Control (RSC), triggering multiple dash lights.
- Use an ABS-capable scanner to read codes and identify the specific failed sensor before buying parts.
- For this generation, a cracked rear tone ring can cause the same symptoms as a bad sensor and should be inspected.
- Replacement is a simple DIY task for one person, requiring only basic hand tools and less than an hour per wheel.
Understanding the Warning Lights
A failing ABS wheel speed sensor on a 2006-2011 Ford Explorer is a common issue. The most frequent sign of a problem is a combination of warning lights on your dashboard. You will likely see the ABS light, the traction control light (a car with squiggly lines), and sometimes a "Service RSC Now" message. These systems all rely on the same wheel speed information, so when one sensor fails, they all stop working. While the vehicle's normal brakes will still function, these important safety features will be inactive.
Common Causes and Known Issues

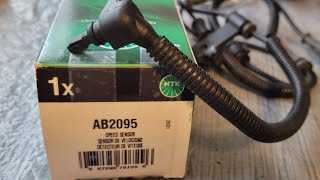

For the 2006-2010 Explorer, a known weak point is the rear ABS tone ring, which is part of the axle shaft. 🎬 Watch this step-by-step rear ABS sensor replacement tutorial These rings can crack or rust, causing the sensor to get an erratic signal. This often leads to false activation of the traction control, especially when accelerating from a stop, or pulsing brakes at low speeds. While the sensor itself might be fine, it reports the bad data from the damaged ring. In other cases, the sensor itself fails due to age, moisture, or damage to its wiring.
Diagnose Before You Buy

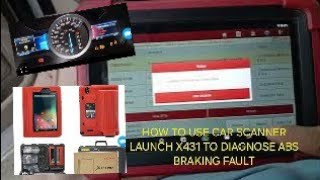

It is crucial to diagnose which wheel sensor has failed before buying a replacement. A proper OBD2 scanner that can read ABS codes (C-codes) is required. Guessing can lead to replacing the wrong part and wasting money. Common codes include C1234 (Right Front), C1233 (Left Front), C1236 (Right Rear), and C1235 (Left Rear), often with a description like "Wheel Speed Sensor Input Signal Missing".
Choosing the Right Aftermarket Sensor
With a critical safety part like an ABS sensor, quality matters. While you can save money with aftermarket parts, it's important to choose a reputable brand.
- OEM (Original Equipment Manufacturer): Motorcraft is the Ford factory brand. It offers a guaranteed fit and performance identical to the original part but comes at the highest cost.
- Premium Aftermarket: Brands like SKF, Delphi, Hella, and NGK/NTK are well-regarded and often supply parts directly to automakers. They are considered OEM-equivalent and provide excellent quality and reliability, making them a strong choice for this repair.
- Standard Aftermarket: Dorman and Standard Ignition (SMP) are popular, widely available brands that offer a good balance of price and performance. They are a reliable choice for a DIY repair.
- Value Brands: Holstein and Walker Products fall into a more budget-friendly category. While they can be a cost-effective solution, for a safety-critical part, sticking with a standard or premium brand is often recommended for long-term peace of mind.
Cost of Replacing an ABS Sensor on a 2006-2011 Ford Explorer
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $28 - $117 |
| New OEM (Motorcraft) Sensor | $70 - $140 |
| Shop Labor | $95 - $150 |
| Total Professional Replacement (Aftermarket) | $123 - $267 |
| Total Professional Replacement (OEM) | $165 - $290 |
DIY Savings
Replacing an ABS sensor is a straightforward DIY job that most home mechanics can complete in under an hour with basic tools. Doing it yourself can save you over $100 in labor costs.
Frequently Asked Questions
How do I know which ABS sensor is bad?
The only reliable way is to use an OBD2 scan tool that can read ABS system codes. The tool will display a specific code (like C1234 for the right front wheel) that pinpoints the exact sensor that has failed or is providing a bad signal.
Can I replace just one sensor?
Yes. You only need to replace the specific sensor that has failed. The sensors operate independently, and there is no need to replace them in pairs.

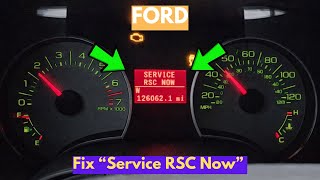

What is the "Service RSC Now" message?
RSC stands for Roll Stability Control, a key feature of Ford's AdvanceTrac system. It uses the wheel speed sensors to detect a potential rollover situation. When a sensor fails, the RSC system is disabled, and this warning message appears along with the ABS and traction control lights.
🎬 Watch how to troubleshoot the Service RSC Now warningIs any special tool needed for replacement?
No special tools are required. A basic socket set (typically 8mm or 10mm for the sensor bolt), a jack, and jack stands are all that's needed. A torque wrench is recommended for tightening the wheel's lug nuts correctly after the job is done.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6L2Z-2C204-A 6L2Z-2C190-A 4L2Z-2C204-C 7L2Z-2C190-A

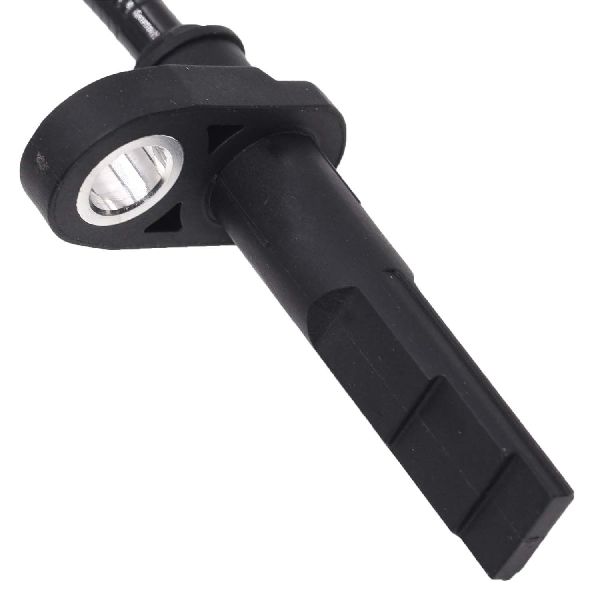

The sensors for the 2006-2011 Ford Explorer are magnetic type sensors with a 2-pin electrical connector. Front and rear sensors have different part numbers and are not interchangeable. Some models may have different sensors for the left and right sides.
