Audi A6 Engine Oil Pressure Switch Guide (2006-2011)
That red oil pressure warning light on your A6 dashboard is serious—here’s how to diagnose the problem.
- Never ignore a red oil pressure light; stop the car immediately and check the oil level.
- Before replacing the sensor, investigate TSBs related to the oil filter housing, as this is a common cause of the warning.
- Replacement difficulty varies greatly by engine; the 4.2L V8 is a major job requiring intake manifold removal.
- For this critical sensor, choosing a reputable aftermarket brand like Hella or Vemo is a safer investment than a budget part.
Is Your Audi A6 Oil Pressure Light On?
Seeing the red oil pressure warning light illuminate on the dash of your 2006-2011 Audi A6 is a nerve-wracking experience. The message often commands you to "shut vehicle off". While this could signal a serious internal engine problem, it is often caused by a simple, inexpensive failed oil pressure switch. This sensor is a known failure point, and it can either stop reading pressure correctly or start leaking oil. Before you panic, it's important to diagnose the issue properly, as the fix could be easier than you think.
First Step: Check Your Oil Level
Before assuming the sensor has failed, immediately and safely pull over, turn off the engine, and check the engine oil level using the dipstick. Driving with low oil can destroy your engine. If the oil level is correct, the problem is likely the sensor, its wiring, or another issue outlined in this guide.
Symptoms of a Failing Oil Pressure Switch on an A6
- Red Oil Pressure Warning Light: The most common symptom is the red oil pressure light turning on, especially at idle or when the engine warms up.
- Check Engine Light with Code P164D00: A faulty switch can trigger the check engine light. A common trouble code is P164D00, which points to a malfunction in the reduced oil pressure switch circuit.
- Visible Oil Leak: The switch itself can fail, causing oil to leak from its plastic housing or electrical connector. On the 4.2L V8, this can be a significant leak that appears to come from everywhere.
- Incorrect Gauge Reading: If your A6 has an oil pressure gauge, it may show zero or fluctuate wildly.
Known Issues for 2006-2011 Audi A6
Audi has released Technical Service Bulletins (TSBs) for issues that cause the exact same symptoms as a failed switch. It is critical to investigate these first:
- TSB 2041093/4: This bulletin notes that a rubber plug and spring inside the oil filter housing can become dislodged or weak, causing a drop in pressure reading and triggering the P164D00 code. This is a common issue and should be checked during an oil change. 🎬 Watch a professional diagnosis of this common oil pressure fault.
- TSB 2033379/1: While for slightly newer models, this TSB highlights that using an oil filter that is too short can also cause false low-pressure warnings. Always use a high-quality, correct-sized filter.
Choosing the Right Aftermarket Oil Pressure Switch
When it comes to sensors for a German vehicle, quality matters. While an OEM (Original Equipment Manufacturer) switch from an Audi dealer offers the highest quality and peace of mind, a good aftermarket part can provide reliable performance for less money. Aftermarket brands for your A6 fall into a few tiers.
Tier 1: OEM-Equivalent Brands
These brands are known for manufacturing parts for Audi or for having a strong reputation for quality and reliability. They are the safest bet outside of the dealership.
- Hella: A well-respected German company that produces a wide range of electronics and sensors, often for original equipment.
- Vemo: Another German brand specializing in electronic parts, often considered a reliable OEM-quality alternative.
Tier 2: Reputable Aftermarket Brands
These brands offer a balance of quality and value. They are generally reliable, though forum discussions show that quality can sometimes be inconsistent compared to Tier 1.
- Standard Ignition (SMP): A large, established American company that produces a vast catalog of engine management parts.
- Walker Products: A US-based company specializing in fuel delivery and engine sensors.
- Facet: An Italian brand with a long history of producing electronic components.
Tier 3: Value-Oriented Brands
These brands focus on affordability. While functional, they may not have the same long-term durability or precise calibration as higher-tier options. For a critical sensor like this, it's often worth spending a little more.
- Beck Arnley: This brand re-boxes parts from various global sources. Quality can be inconsistent; some forum members have reported premature failures of their parts on Audis.
- Global Parts / A-Premium: These are typically budget-focused brands.
A Note on Sensor Quality
For a sensor that can trigger a "stop engine" warning, using a Tier 1 or Tier 2 brand is highly recommended. The small cost savings of a value brand isn't worth the risk of a false warning or premature failure, especially on engines where the sensor is difficult to access.
Estimated Replacement Costs
| Part/Service | Estimated Cost |
|---|---|
| New OEM Switch | $60 - $110 |
| New Aftermarket Switch | $8 - $45 |
| Shop Labor | $100 - $450 |
Note: Labor costs vary significantly based on which engine your A6 has. The 4.2L V8 is much more labor-intensive than the 2.0T or 3.2L V6.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on my Audi A6?
The location depends on your engine. On the 2.0T engine, it is typically found on the oil filter housing assembly on the side 🎬 See how to fix the oil light on 2.0T engines. of the engine. On the 4.2L V8 engine, it is in a much more difficult location, under the intake manifold in the valley of the engine. The 3.2L V6 location is also near the oil filter housing. Always consult a repair manual for your specific engine.
Is it difficult to replace the oil pressure switch myself?
The difficulty ranges from easy to very difficult. On a 2.0T, an experienced DIYer can often change it in under an hour. However, on the 4.2L V8, the job requires removing the entire intake manifold 🎬 Watch this walkthrough for replacing the sensor on a V8 engine. and can take 3-4 hours. If you are not comfortable with extensive engine work, the 4.2L V8 job is best left to a professional.
Are there any recalls for this problem?
No. Searches of the NHTSA database show active recalls for the 2006-2011 Audi A6, but they are for airbag inflators, not the engine oil pressure system.
Could something else cause the oil pressure light?
Yes. Besides low oil level and a bad sensor, the warning can be caused by a faulty oil filter housing plug (see TSBs above), worn wiring to the sensor, a clogged oil pickup tube, or a failing oil pump. If a new sensor doesn't fix the issue, a mechanic should perform a manual oil pressure test to check the health of the oil pump.
Helpful Videos

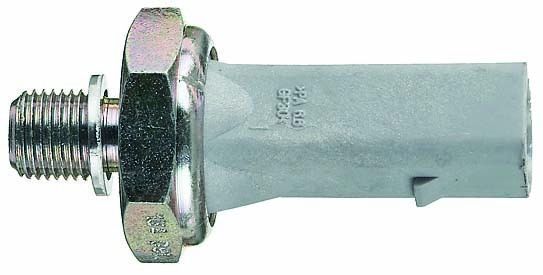

Technical Specifications
OEM Part Numbers: 06E919081D
The oil pressure switch is a pressure-activated electronic switch. The correct part will have a specific pressure rating (BAR) and electrical connector for your engine. Some engines use multiple switches for different pressure stages.
