Chevrolet Equinox 2005-2024 Engine Crankshaft Position Sensor: A Complete Guide
If your Equinox is stalling, has trouble starting, or the check engine light is on, the crankshaft sensor is a likely suspect.
- Stalling and no-start are critical symptoms; do not drive the vehicle if these occur.
- Location and part number vary significantly by engine; verify fitment for your specific Equinox.
- For this critical sensor, stick with OEM brands like ACDelco or reputable aftermarket like Delphi and NGK to ensure reliability.
- Check for TSBs and simple fixes like cleaning rust from the mounting surface before assuming the new part is bad.
Is Your Equinox Stalling or Refusing to Start?
A failing crankshaft position sensor is one of the most common reasons for an Equinox that cranks but won't start. The engine's computer is flying blind, without the key information it needs to manage the engine. Symptoms often start small, like a brief hesitation or a rough idle, but can quickly lead to your vehicle stalling in traffic or leaving you stranded.
Common Symptoms of a Bad Crankshaft Sensor
Watch for these signs in your 2005-2024 Equinox. A bad crankshaft sensor can mimic other problems, but if you have two or more of these symptoms, it's a strong possibility.
- Check Engine Light: This is often the first warning. Codes like P0335 or P0336 point directly to the crankshaft sensor circuit.
- Engine Won't Start: The engine turns over (cranks) but never fires up.
- Stalling: The engine cuts out unexpectedly, often when slowing down or at idle. This is a serious safety issue.
- Rough Idle and Misfires: The engine shakes or vibrates at a stop, and you may feel a stutter or hesitation while driving.
- Poor Acceleration: Your Equinox may feel sluggish and slow to respond when you press the gas pedal.
Known Issues for Chevrolet Equinox
Technical Service Bulletin (TSB) 17-NA-317: Some 2018 models may experience shuddering, stalling, or cruise control disengaging with codes like P034B. GM identified that the crankshaft sensor wiring can pick up electrical interference. The fix involves a special jumper harness to shield the circuit. If you have a newer Equinox with these issues, a new sensor alone may not fix it.
TSB for V6 Engines (PIP3423J): On V6 engines from roughly 2008-2014, certain engine codes (P0016, P0017) can sometimes be caused by the sensor's reluctor ring slipping on the crankshaft itself. This is a much more serious mechanical issue than a bad sensor.
Rust Buildup: On older Equinox models, rust can form on the engine block where the sensor mounts. This creates a small gap, making the sensor's reading erratic and triggering a P0336 code. Simply removing the sensor and cleaning the rust off the mounting surface can solve the problem.
Choosing the Right Aftermarket Sensor
For a part this critical, quality matters. While a cheap sensor might save you money today, it can fail quickly and leave you with the same problem. Here’s how the brands break down.
| Brand Tier | Brands | Honest Assessment |
|---|---|---|
| OEM / Premium Aftermarket | ACDelco, Delphi, NGK, Bosch, Hitachi | These are your best and safest bets. ACDelco is GM's own brand. Delphi, NGK, and Bosch are often the original manufacturers for GM. They offer the highest reliability and are strongly recommended for this part. |
| Quality Aftermarket | Standard Ignition (SMP), Beck Arnley, Holstein | These brands have a solid reputation for producing reliable parts that meet or exceed OEM specifications. They are a good alternative if a premium brand is not available. |
| Economy Aftermarket | Dorman, Walker Products, True Tech, Global Parts | These brands offer a low price point. However, for a critical sensor like the crankshaft sensor, they are a gamble. Forum users frequently report issues with economy sensors failing prematurely or not working correctly out of thebox. Consider these only if budget is the absolute top priority. |
Pro Tip: Check Your Engine
The 2005-2024 Equinox has used many different engines. The location of the crankshaft sensor and the part number itself will change depending on if you have a 3.4L V6, 2.4L 4-cylinder, 1.5L Turbo, or another engine. Always verify the part fits your specific year and engine before ordering.
Frequently Asked Questions
Can I drive my Equinox with a bad crankshaft sensor?
No. A failing sensor can cause the engine to stall at any time, including at high speeds or in intersections, which is extremely dangerous. It's best to get the vehicle repaired immediately.
Where is the crankshaft sensor located on my Equinox?

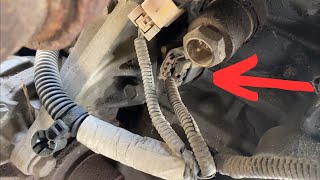

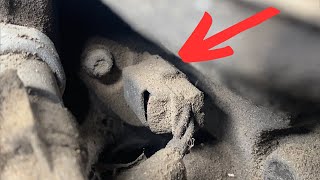

The location varies by engine. On the 2005-2009 3.4L V6, it's on the lower rear of the engine. 🎬 See how to replace the sensor on 3.4L V6 models. On the 2010-2017 2.4L, it's on the front of the engine below the oil filter. 🎬 Watch this 2.4L sensor location and replacement walkthrough. On 2018+ 1.5L models, it's on the passenger side near where the transmission meets the engine. Always consult a repair guide for your specific engine.
Is replacing the crankshaft sensor a DIY job?
Yes, for many people it is. The sensor is typically held by a single 10mm bolt. The main challenge is access, as it can be in a tight spot. If you are comfortable jacking up your vehicle safely and working in tight spaces, you can likely do this job in 1-2 hours.
Why didn't a new sensor fix my problem?
If a new, quality sensor doesn't solve the issue, check other causes. The problem could be damaged wiring (see TSB 17-NA-317), corrosion on the connector, rust on the mounting surface creating a gap, or a more serious issue with the sensor's reluctor ring on the crankshaft.
Does my Equinox need a "relearn" procedure after replacement?
Some GM vehicles require a Crankshaft Position System Variation Learn procedure after replacing the sensor, which requires a special scan tool. If this isn't performed, it can cause a persistent check engine light or rough running. Check a repair manual for your specific year and engine to see if this procedure is necessary.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12662536 12588992 12674704 25203317

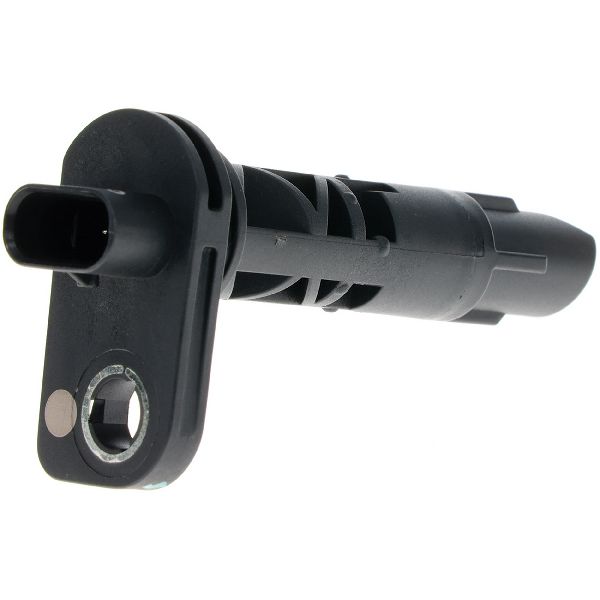

A small magnetic or Hall-effect sensor that reads teeth on a reluctor wheel attached to the crankshaft. It is typically held in place by a single bolt and uses a 2-pin or 3-pin electrical connector depending on the generation.
