Buick LaCrosse Air Conditioning Pressure Transducer Guide (2005-2019)
Is your Buick LaCrosse's A/C blowing warm air? The pressure transducer could be the problem.
- A bad HVAC pressure transducer is a common reason for the A/C to blow warm air in a 2005-2019 LaCrosse.
- Look for Check Engine Light codes P0532 or P0533, which point directly to a problem in the pressure sensor circuit.
- Replacement is an easy DIY job that usually doesn't require evacuating the A/C system.
- Quality aftermarket brands like Four Seasons and Global Parts offer a reliable repair for a fraction of the OEM part cost.
Is Your LaCrosse's A/C Sensor Failing?
When an HVAC pressure transducer starts to fail on your 2005-2019 Buick LaCrosse, the symptoms are usually very noticeable. Because this sensor is the main safety control for the A/C compressor, a bad signal will cause the computer to shut the system down to prevent damage. You will likely experience one or more of the following issues.
A/C Blows Warm Air
This is the most common symptom. If the sensor sends an incorrect reading (either too high or too low) to the computer, the computer will prevent the A/C compressor clutch from engaging. Without the compressor running, the refrigerant doesn't circulate, and your vents will only blow warm or ambient-temperature air.
Intermittent Cooling
A failing sensor might work correctly some of the time and send bad signals at other times. This can cause your A/C to cycle on and off randomly. You might get cold air for a few minutes, then have it turn warm, only to get cold again later in your drive. This rapid cycling, known as short-cycling, can put extra wear on the A/C compressor clutch.
🎬 See how to test your A/C pressure switch at home.Check Engine Light

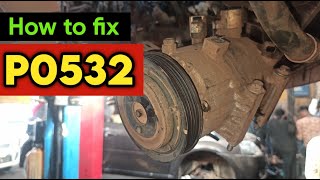

A faulty pressure transducer will often trigger the Check Engine Light on your dashboard. If you use an OBD-II scanner, you will likely find codes such as P0532 (A/C Refrigerant Pressure Sensor 'A' Circuit Low) or P0533 (A/C Refrigerant Pressure Sensor 'A' Circuit High). A P0532 code can mean the sensor is bad, the wiring is damaged, or the refrigerant level is actually low. A P0533 code 🎬 Watch: Understanding P0532 and P0533 diagnostic trouble codes. often points to a bad sensor, a circuit short, or the system being overcharged with refrigerant.
Choosing the Right Aftermarket HVAC Pressure Transducer
When replacing the A/C pressure transducer on your LaCrosse, you don't need to spend a lot of money on a dealership part. For a simple electronic sensor like this, a quality aftermarket part offers a reliable and cost-effective solution. The main difference you will notice is the price.
Aftermarket Brand Quality: Four Seasons vs. Global Parts
Both Four Seasons and Global Parts Distributors (GPD) are well-established brands in the automotive A/C parts world.
- Four Seasons: As a brand under Standard Motor Products (SMP), Four Seasons has a reputation for producing reliable aftermarket components. Forum discussions among mechanics and DIYers often show confidence in the brand for its quality and fit, making it a trusted choice.
- Global Parts (GPD): GPD is another major supplier of aftermarket A/C parts. They provide a wide range of components that meet original specifications.
Pro Tip: For a non-moving electronic part like a pressure sensor, both Four Seasons and Global Parts are solid choices that provide the same function as the original part at a much lower cost. The decision between them often comes down to price and availability.
Cost of Replacing a Buick LaCrosse HVAC Pressure Transducer
The cost to fix your LaCrosse's A/C can vary, but replacing the pressure transducer is one of the more affordable repairs. Below is an estimate of what you can expect to pay.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Four Seasons, Global Parts) | $40 - $50 |
| New OEM (ACDelco) | $70 - $120 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost (DIY) | $40 - $50 |
| Total Estimated Cost (Installed at a shop) | $90 - $220 |
Frequently Asked Questions
Do I need to recharge the A/C system after replacing the sensor?
Most likely, no. The A/C pressure transducer is typically mounted on a Schrader valve, similar to the valve stem on your tires. This allows you to unscrew the old sensor and install the new one without letting the refrigerant escape from the system. This makes the replacement a quick and easy job that doesn't require specialized A/C service equipment.
Where is the HVAC pressure transducer located on my Buick LaCrosse?
The sensor is located in the engine bay, screwed into one of the metal A/C lines. Its exact position can vary slightly by year and engine, but it is generally found on the high-pressure line, which is the smaller diameter pipe. On some LaCrosse models, it can be found near the passenger side of the engine bay, sometimes under the air filter housing.
🎬 Watch this walkthrough for locating and replacing the sensor.Can a bad pressure transducer damage my A/C compressor?
It's unlikely to cause direct damage, because its job is to protect the compressor. When the sensor fails, the computer's default action is to disable the compressor to prevent it from running under unsafe pressure conditions. However, if the sensor causes the compressor to cycle on and off rapidly, this can cause premature wear on the compressor's clutch over time.
Are there any recalls for the Buick LaCrosse A/C pressure sensor?
No. While there was a recall for the 2011 LaCrosse HVAC system, it was for a software problem in the control module and was not related to the pressure transducer itself. There are no widespread recalls or technical service bulletins (TSBs) specifically for a faulty A/C pressure transducer across the 2005-2019 model years.
Helpful Videos
Technical Specifications
The HVAC Pressure Transducer is a 3-wire sensor that receives a 5-volt reference signal, a ground, and sends a variable voltage signal back to the ECM corresponding to refrigerant pressure.
