A Ford Owner's Guide to the 2005-2014 F-150 Headlight Switch
Having trouble with your headlights? Your dashboard switch could be the reason why.
- You must match the new switch to your truck's options: with or without fog lights and with or without automatic headlights.
- Replacement on 2009-2014 models is very easy for a DIYer; 2005-2008 models can be more difficult.
- Symptoms include headlights not working, staying on, or dashboard lights failing.
- If a new switch doesn't fix the issue, check fuses, relays, and the Body Control Module (BCM) next.
Signs of a Failing Headlight Switch
When a headlight switch starts to go bad, it can cause a number of strange lighting issues. Because the switch controls several different lights, you might have one problem but not another. Look out for these common signs:
- Intermittent or No Headlights: Your headlights may flicker, or they may not turn on at all, even when the switch is in the 'on' position.
- Headlights Won't Turn Off: The switch can fail in the 'on' position, leaving your headlights on even when the truck is off. This will drain your battery.
- Dashboard Lights Don't Work: The switch also controls the lights for your instrument panel. A bad switch can cause the dash lights to stop working, sometimes by themselves or at the same time as the headlights.
- Fog Light or Autolamp Problems: If your truck has these options, a faulty switch can prevent them from working correctly.
- Burning Smell: A burning plastic smell coming from the dashboard around the switch is a serious warning sign. This indicates the switch is overheating and could be a fire hazard. You should stop using the lights and replace the switch immediately.
Choosing the Right Aftermarket Switch
When buying a new aftermarket headlight switch, the most important step is to match the part to your truck's exact features. An incorrect switch will not work properly. Before you order, check if your F-150 has:
- Fog Lights
- Automatic Headlights (often marked with an 'A' or 'Auto' on the dial)
The price of the switch can change a lot based on these features. Standard Ignition is a well-known aftermarket brand that produces replacements for the F-150. While the original Ford part is made by Motorcraft, a quality aftermarket switch can be a reliable, cost-effective alternative, as the failure is often due to age and wear on the internal electronic contacts.
Generation and Installation Differences
The 2005-2014 year range covers two different F-150 generations. The replacement process is not the same for both.
- For 2009-2014 F-150s: The replacement is very simple. The switch is held in by clips and can be carefully pried out from the dashboard with a plastic trim tool. The wiring is unplugged, and the new switch snaps into place, often in less than 15 minutes. 🎬 Watch: This quick video shows the 2009-2014 switch replacement.

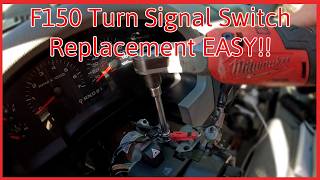

- For 2005-2008 F-150s: The replacement can be more difficult. It may require removing the plastic trim around the steering column and parts of the lower dash to access the switch. 🎬 See this walkthrough for replacing the switch on 2005-2008 models.
Headlight Switch Replacement Cost
The cost to replace your headlight switch depends on your truck's year, features, and whether you do it yourself. Switches for the 2005-2008 models are often more expensive than those for the 2009-2014 models.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (e.g., Standard Ignition) | $54 - $443 |
| New OEM (Motorcraft) | $55 - $410 |
| Used OEM | $25 - $70 |
| Shop Labor | $55 - $100 |
Frequently Asked Questions
Can I install a new headlight switch myself?
For most 2009-2014 models, yes. The job is very easy and requires only a simple trim tool. For 2005-2008 models, it can be more complex and may require removing dash panels, so it depends on your comfort level with more involved work.
Can I add fog lights or automatic headlights by just changing the switch?
No. Adding features like fog lights or autolamps requires additional wiring, relays, and sometimes computer programming. Simply swapping the switch will not make these features work.
Why did my headlight switch fail?
Failure is usually due to age and use. The electrical contacts inside the switch wear out over time, leading to a poor connection. On older vehicles, the switch handled the full electrical current for the lights, which caused heat and wear. Even on newer trucks where the switch sends a low-power signal to a module, the internal components can still fail.
Are there any recalls for the headlight switch on my F-150?
Searches of the NHTSA database and other sources did not find any specific recalls for the headlight switch itself on 2005-2014 Ford F-150 models. Most issues are related to normal component wear over time.
If a new switch doesn't fix the problem, what else could it be?
If a new switch doesn't solve your lighting issue, the problem could be a blown fuse, a bad relay, a wiring issue, or a problem with the Body Control Module (BCM), especially on 2009-2014 trucks. Always check the fuses first, as that is the simplest and cheapest fix.

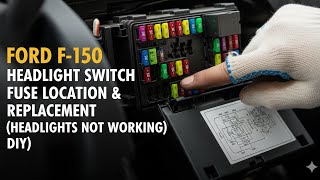

🎬 Watch: How to find and replace your headlight switch fuse.Helpful Videos
Technical Specifications
OEM Part Numbers: 9L3Z-11654-CA SW-6637 SW-6635 AL3T-13D061-BA
Dash-mounted rotary dial switch. Controls headlights, parking lights, and instrument panel dimmer. Available with integrated push/pull switch for fog lights and/or an 'Auto' position for automatic headlamps.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
