A Guide to the Serpentine Belt for the 2005-2013 Toyota Corolla
Understand the symptoms of a failing serpentine belt and learn how to choose the right replacement for your specific Corolla.
- First, identify your Corolla's generation: 2005-2008 models have an automatic tensioner, while 2009-2013 models have a manual alternator adjustment.
- Inspect your belt for cracks, fraying, or glazing; listen for squealing noises, which are clear signs replacement is needed.
- If you have a 2005-2008 model, it is highly recommended to replace the belt tensioner at the same time as the belt to prevent future noise and failure.
- High-quality aftermarket brands like Gates, Continental, and Bando offer reliable performance that is comparable to OEM.
Is Your Corolla's Serpentine Belt Failing?
A serpentine belt is a wear-and-tear item, typically lasting between 60,000 and 100,000 miles. When it starts to fail, your car will give you several warning signs. Ignoring them can leave you stranded.
- Squealing or Chirping Noises: The most common symptom is a high-pitched squeal from the engine bay, especially when you first start the car or accelerate.
- Visible Wear and Tear: Pop the hood and look at the belt. Signs of trouble include cracks, frayed edges, missing pieces of the ribbed section, or a shiny, glazed appearance.
- Accessory Failure: You may notice your air conditioning isn't blowing cold, the steering feels heavy and difficult to turn, or the battery warning light comes on your dashboard.
- Engine Overheating: If the belt slips or breaks, it can no longer turn the water pump, causing your engine's temperature to rise quickly.
Critical: Know Your Corolla's Generation
The 2005-2013 year range covers two different Corolla generations with completely different belt tensioner systems. Ordering the right parts and using the correct procedure depends on your specific model year.
- 2005-2008 (9th Generation): These models use a 1.8L (1ZZ-FE) engine with an automatic, spring-loaded tensioner. Replacement involves using a wrench on the tensioner pulley to release the spring's pressure and slip the belt off. 🎬 See how to replace the belt on 2003-2008 Corollas.

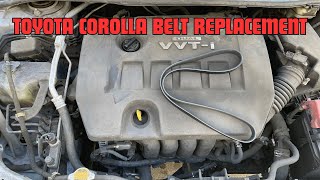

- 2009-2013 (10th Generation): These models use a 1.8L (2ZR-FE) engine with a manual tensioner built into the alternator bracket. Replacement requires loosening the alternator's pivot and locking bolts, then turning a long adjustment screw to create slack. 🎬 Watch: Step-by-step serpentine belt replacement for 2009-2013 models.
Always confirm your vehicle's year before purchasing parts or attempting a repair.
Choosing the Right Aftermarket Serpentine Belt
While you can always get a belt from a Toyota dealership, high-quality aftermarket brands offer excellent performance and value. The original belts for Toyota are often made by Bando or Mitsuboshi.
Pro Tip: While replacing the belt, it's a great time to also replace the belt tensioner (on 2005-2008 models) or any idler pulleys. A worn-out tensioner is a common cause of noise and premature belt failure. A Technical Service Bulletin (TSB EG021-07) was issued for 2003-2007 models for noise, recommending replacement of both the belt and tensioner if damage is found.

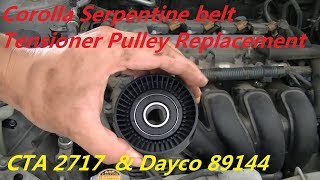

🎬 Watch this guide to diagnosing and fixing belt tensioner noise.Aftermarket Brand Tiers
- Premium Brands (Gates, Continental): These brands are well-respected in the industry for producing belts that meet or exceed OEM quality. They are known for durability and quiet operation.
- OEM-Quality Brands (Bando, INA): Bando is a known OEM supplier for Toyota, so their aftermarket belts are a reliable choice for a direct, quality replacement. INA is another established OEM supplier offering dependable parts.
- Standard Brands (Dayco): Dayco offers a good balance of quality and affordability. They are a popular choice for DIY repairs and are considered a reliable product.
Cost of Replacing a Toyota Corolla Serpentine Belt
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Belt | $15 - $72 |
| New OEM Belt | $30 - $60 |
| Shop Labor | $100 - $150 |
Frequently Asked Questions
How often should I replace my Corolla's serpentine belt?
There is no exact mileage, but a general guideline is to inspect it during every oil change and plan for replacement between 60,000 and 100,000 miles, or as soon as it shows signs of wear like cracking or fraying.
Do I need to replace the tensioner with the belt?
For 2005-2008 models with the automatic tensioner, it is highly recommended. The spring can weaken over time, and the pulley bearing can wear out, causing noise and belt issues. For 2009-2013 models, there is no automatic tensioner to replace, but you should inspect the idler pulley for noise or wobble.
Is the belt different for Corollas made in Japan vs. North America?
Yes, for some model years, the part number can be different. Check your vehicle's VIN number. If it starts with a 'J', it was made in Japan. If it starts with a '1', '2', or '4', it was made in North America. Always use a part finder to verify fitment for your specific VIN.
Is this a difficult DIY job?
For both generations, this is considered a relatively easy DIY job for someone with basic tools. The 2005-2008 models require releasing the automatic tensioner, while the 2009-2013 models require loosening and adjusting the alternator. Many online videos demonstrate the process for each specific generation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90916-02679 90916-W2004 90080-91139
Belt length and part number vary based on engine (1.8L vs. 2.4L for XRS models) and vehicle manufacturing location (Japan vs. North America). The 2005-2008 1.8L models use an automatic tensioner system, while 2009-2013 1.8L models use a manual alternator-based tensioning system.
