A Ford F-150 Owner's Guide to the 2005-2009 Vehicle Speed Sensor
Fix your F-150's erratic speedometer and harsh shifting by understanding this critical transmission sensor.
- The most common symptoms of failure are a faulty speedometer and harsh, unpredictable transmission shifting.
- The correct part is the Output Shaft Speed (OSS) sensor, located on the driver's side of the transmission.
- This is a simple DIY repair that can be done with basic tools in under an hour.
- Choose a quality aftermarket brand like Delphi, NGK, or Standard Ignition for reliability; avoid no-name parts.
Is Your F-150 Shifting Hard or Is the Speedometer Acting Up?
If you own a 2005-2009 F-150, you might eventually face issues like a speedometer that drops to zero, harsh gear changes, or a flashing overdrive light. More often than not, the culprit is a failing Output Shaft Speed (OSS) sensor. This sensor is your truck's primary way of knowing how fast it's going. When the signal becomes weak or disappears, the transmission doesn't know when to shift, leading to poor performance and drivability issues.
🎬 Watch: 5 common symptoms of a failing speed sensorA Note on Known Issues
While Ford issued a major recall for sudden downshifting related to this sensor on 2011-2014 models, the 2005-2009 generation does not have a specific recall for this part. Failures on these model years are considered a standard repair item. The most common fault codes associated with a bad sensor are P0720 (Output Speed Sensor Circuit Malfunction) and P0722 (Output Speed Sensor No Signal).
🎬 See how to diagnose P0720 and P0722 error codesChoosing the Right Aftermarket Speed Sensor
When it comes to electronic sensors, quality matters. A cheap, poorly made sensor can fail quickly or provide an incorrect signal, leaving you with the same problems. For a critical part like the OSS, it's best to choose a brand with a reputation for quality electronics.
- Top Tier (OEM Quality): Brands like Delphi and NGK (NTK) are often original equipment manufacturers for major car brands. Choosing one of these gives you the highest confidence in fit and long-term performance, closely matching the original Ford part.

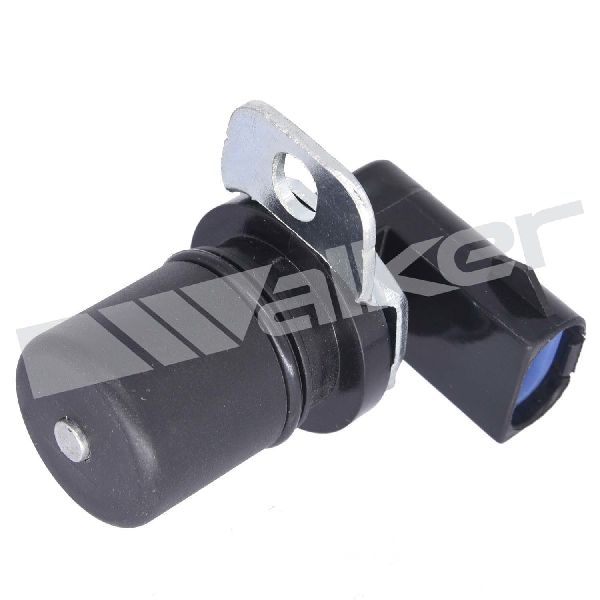

- Reliable Aftermarket: Brands like Standard Ignition (SMP) and Walker Products offer a good balance of quality and price. They are well-established in the aftermarket and are a dependable choice for DIYers and professional shops alike.
- Budget-Friendly: Holstein is another available brand that provides a cost-effective option for this repair.
Pro Tip: Avoid unbranded, "white-box" sensors. Saving a few dollars isn't worth the risk of the part failing prematurely and having to do the job twice. Stick with a recognized brand name.
Cost to Replace the Vehicle Speed Sensor
| Part or Service | Estimated Cost |
|---|---|
| New OEM Ford Sensor | $40 - $80 |
| New Aftermarket Sensor | $20 - $55 |
| Shop Labor | $75 - $150 |
| Total (DIY) | $20 - $55 |
| Total (Shop Repair) | $95 - $230 |
Frequently Asked Questions
Where is the vehicle speed sensor located on my 2005-2009 F-150?
The sensor is located on the driver's side of the transmission, toward the rear of the main case. It is held in by a single 8mm bolt and has an electrical connector plugged into it. You will need to safely get under the truck to access it.
Can I replace this sensor myself?
Yes, this is a very DIY-friendly repair. It requires basic hand tools, primarily an 8mm socket and ratchet. The main challenge is that the sensor can sometimes be stuck in the transmission housing due to a swollen O-ring, or the small bolt can be corroded. Be gentle when removing the old sensor to avoid breaking it off in the transmission case.
🎬 Follow this step-by-step guide to replace the sensor yourselfWhat are the common error codes for a bad speed sensor?
The two most common diagnostic trouble codes (DTCs) are P0720 (Output Speed Sensor Circuit Malfunction) and P0722 (Output Speed Sensor No Signal). These codes directly point to a problem with the sensor or its wiring.
My speedometer works, but the transmission shifts hard. Could it still be the speed sensor?
Yes. The sensor can fail intermittently or send an erratic signal that isn't bad enough to kill the speedometer completely but is still confusing the transmission control module. Hard shifting, especially between first and second gear or when coming to a stop, is a classic symptom.
Helpful Videos
Technical Specifications
OEM Part Numbers: 7L3Z-7H103-A 4L3P-7H103-AA F8AZ-7H103-AA
Mounts on the driver's side of the 4R70E/4R75E automatic transmission. Held in by one 8mm bolt.
