Chevrolet Colorado HVAC Pressure Transducer Guide: 2004-2022
Is your Colorado's air conditioning blowing warm or cutting out? Your HVAC pressure transducer could be the problem.
- A failing HVAC pressure transducer commonly causes warm or intermittent A/C on the 2004-2022 Colorado.
- This is a simple DIY replacement for most owners, as the system does not need to be evacuated.
- Look for DTC codes P0532 or P0533, which strongly indicate a problem with this sensor or its circuit.
- Aftermarket brands like Four Seasons and Global Parts are budget-friendly, while OEM (ACDelco) offers the highest reliability.
Is Your Colorado's A/C Acting Up?
If your truck's air conditioning isn't working correctly, a faulty HVAC pressure transducer is a common suspect. When this sensor fails, it sends incorrect information to the vehicle's computer, leading to several noticeable problems. Ignoring a bad sensor won't typically leave you stranded, but it will mean no cold air in the cabin.
Symptoms of a Failing HVAC Pressure Transducer
- A/C Blows Warm Air: The most common symptom is air from the vents that isn't cold. If the sensor incorrectly reports low or high pressure, the computer will prevent the A/C compressor from turning on to protect it.
- Intermittent Cooling: The A/C might work for a while and then suddenly stop, cycling between cold and warm air randomly. This can happen if the sensor is giving erratic readings.
- A/C System Doesn't Turn On at All: The compressor clutch may not engage when you turn on the A/C. The pressure transducer is a key safety switch, and if it fails, the system may not activate.
- Check Engine Light: A failing transducer can trigger the Check Engine Light. You may see diagnostic trouble codes (DTCs) such as P0532 (sensor circuit low) or P0533 (sensor circuit high) when you scan the vehicle. 🎬 See how a P0533 code causes your A/C to stop cooling.
Other Common Colorado A/C Problems
Especially on first-generation Colorados (2004-2012), a very common issue is a failed blower motor resistor or its wiring connector. Symptoms of a bad resistor include the fan only working on the highest setting (speed 4) or not at all. This is a different part from the pressure transducer.
🎬 Watch this video to fix blower motor and ground issues.Choosing the Right Aftermarket Transducer
For a part like the HVAC pressure transducer, you have a choice between Original Equipment (OEM) and aftermarket brands. While an OEM part from GM offers the highest assurance of quality and fit, a quality aftermarket part can provide significant savings.
- OEM (ACDelco): This is the same part your truck was built with. It offers the best reliability and peace of mind but comes at the highest cost.
- Aftermarket (Four Seasons, Global Parts): Brands like Four Seasons and Global Parts Distributors (GPD) are major suppliers of aftermarket A/C components. They offer a budget-friendly alternative to OEM. Reviews for these brands are often mixed; some users have success, while others report shorter lifespans compared to OEM parts. For a simple sensor like this, an aftermarket part is a reasonable choice if budget is a primary concern.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $40.19 - $49.98 |
| New OEM (GM Genuine) | $50 - $105 |
| Shop Labor | $50 - $150 |
Pro Tip: Check for Known Issues
For 2016-2021 models with the 2.8L Duramax diesel, be aware of a Technical Service Bulletin (TSB PIP5416D) regarding the engine wiring harness. Chafing near the A/C compressor can cause A/C problems and set various codes. Also, a service update (N222359250) was issued for some 2022 models for an incorrect part inside the climate control module, not the sensor itself.
Frequently Asked Questions (FAQ)
Can I replace the HVAC pressure transducer myself?
Yes, this is a very DIY-friendly repair for most owners. The sensor is typically located on one of the aluminum A/C lines in the engine bay and simply unscrews. The system has a Schrader valve (like a tire valve) where the sensor mounts, so you do not need to evacuate the refrigerant. You just unplug the old sensor, unscrew it with a wrench, screw the new one on, and plug it in. The entire job can often be done in under 30 minutes.
Why does my mechanic say the A/C system needs to be evacuated?
Some repair guides and shops follow a standard procedure for any A/C part replacement that includes recovering the refrigerant, which is costly. However, for this specific part on most vehicles, including the Colorado, it is not necessary due to the Schrader valve at the connection point. You can confirm this by looking at the new part; if it has a small pin in the center designed to depress the valve, evacuation is not needed.
Where is the pressure transducer located on my Colorado?

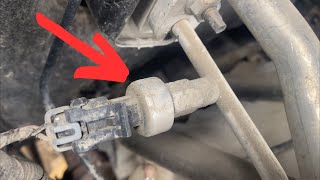

On the first-generation Colorado (2004-2012), the sensor is located on the driver's side of the engine bay, on an A/C line near the firewall. 🎬 Watch this 2004-2012 Colorado sensor location and replacement guide. The location is similar on second-generation models (2015-2022), situated on the high-pressure A/C line. Look for a small sensor with an electrical connector threaded into one of the metal A/C pipes.
What happens if I don't replace a bad pressure transducer?
Your A/C system will not function correctly, or at all. The transducer is a safety device for the A/C compressor. Driving with a bad one won't harm your engine, but it prevents the A/C from working and could lead to further compressor damage if the system were forced to run under unsafe pressures.
Helpful Videos
![Fix your AC issues for $20 [Blower Resistor and Ground Issues]](https://img.youtube.com/vi/mi2ZJjNAcn4/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 13587668 13502759 22634172 22678731
3-pin electrical connector, threads onto A/C line with Schrader valve.
