Ford F-150 Parking Brake Switch Guide for 2004-2014 Models
Troubleshoot and fix the persistent 'BRAKE' warning light on your 2004-2014 F-150 dashboard.
- A brake light that stays on is the #1 symptom of a bad parking brake switch.
- Always check your brake fluid level first, as a low level will also trigger the brake light.
- Replacement is very easy, requiring basic tools and about 30 minutes.
- Quality aftermarket brands like Standard Ignition and Rostra are reliable, cost-effective alternatives to OEM for this part.
Is Your F-150's Brake Light Lying to You?
The parking brake switch in the 2004-2014 Ford F-150 is a common wear item. It's a simple mechanical switch that gets pressed every time you use the foot-activated parking brake. Over thousands of cycles, the internal contacts can wear out or corrode, leading to false signals. This can cause the 'BRAKE' light on your dash to stay on when it shouldn't, or not come on when it should.
Not to be Confused with Later Model Recalls
You may have seen news about a major recall for F-150 parking brakes. That recall (NHTSA 23V-509) applies only to 2021-2023 models with an electric parking brake system. Your 2004-2014 truck uses a mechanical foot pedal and is not affected by this recall.
Symptoms of a Failing Parking Brake Switch
Before you replace the switch, make sure it's the real problem. The 'BRAKE' light can also mean low brake fluid. Always check your brake fluid reservoir first. 🎬 Watch: How to check your fluid and diagnose the light. If the fluid is full, a faulty switch is the next likely culprit. Common symptoms include:
- Brake Light Stays On: The most common symptom is the 'BRAKE' light remaining illuminated even after you've fully released the parking brake pedal.
- Intermittent Light: The light may flicker or come on randomly while driving, sometimes accompanied by a warning chime.
- Light Won't Turn On: Less commonly, the switch fails in the open position, and the 'BRAKE' light will never illuminate, even when the parking brake is fully engaged.
Choosing the Right Aftermarket Switch
For a simple part like a parking brake switch, a quality aftermarket replacement offers excellent value. The original OEM switch is not known for exceptional longevity, and top-tier aftermarket brands often meet or exceed original specifications. For this part, there is little practical difference in reliability between an OEM part and a reputable aftermarket one.
Brand Options:
- Standard Ignition (Standard Motor Products): A widely trusted name in aftermarket electronic parts, Standard Ignition offers a direct-fit replacement for the F-150. They are known for consistent quality and are a reliable choice.
- Rostra Powertrain: Rostra is a manufacturer of both OE and aftermarket electronic components and is recognized for its quality control, holding ISO-9001 certification. Their parts are engineered to be durable, direct-fit replacements.
Pro Tip: Easy DIY Replacement
Replacing the parking brake switch is a great job for a beginner. It is located on the parking brake pedal assembly under the dash and is typically held on by a single 7mm or 10mm bolt. The process involves removing a lower dash panel for access, unplugging the electrical connector, swapping the switch, and putting it all back together. The entire job can usually be done in under 30 minutes with basic hand tools.
🎬 See this step-by-step walkthrough of the switch replacement.Cost of Replacing a Parking Brake Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Rostra, Standard) | $20.95 - $26.32 |
| New OEM | $15 - $30 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Can I just unplug the switch to turn the light off?
Yes, you can unplug the switch to turn the light off as a temporary measure. However, you will lose the warning function that tells you the parking brake is engaged. It's better to replace the faulty part.
Is the parking brake switch the same as the brake light switch?
No. The parking brake switch activates the warning light on your dashboard. The brake light switch (also called the stoplight switch) is located on the main brake pedal arm and activates your rear brake lights when you press the pedal.
🎬 Watch: How to replace the main brake light switch.My brake light is on, but the parking brake switch is good. What else could it be?

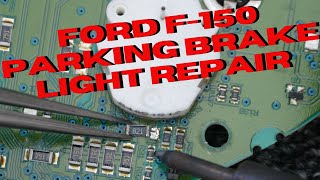

The most common alternative cause is a low brake fluid level in the master cylinder reservoir. In rare cases on the 2004-2008 models, a cracked solder joint on the instrument panel circuit board can also cause the light to stay on.
How do I test the switch?
You can test the switch with a multimeter. When unplugged from the truck, the switch should show continuity (a closed circuit) when the plunger is not pressed, and no continuity (an open circuit) when the plunger is pressed in.
Helpful Videos
Technical Specifications
OEM Part Numbers: F2UZ-15A851-A
2-terminal, male blade, screw-on, plunger-activated switch located on the parking brake pedal assembly.
