Chevrolet Malibu Engine Cylinder Head Bolt Set Guide (2004-2014)
Everything a Malibu owner needs to know about replacing Torque-to-Yield (TTY) head bolts during a head gasket job.
- Head bolts on the 2004-2014 Malibu are Torque-to-Yield (TTY) and MUST be replaced whenever the cylinder head is removed; they cannot be reused.
- Head bolt replacement is part of a larger head gasket job. The primary cost is labor, not the bolts themselves.
- Always choose a quality aftermarket brand like Elring or Victor Reinz to ensure a reliable repair and avoid repeating this expensive job.
- You must buy the correct bolt set for your specific engine (e.g., 2.2L, 3.5L, 3.6L), as they are not interchangeable.
Understanding Head Bolt Failure in Your Malibu
Head bolts themselves rarely fail on their own. Instead, they are replaced as part of a larger job, most commonly a head gasket replacement. A head gasket can fail from engine overheating, high mileage, or age. When the head gasket fails, the head bolts must be discarded and replaced with a new set. Reusing the old bolts is not an option for these engines.
The engines used in the 2004-2014 Malibu, such as the 2.2L Ecotec, 3.5L V6, and 3.6L V6, use 🎬 Watch this complete 3.5L head gasket and bolt replacement walkthrough. Torque-to-Yield (TTY) bolts. These are sometimes called 'stretch' bolts. They are engineered to be tightened past their normal elastic limit, causing them to permanently stretch. This one-time stretch provides the precise, strong clamping force needed for modern aluminum cylinder heads to seal correctly. Attempting to reuse TTY bolts will result in improper clamping force, leading to immediate head gasket failure, leaks, and potentially catastrophic engine damage.
Choosing the Right Aftermarket Head Bolt Set
When replacing head bolts on your Malibu, you have several aftermarket options. Since these bolts are critical to your engine's health, quality is paramount. The job is too labor-intensive to risk using a low-quality part. Here's a breakdown of common brands:
- Top Tier (OEM Quality): Brands like Elring and Victor Reinz are often Original Equipment Manufacturers (OEM) for many European and domestic car brands. They are known for producing high-quality gaskets and bolts that meet or exceed factory specifications. Choosing one of these brands is a safe bet for a reliable, long-lasting repair. Many professional mechanics trust these brands for their own vehicles and customer cars.
- Standard Tier: Brands like Apex may be positioned as a more budget-friendly option. While they can be a viable choice for owners on a tight budget, it's important to ensure the kit is specified as TTY and matches your exact engine. Given the critical nature of head bolts, investing in a top-tier brand is highly recommended to avoid the risk of premature failure and having to repeat this very expensive repair.
Pro Tip: Match the Bolts to Your Engine
The 2004-2014 Malibu was offered with several different engines, including the 2.2L, 2.4L, 3.5L, 3.6L, and 3.9L. Head bolt sets are engine-specific. A bolt set for a 2.2L Ecotec will not work on a 3.5L V6. Always verify the part fits your exact year, model, and engine size before ordering.
Cost to Replace Chevrolet Malibu Head Bolts
The cost of the head bolt set itself is a small fraction of the total repair cost. The majority of the expense is the extensive labor required to remove the cylinder head. This job is typically done by a professional mechanic.
| Category | Estimated Cost |
|---|---|
| New Aftermarket Head Bolt Set | $32 - $147 |
| Shop Labor (including Head Gasket) | $1,200 - $1,800+ |
| Total Professional Repair | $1,900 - $2,500+ |
Cost estimates are for reference only and can vary based on location, vehicle condition, and the specific shop.
Warning: This is Not a DIY-Friendly Job

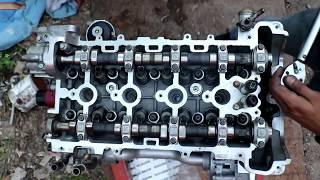

Replacing the cylinder head bolts is a complex and difficult job that requires specialized tools, including a torque wrench and a torque angle gauge. The procedure for tightening the bolts involves multiple steps and specific patterns to ensure even pressure. 🎬 See the specific Ecotec head installation and torque sequence here. Incorrect installation will lead to major engine failure. For these reasons, this repair is rated as having a very high difficulty and is best left to experienced, professional mechanics.
Frequently Asked Questions
Can I reuse my old head bolts?
No. The 2004-2014 Chevrolet Malibu uses Torque-to-Yield (TTY) bolts, which are designed for one-time use only. They permanently stretch when installed, and reusing them will lead to incorrect clamping force and certain head gasket failure.
Do I need special tools to install new head bolts?
Yes. You need a precision torque wrench and a torque angle gauge (or degree wheel). The bolts are tightened to a specific torque setting, and then turned an additional number of degrees. 🎬 Watch a professional demonstrate torquing Ecotec head bolts correctly. Following the manufacturer's sequence and specifications is critical.
Are there any recalls on the 2004-2014 Malibu for head bolts or head gaskets?
No, there are no specific recalls for head bolts or head gaskets on this generation of Chevrolet Malibu. Recalls for this period primarily concern issues like power steering, brake systems, and other components.
Should I replace anything else at the same time?
Absolutely. Since replacing the head bolts requires a complete teardown of the top end of the engine, it is standard practice to replace the head gasket, valve cover gaskets, intake and exhaust manifold gaskets, and any other seals that were removed. It's also a good time to inspect the water pump, timing chain/belt components, and thermostat.

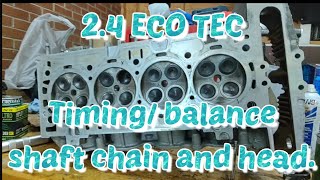

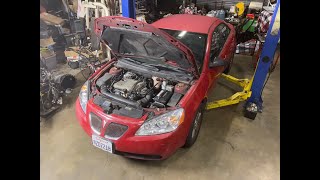

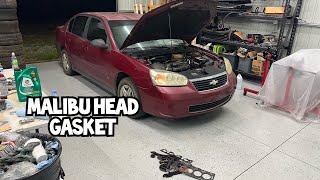

Helpful Videos
Technical Specifications
Torque-to-Yield (TTY), Single-Use Fasteners
