Ford Explorer Sport Trac Fuel Pump Driver Module Guide (2004-2010)
Solve your Sport Trac's stalling and no-start problems by understanding this common, easy-to-fix failure.
- The main cause of failure is corrosion from the aluminum module touching the steel frame; this is a known Ford design flaw.
- Symptoms often mimic a bad fuel pump, including stalling, no-start, and hesitation. Always check the FPDM first.
- Aftermarket replacements that include spacers or standoffs are a permanent fix for the corrosion issue.
- Replacement is a simple, 30-minute DIY job located above the spare tire that requires no special programming.
The Real Reason Your Sport Trac's FPDM Fails
If your 2004-2010 Explorer Sport Trac is experiencing stalling or won't start, the Fuel Pump Driver Module is a top suspect. The original module has a major design flaw related to its location. Ford mounted the bare aluminum module directly against the truck's steel frame rail, typically above the spare tire. This placement traps moisture, road salt, and dirt, causing a chemical reaction called galvanic corrosion. Over time, this corrosion eats through the aluminum casing, allowing water to seep in and destroy the internal circuit board.
Symptoms of a Failing FPDM
A bad FPDM mimics a failing fuel pump. Before you spend money on a new fuel pump, check this module first. Common symptoms include:
- Engine Stalling: The truck may stall unexpectedly while driving, sometimes after it has warmed up. This can be intermittent at first.

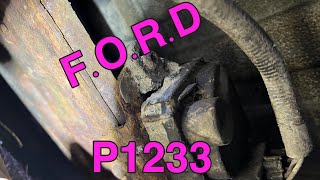

- Crank, No Start: The engine will turn over but won't start because it's not getting fuel. 🎬 Watch: Diagnosing a Sport Trac no-start caused by the FPDM
- Hesitation or Bucking: Under acceleration, the truck may hesitate, buck, or feel like it's losing power rhythmically.
- Rough Idle: The engine may run poorly or idle erratically.
- Check Engine Light: You may see the code P1233, which points directly to the FPDM being offline or having a fault. 🎬 See how a faulty module causes random surging and stalling
A Common Misdiagnosis
Many owners and shops mistakenly replace the in-tank fuel pump when the FPDM is the actual culprit. Given the module's high failure rate and low cost, it's wise to inspect the FPDM before committing to a more expensive and difficult fuel pump replacement.
Choosing the Right Aftermarket Part
This is one of the rare cases where aftermarket parts are often a better choice than the original equipment (OEM). Aftermarket manufacturers recognized the corrosion flaw and corrected it.
- Tier 1 (Best): Standard Ignition (SMP), Dorman OE-Fix
Brands like Standard Ignition and Dorman offer high-quality replacements. Dorman's "OE-Fix" modules are particularly popular because they come as a kit with improved mounting hardware. These kits include bolts with rubber bushings or spacers that create an essential air gap between the new module and the steel frame. This prevents moisture from being trapped and stops the galvanic corrosion process, permanently fixing the original design flaw. Many of these modules also feature an epoxy coating for extra protection. - Tier 2 (Good): Spectra, Replacement
Spectra and other value-oriented brands also offer reliable replacements. When purchasing, the most important thing is to ensure the new part comes with the updated mounting hardware (spacers). If it doesn't, you must purchase them separately or create your own standoffs to prevent the new module from suffering the same fate.
Pro Tip: Always use the new mounting hardware (spacers) included with your aftermarket module. Installing a new module flat against the frame will lead to the same corrosion failure.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket FPDM | $64.95 - $138.31 |
| New OEM FPDM | $90 - $170 |
| Shop Labor | $60 - $120 |
Frequently Asked Questions (FAQ)
Where is the Fuel Pump Driver Module located?
You can find the FPDM on the frame crossmember located above the spare tire. You will need to lower the spare tire to get easy access to it.
Is this a difficult part to replace myself?
No, this is a very easy DIY repair that most owners can complete in under 30 minutes with basic hand tools. 🎬 Watch this step-by-step guide to replacing your fuel control module It involves lowering the spare tire, unplugging one electrical connector, and removing two bolts. No special programming is needed.
Why is an aftermarket module better than the Ford part?
Aftermarket modules, particularly from brands like Dorman, are often considered superior because they solve the original design flaw. They include spacers to lift the module off the steel frame, preventing the corrosion that causes the original part to fail.
Do I need to disconnect the battery to replace the FPDM?
While the job can be done without it, it is always best practice to disconnect the negative battery terminal before working on any electrical components on your vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5L8Z-9D370-A 4L3Z-9D370-A
Common Aftermarket Part Number: Dorman 590-001
